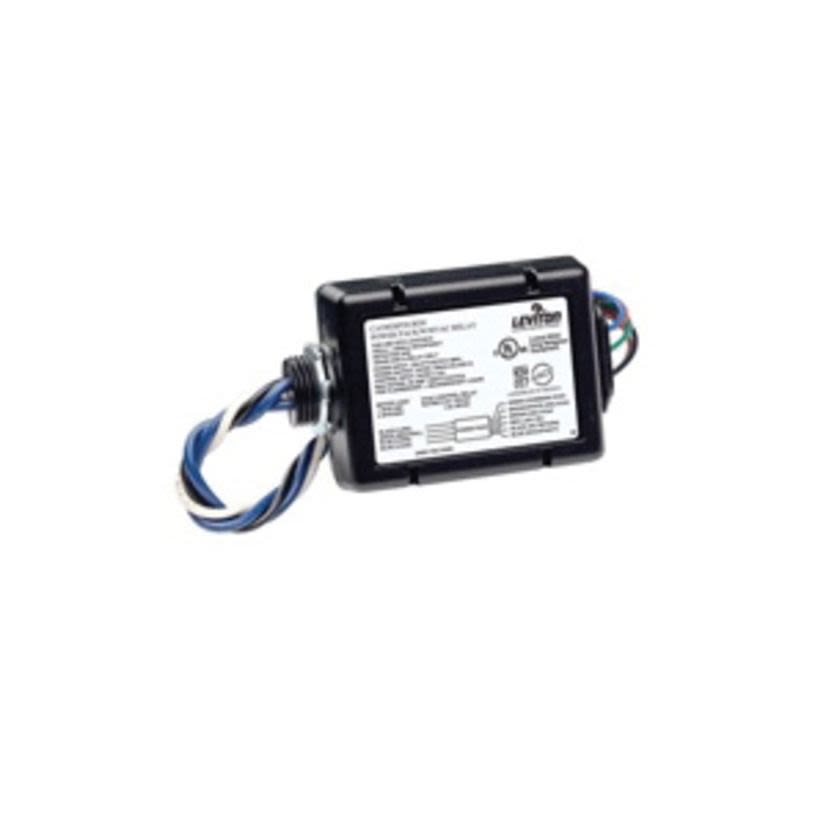

Leviton OSA20-R00
Leviton OSA20-R00 Incandescent Power Pack With Dry Contact HVAC Relay, 277 V AC Input, 24 VDC Output, 15 A, 0.5 A Relay
Leviton OSA20-R00
Leviton OSA20-R00 Incandescent Power Pack With Dry Contact HVAC Relay, 277 V AC Input, 24 VDC Output, 15 A, 0.5 A RelayNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #OSA20-R00
Werner Part #2053888
UPC078477166512
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #OSA20-R00
Werner Part #2053888
UPC078477166512
Product Description
Leviton Power Pack, Incandescent, 277 V AC Input, 24 VDC Output, 15 A, 0.5 A Relay Rating, 32 to 104 deg F Operating, 0 to 90% Non Condensing Humidity, 5 mA at 24 VDC Control Input, 3.811 in Width, 1.432 in D, 2.4 in Height, Plastic, Black
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
ControlInput: 5 mA at 24 VDC
Country of OriginCN
Depth1.432 in
Height2.4 in
Input Voltage277 V AC
ManufacturerLeviton
MaterialPlastic
Output Voltage24 V DC
Package TypeEACH
TypeIncandescent
Type / StyleIncandescent
Width3.811 in
Documents
Applications
Commercial Applications
Warranty
5 Years Limited
Features
- Compact size and light weight allows easy mounting through knockout in junction box (from either inside or outside junction box) with a simple twist-on nut, unit is also approved for mounting in ballast channel cavity
- Single or multiple luminaire control from one or more sensors
- HVAC relay for signaling energy management systems and controls
- Zero crossing circuitry provides increased durability
- 15Arelay can be added to any OSP20 power pack for flexible design, for design flexibility when cost conscious, inexpensive solution for mixed voltage lighting design, used for expanding circuit switching capacity
Specifications
Input: 0 to 90% Non Condensing
