Leviton ODC0S-I1W

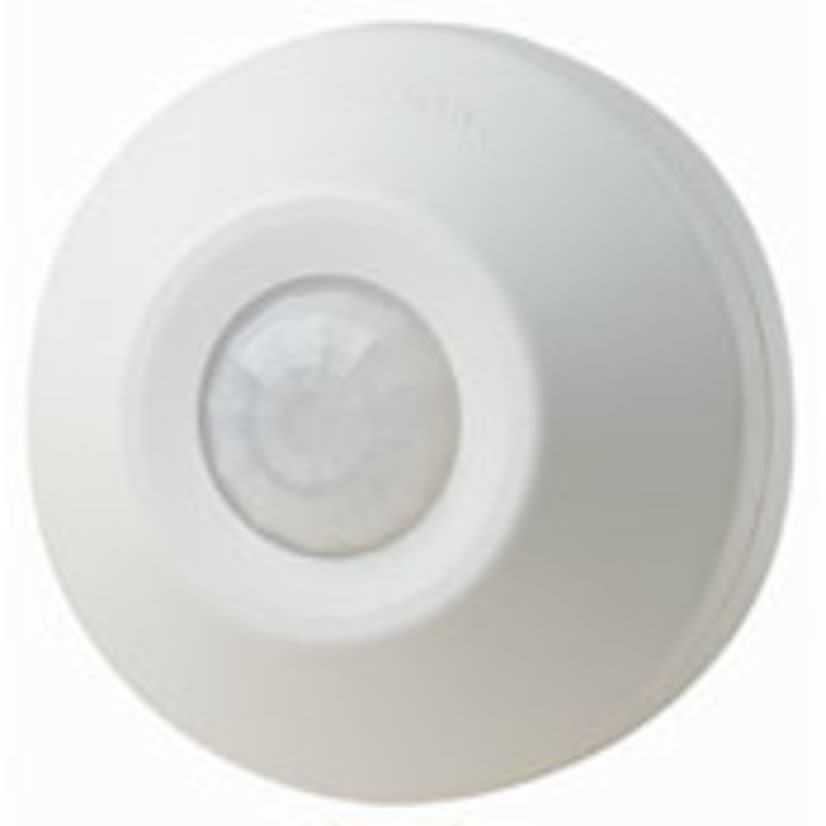

Leviton ODC0S-I1W Self Contained Occupancy Sensor, 120 V AC, PIR Sensor, 530 sq-ft Coverage, 360 deg Viewing, Ceiling Mounting
Leviton ODC0S-I1W
Leviton ODC0S-I1W Self Contained Occupancy Sensor, 120 V AC, PIR Sensor, 530 sq-ft Coverage, 360 deg Viewing, Ceiling MountingIn Stock: 27more info
|
BrandLeviton
MFG #ODC0S-I1W
Werner Part #46535
UPC078477881880
In Stock: 27more info
|
BrandLeviton
MFG #ODC0S-I1W
Werner Part #46535
UPC078477881880
Product Description
Leviton, ODC0S-I1W, Occupancy Sensor, Self Contained, 120 V AC, 1.45 W Power, PIR Sensor, 530 sq-ft Coverage, 360 deg Viewing, 20 s to 15 min Time Delay, Fluorescent/Incandescent Lamp, 60 Hz Response, Automatic On/Automatic Off Control Output, Ceiling Mounting, 0 to 50 deg C, White, 4.3 in Dia x 2.15 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorWhite
ControlAutomatic ON/Automatic OFF
Control OutputAutomatic On/Automatic Off
Country of OriginCN
Coverage530 sq-ft
Dimensions4.3 in Dia x 2.15 in H
GTIN00078477881880
Lamp TypeFluorescent/Incandescent
ManufacturerLeviton
Mounting TypeCeiling
Package TypeEACH
Power Rating1.45 W
Response Frequency60 Hz
Sensor TypePIR
Temperature Rating0 to 50 deg C
Time Delay20 s to 15 min
TypeSelf Contained
Type / StyleSelf Contained
Viewing Angle360 deg
Voltage Rating120 V AC
Documents
Applications
Storage Areas, Small Bathrooms, Retrofit, Copy Rooms, Utility Closets, Small Spaces without Wall Switches and Commercial Applications
Features
- Sensor and switching relay in 1-unit reduces labor and need for additional materials
- Segmented fresnel lens contains 79-segments for optimum sensitivity and detection performance
- A standard A/C toggle switch may be used to provide manual OFF override so that lights may be switched OFF
- Red LED indicator light flashes when sensor detects motion to verify power placement and function of sensor at installation
- Adjustable delayed OFF time setting between 20 sec and 15 min allows custom adjustment for maximum savings, segmented fresnel lens contains 79-segments for optimum sensitivity and detection performance
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA/FCC Certified|CEC Title 20/24 Compliant
Warranty
5 Years Limited
