Leviton ODS10-IDW

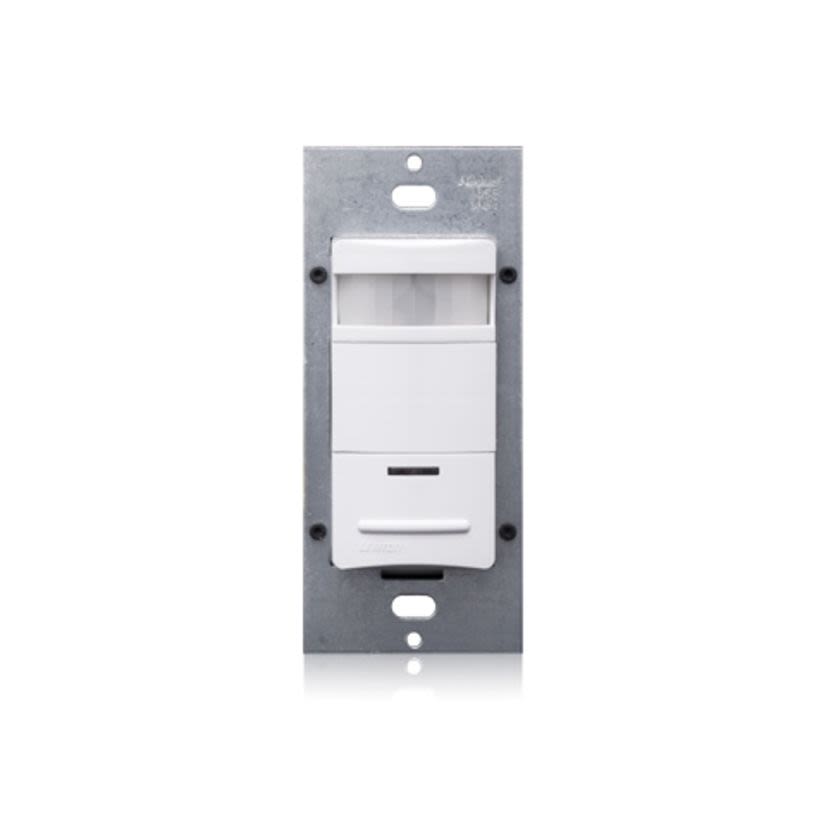

Leviton ODS10-IDW 1-Pole Occupancy Sensor, 120/230/277 V AC, Passive Infrared Sensor, 2100 sq-ft Coverage, 180 deg Viewing, Wall Mounting
Leviton ODS10-IDW
Leviton ODS10-IDW 1-Pole Occupancy Sensor, 120/230/277 V AC, Passive Infrared Sensor, 2100 sq-ft Coverage, 180 deg Viewing, Wall MountingIn Stock: 61more info
|
BrandLeviton
MFG #ODS10-IDW
Werner Part #46543
UPC078477010181
In Stock: 61more info
|
BrandLeviton
MFG #ODS10-IDW
Werner Part #46543
UPC078477010181
Product Description
Leviton, ODS10-IDW, Occupancy Sensor, 1-Pole, 120/230/277 V AC, 100/250 mW Power, Passive Infrared Sensor, 2100 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Time Delay, Fluorescent/Incandescent Lamp, 50/60 Hz Response, Auto Control Output, Wall Mounting, 0 to 50 deg C, White, 1.75 in W x 1.85 in D x 46 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorWhite
ControlManual On/Automatic Off
Control OutputManual On/Automatic Off
Country of OriginCN
Coverage2100 sq-ft
Dimensions1.75 in W x 1.85 in D x 46 in H
GTIN00078477010181
Lamp TypeFluorescent/Incandescent
ManufacturerLeviton
Mounting TypeWall
Package TypeEACH
Power Rating100/250 mW
Response Frequency50/60 Hz
Sensor TypePassive Infrared
Temperature Rating0 to 50 deg C
Time Delay30 s to 30 min
Type1-Pole
Type / Style1-Pole
Viewing Angle180 deg
Voltage Rating120/230/277 V AC
Documents
Applications
Small Offices, Conference Rooms, Classrooms, Lounges and Commercial Applications
Features
- Fits in standard wallbox and replaces 1-pole wall switch, gangable with other units
- Low profile design eliminates obtrusive scanning-device look
- Convenient pushbutton provides manual ON/Off light switching at any time
- Two dual element PIR sensors used to widen detection range
- Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive minor motion area where even slight body movements will be detected
- Vandal-resistant PIR lens
- Horizontal field-of-view may be adjusted between 180 and 60 deg of arc by using integral blinders located on either side of the lens, no masking tape required
- Manual On/auto Off mode for installations where manual On switching is required but auto Off switching is still desired for CEC title T24 energy savings
- To comply with T24, red LED indicator light flashes when sensor detects motion to verify detection is active
- Time delay adjustment for delayed Off time settings of 30 sec (for walking test), 10, 20 and 30 min, allows customized adjustments to maximum energy savings
- Light sensor adjustable ambient light override ranges from approximately 20 to 5000+ LUX to prevent lights from turning On automatically during periods of ample natural light, increasing energy savings
- Light sensor enables the load hold Off feature once level has been set
- Vacancy confirmation when the time out expires and the lights turns Off, a 30 sec vacancy confirmation exists to turn the lights back ON
- False detection circuitry
- Presentation mode feature for slide or film presentations allows pushbuttons to turn lights Off and keep them Off while the room is occupied
- 1-unit can be used for 120 to 277 VAC lighting
- Compatible with both electronic and magnetic ballasts
- Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
- Exclusive Leviton high inrush stability (HIS) circuitry, specifically designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
- No neutral design is optional for retrofit applications
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|NOM Certified|FCC Certified|CEC Title 20/24 Compliant
