Advance IMH150HBLSM

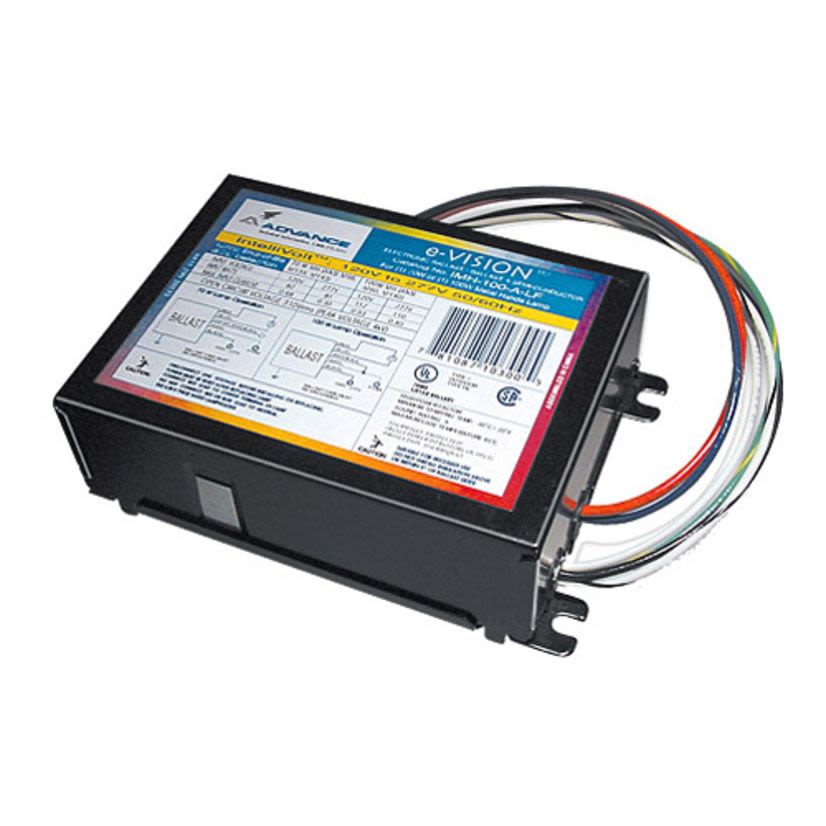

Advance e-Vision IMH150HBLSM Electronic HID Fixed Output Metal Halide Ballast, 150 W Lamp, 120 to 277 V AC, Pulse, 1 Ballast Factor
Advance IMH150HBLSM
Advance e-Vision IMH150HBLSM Electronic HID Fixed Output Metal Halide Ballast, 150 W Lamp, 120 to 277 V AC, Pulse, 1 Ballast FactorNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Advance e-Vision Metal Halide Ballast, Electronic HID Fixed Output, 150 W Lamp, 161 W Wattage, 120 to 277 V AC, 0.6 A, 50/60 Hz Frequency, Pulse Start, -20 deg F Minimum Starting, Total Harmonic Distortion: 15 %, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI M102/M142 Ballast Grade, NEMA 4C Enclosure, 85 deg C, Surface Mounting, Metal, 6.4 in L x 3.7 in W x 1.5 in H Dimensions
Attributes
Documents
Features
Attributes
Ballast Factor1
Ballast GradeANSI M102/M142
Country of OriginMX
Dimensions6.4 in L x 3.7 in W x 1.5 in H
Enclosure TypeNEMA 4C
Frequency Rating50/60 Hz
Lamp TypeHID Metal Halide
Lamp Wattage150 W
ManufacturerSignify
MaterialMetal
Mounting TypeSurface
Number of Lamps1
Package TypeEACH
Power Factor0.9
Start TypePulse
Temperature Range85 deg C
Total Harmonic Distortion15 %
TypeElectronic HID Fixed Output
Type / StyleElectronic HID Fixed Output
Voltage Rating120 to 277 V AC
Wattage161 W
Features
- Low frequency electronic HID ballasts such as the Philips Advance e-Vision line constantly measure and adjust the wattage, optimizing delivery of the ceramic lamps superior color properties
- This makes ceramic metal halide operated by e-Vision ballasts the premier choice for many applications previously illuminated by either tungsten halogen or incandescent sources, such as retail lighting
- Bottom leads with studs
