Advance 71A8773001

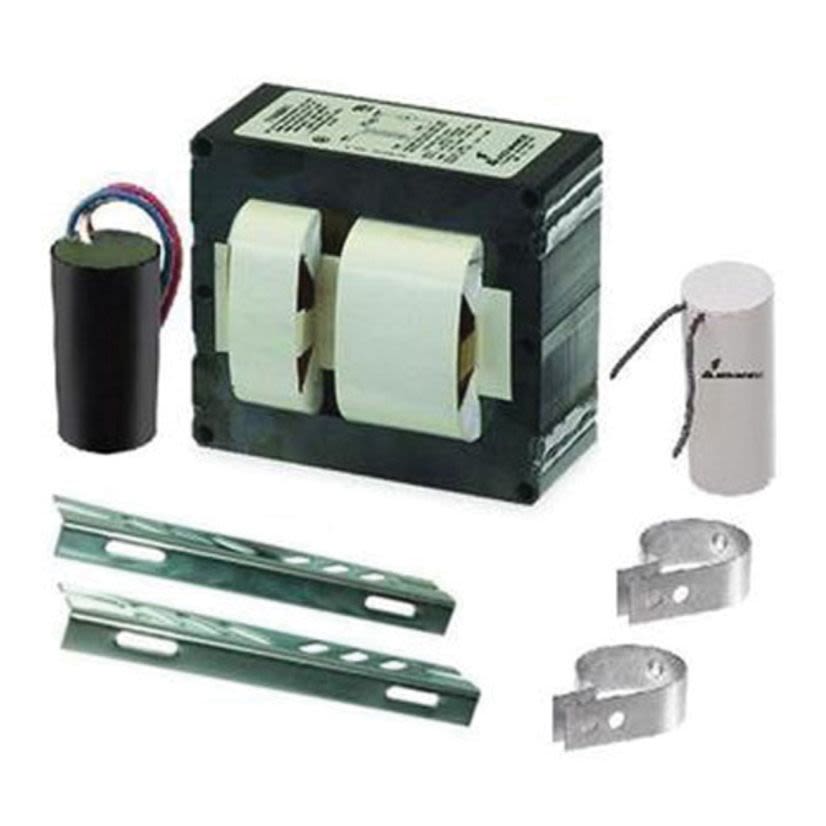

Advance 71A8773001 HID Magnetic High Pressure Sodium Ballast, 1000 W, 120/208/240/277 V AC, Pulse, 1 Ballast Factor
Advance 71A8773001
Advance 71A8773001 HID Magnetic High Pressure Sodium Ballast, 1000 W, 120/208/240/277 V AC, Pulse, 1 Ballast FactorNon-stock product. Available to order - lead time may vary.
BrandAdvance
MFG #71A8773001
Werner Part #14067
UPC781087877319
Non-stock product. Available to order - lead time may vary.
BrandAdvance
MFG #71A8773001
Werner Part #14067
UPC781087877319
Product Description
Advance High Pressure Sodium Ballast, HID Magnetic, 1000 W Lamp, 1100 W Wattage, 120/208/240/277 V AC, 9.5/5.5/4.75/4.15 A, 60 Hz Frequency, Pulse Start, -40 deg F Minimum Starting, Power Factor: 1, No Dimmable, 1 Lamp, Thermal Protection: Class P, 71A8773 Lamp Base, Ballast Factor: 1, ANSI S52 Ballast Grade, 6 in L x 5-3/4 in W x 4-1/4 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Ballast Factor1
Ballast GradeANSI S52
Country of OriginCN
Dimensions6 in L x 5-3/4 in W x 4-1/4 in H
DimmableNo
Frequency Rating60 Hz
Lamp Base Type71A8773
Lamp TypeHigh Pressure Sodium
Lamp Wattage1000 W
ManufacturerSignify
Number of Lamps1
Package TypeEACH
Power Factor1
Start TypePulse
Thermal ProtectionClass P
TypeHID Magnetic
Type / StyleHID Magnetic
Voltage Rating120/208/240/277 V AC
Wattage1100 W
Applications
Lighting Luminaire Component and Outdoor Applications
Features
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- 26 Mfd capacitor
- 4.8/2.7/2.4/2.2 A input current (open circuit), 6.4/3.8/3.2/2.8 A input current (starting), 5.2 to 7.8/3 to 4.5/2.6 to 3.8/2.25 to 3.4 A input current (short circuit), 9.5/5.5/4.75/4.15 A input current (nominal)
- 4-1/4 x 6 in core
- 1-3/4 in Dia x 4-1/4 in H oval capacitor
- Ballast replacement kit with oil filled capacitor
- UL insulation class H of 180 deg C
