Advance 71A7907001DB

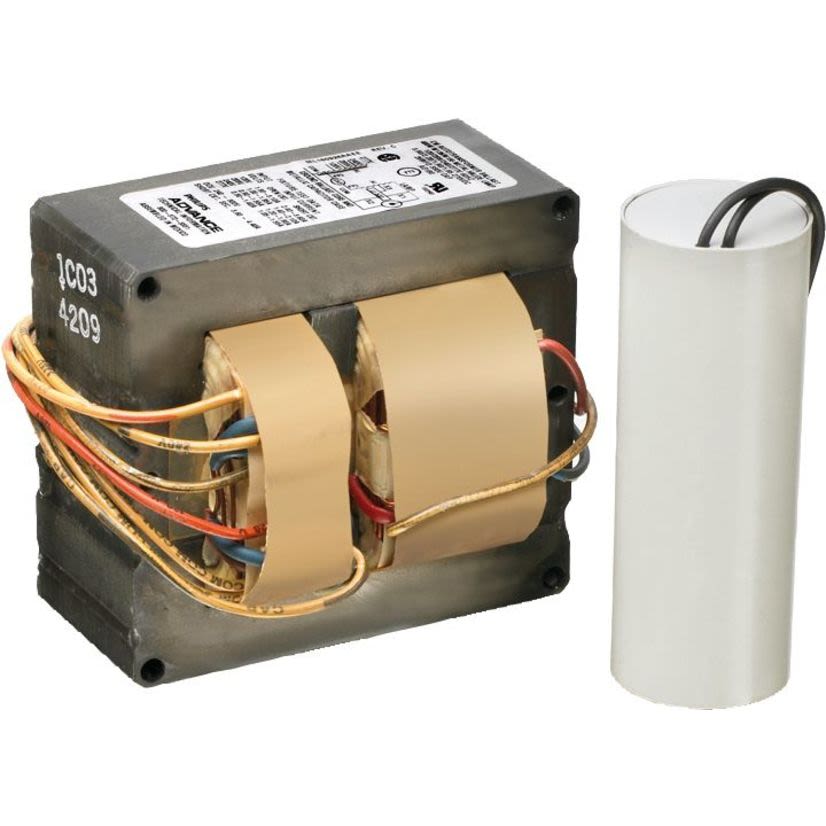

Advance 71A7907001DB Core/Coil HID Magnetic High Pressure Sodium Ballast, 70 W, 120 V AC, Pulse, 1 Ballast Factor
Advance 71A7907001DB
Advance 71A7907001DB Core/Coil HID Magnetic High Pressure Sodium Ballast, 70 W, 120 V AC, Pulse, 1 Ballast FactorNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Advance High Pressure Sodium Ballast, Core/Coil HID Magnetic, 70 W Lamp, 86 W Wattage, 120 V AC, 0.75 A, 60 Hz Frequency, Pulse Start, -40 deg F Minimum Starting, Power Factor: 1, No Dimmable, 1 Lamp, Thermal Protection: Class P, Ballast Factor: 1, ANSI S62 Ballast Grade, 221 deg F, 2.65 in L x 2.9 in W x 2.2 in H Dimensions
Attributes
Documents
Applications
Features
Included
Attributes
Ballast Factor1
Ballast GradeANSI S62
Country of OriginCN
Dimensions2.65 in L x 2.9 in W x 2.2 in H
DimmableNo
Frequency Rating60 Hz
Height25.4000 cm
Lamp Wattage70 W
Length25.4000 cm
ManufacturerSignify
Number of Lamps1
Package TypeEACH
Power Factor1
Temperature Range221 deg F
Thermal ProtectionClass P
TypeCore/Coil HID Magnetic
Voltage Rating120 V AC
Wattage86 W
Width25.4000 cm
Applications
Lighting Luminaire Component and Outdoor Applications
Features
- 0.5 mm L wire strip
- Stranded wire
- R-HPF circuit
- 2-5/8 x 2-3/16 in core
- 12 in L wire by color
- Magnetic HID ballast
- 125 deg C igniter temperature
- 28 Mfd, 120 VAC, 105 deg C capacitor
- 1.65 in Dia x 2.75 in capacitor
- 1.3 A (open circuit), 0.9 A (starting), 1.9 to 2.9 A (short circuit), 1.9 to 2.9 A secondary short circuit current
- Constant wattage deviation within trapezoid
- Remote wiring configuration allowed
- 2 ft ballast lamp distance remote wiring
Included
Dry Film Capacitor, Igniter and Bracket Kit
