Advance 71A5590500D

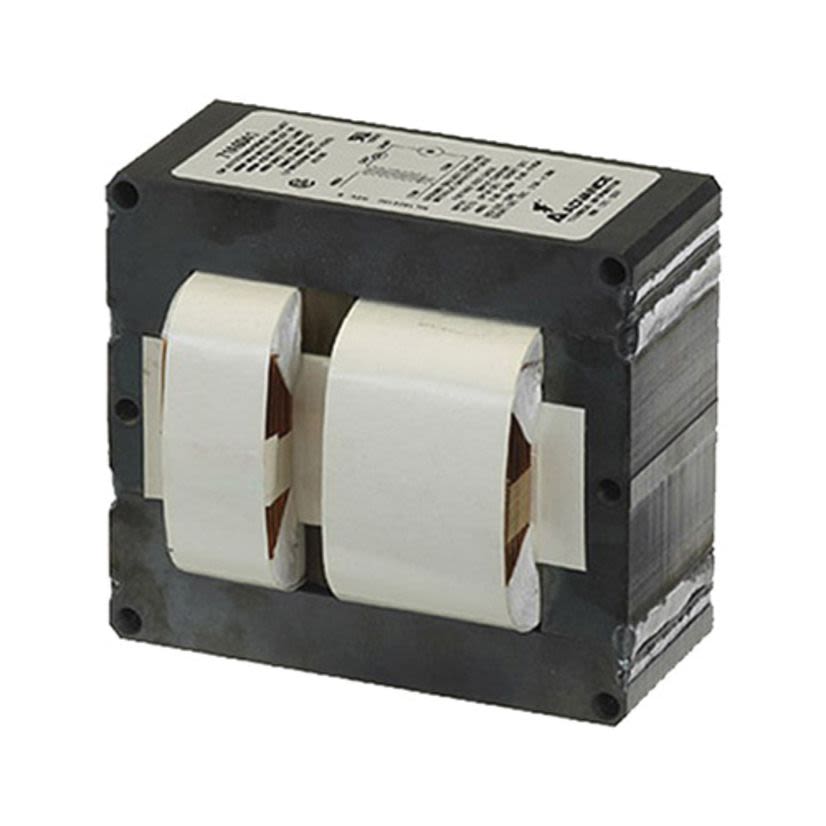

Advance 71A5590500D Magnetic HID Ballast, HID Lamp, 175/150 W Lamp, 120/208/240/277 VAC, 1 Ballast Factor
Advance 71A5590500D
Advance 71A5590500D Magnetic HID Ballast, HID Lamp, 175/150 W Lamp, 120/208/240/277 VAC, 1 Ballast FactorNon-stock product. Available to order - lead time may vary.
BrandAdvance
MFG #71A5590500D
Werner Part #14007
UPC781087097892
Non-stock product. Available to order - lead time may vary.
BrandAdvance
MFG #71A5590500D
Werner Part #14007
UPC781087097892
Product Description
Advance, 71A5590500D, HID Ballast, Magnetic, HID Lamp, 175/150 W Lamp, 210 W Wattage, 120/208/240/277 VAC, 1.8/1.04/0.9/0.8 A, 60 Hz Frequency, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamps, Thermal Protection: Class P, 71A5590 Lamp Base, Ballast Factor: 1, ANSI M57/H39/M107/M57 Ballast Grade, NEMA 1B Enclosure, 4 in L x 3.95 in W x 2.9 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Ballast Factor1
Ballast GradeANSI M57/H39/M107/M57
Country of OriginCN
Dimensions4 in L x 3.95 in W x 2.9 in H
DimmableNo
Enclosure TypeNEMA 1B
Frequency Rating60 Hz
Lamp Base Type71A5590
Lamp TypeHID
Lamp Wattage175/150 W
ManufacturerSignify
Number of Lamps1
Package TypeEACH
Power Factor0.9
Start TypeProbe
Thermal ProtectionClass P
TypeMagnetic
Type / StyleMagnetic
Voltage Rating120/208/240/277 V AC
Wattage210 W
Applications
Lighting Luminaire Component and Outdoor Applications
Features
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- Core and coil ballast with dry film capacitor
- 10 Mfd capacitor
- 1.78/1.08/0.93/0.81 A input current (open circuit), 1.26/0.7/0.61/0.53 A input current (starting), 1.06 to 1.59/0.6 to 0.9/0.52 to 0.78/0.45 to 0.67 A input current (short circuit), 1.8/1.04/0.9/0.8 A input current (nominal)
- 3 x 4 in (2 LW) core
- 1.45 in Dia x 3.75 in H oval capacitor
- UL insulation class H of 180 deg C
