Advance ICN3TTP40SC35I

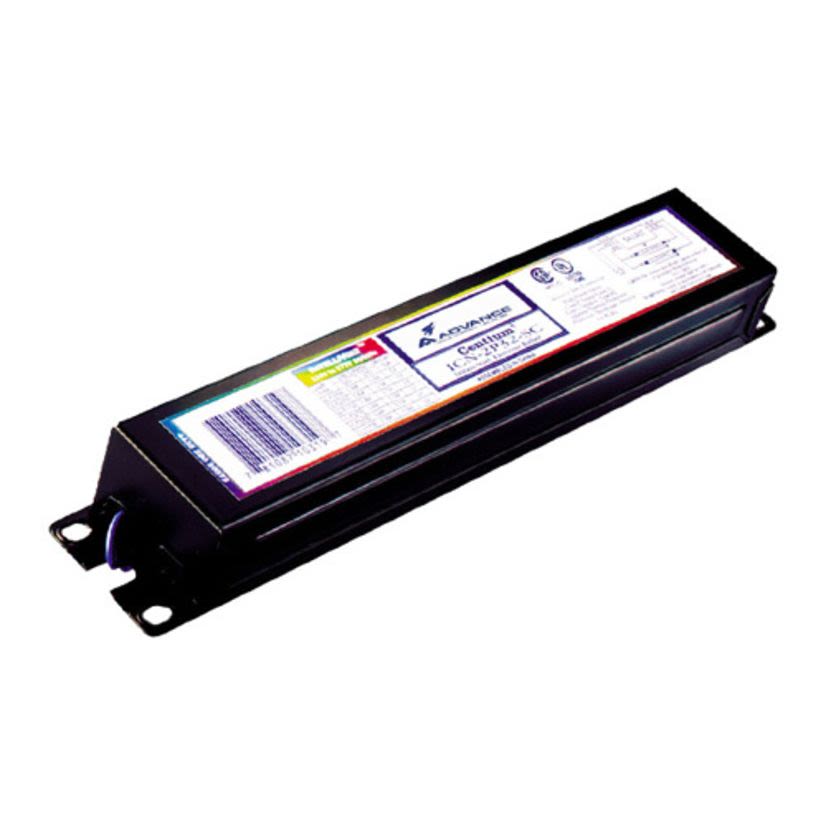

Advance Centium ICN3TTP40SC35I Electronic Compact Fluorescent Ballast, 40 W Lamp, 120 to 277 V AC, Instant, 0.88 Ballast Factor
Advance ICN3TTP40SC35I
Advance Centium ICN3TTP40SC35I Electronic Compact Fluorescent Ballast, 40 W Lamp, 120 to 277 V AC, Instant, 0.88 Ballast FactorNon-stock product. Available to order - lead time may vary.
BrandAdvance
MFG #ICN3TTP40SC35I
Werner Part #3800135
UPC781087065099
Non-stock product. Available to order - lead time may vary.
BrandAdvance
MFG #ICN3TTP40SC35I
Werner Part #3800135
UPC781087065099
Product Description
Advance Centium Compact Fluorescent Ballast, Electronic, 40 W Lamp, 99/97 W Wattage, 120 to 277 V AC, 0.35 to 0.83 A, 60 Hz Frequency, Instant Start, Total Harmonic Distortion: 10 %, Power Factor: 0.98, 3 Lamps, 4-Pin 2G11 Lamp Base, Ballast Factor: 0.88, 70 deg C, Metal, 9.5 in L x 1.7 in W x 1.18 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Ballast Factor0.88
Country of OriginMX
Dimensions9.5 in L x 1.7 in W x 1.18 in H
Frequency Rating60 Hz
Lamp Base Type4-Pin 2G11
Lamp TypeCFL
Lamp Wattage40 W
ManufacturerSignify
MaterialMetal
Number of Lamps3
Package TypeEACH
Power Factor0.98
Start TypeInstant
Temperature Range70 deg C
Total Harmonic Distortion10 %
TypeElectronic
Type / StyleElectronic
Voltage Rating120 to 277 V AC
Wattage99/97 W
Applications
Retail, Commercial, Institutional and Industrial, School, Office, Specialty and Department Stores, Warehouses and Manufacturing Applications
Features
- Long twin tube, parallel lamp connection
- Blue color label identification
- 20 to 24 dB average ambient noise level
- High power factor
- IntelliVolt technology (120 to 277 VAC)
- Lamp EOL protection
- UL type CC rated - Anti-arcing circuitry provides greater flexibility to meet end user application requirements
- Auto-restrike capability - eliminates the need to reset power mains after failed lamps are replaced
- 0 deg F starting capability - suitable for cold temperature applications
