Advance ICF2S42M2LD35M
Advance SmartMate ICF2S42M2LD35M Electronic Compact Fluorescent Ballast, 42 W Lamp, 120 to 277 V AC, Programmed, 0.97 Ballast Factor
Advance ICF2S42M2LD35M
Advance SmartMate ICF2S42M2LD35M Electronic Compact Fluorescent Ballast, 42 W Lamp, 120 to 277 V AC, Programmed, 0.97 Ballast FactorNon-stock product. Available to order - lead time may vary.
BrandAdvance
MFG #ICF2S42M2LD35M
Werner Part #170071
UPC781087107447
Non-stock product. Available to order - lead time may vary.
BrandAdvance
MFG #ICF2S42M2LD35M
Werner Part #170071
UPC781087107447
Product Description
Advance SmartMate Compact Fluorescent Ballast, Electronic, 42 W Lamp, 93 W Wattage, 120 to 277 V AC, 0.33 to 0.78 A, 50/60 Hz Frequency, Programmed Start, Total Harmonic Distortion: 10 %, Power Factor: 0.98, 2 Lamps, GX24Q 4-Pin Lamp Base, Ballast Factor: 0.97, 75 deg C, Metal, 4.55 in L x 3 in W x 1.29 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Ballast Factor0.97
Country of OriginUS

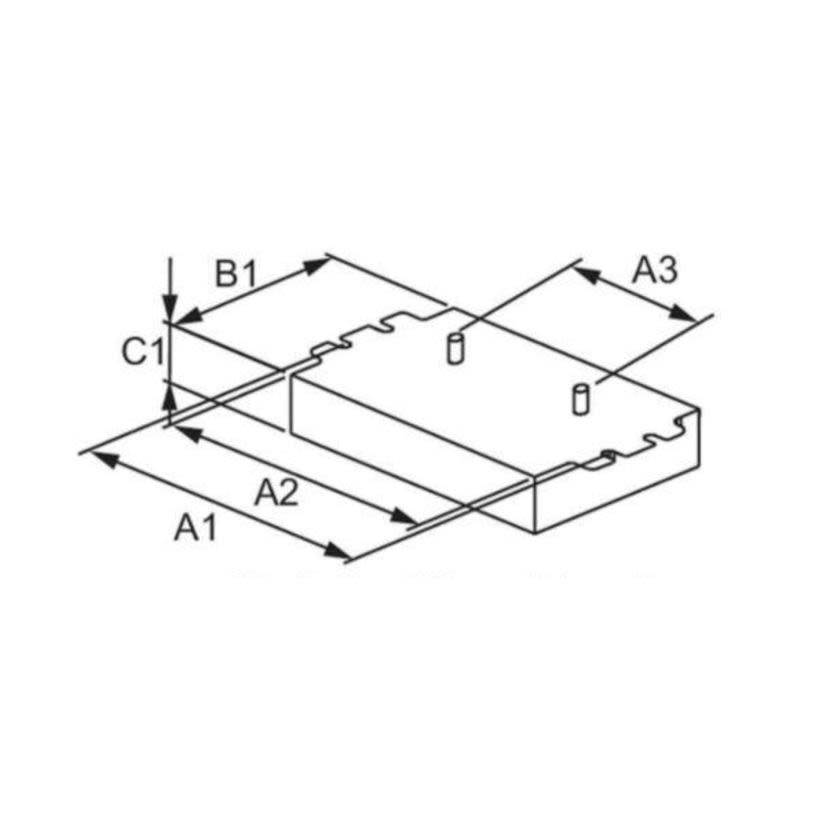

Dimensions4.55 in L x 3 in W x 1.29 in H
Frequency Rating50/60 Hz
Lamp Base TypeGX24Q 4-Pin
Lamp TypeCFL
Lamp Wattage42 W
ManufacturerSignify
MaterialMetal
Number of Lamps2
Package TypeEACH
Power Factor0.98
Start TypeProgrammed
Temperature Range75 deg C
Total Harmonic Distortion10 %
TypeElectronic
Type / StyleElectronic
Voltage Rating120 to 277 V AC
Wattage93 W
Applications
Restaurant, Reception Area, Conference, Meeting Room, Hotel and Convention Center Ballroom Applications
Features
- Series lamp connection
- Blue color label identification
- 20 to 24 dB average ambient noise level
- High power factor
- Length mounting feet with SmartMate dual entry color coded connectors
- IntelliVolt technology (120 to 277 VAC)
- Color coded connectors
- 1 or 2-lamp operation
- Operates multiple lamp wattages
- Reduces SKU requirements and inventory costs
- Enhances wiring accuracy and ease of assembly/installation
- Eliminates interference with infrared systems, anti-theft devices or other electronic equipment
