Advance REZ2T42M3BS35M
Advance Mark 10 Powerline REZ2T42M3BS35M Electronic Dimmable Compact Fluorescent Ballast, 42 W Lamp, 120 VAC, Programmed, 0.05 to 1 Ballast Factor
Advance REZ2T42M3BS35M
Advance Mark 10 Powerline REZ2T42M3BS35M Electronic Dimmable Compact Fluorescent Ballast, 42 W Lamp, 120 VAC, Programmed, 0.05 to 1 Ballast FactorNon-stock product. Available to order - lead time may vary.
BrandAdvance
MFG #REZ2T42M3BS35M
Werner Part #162433
UPC781087114582
Non-stock product. Available to order - lead time may vary.
BrandAdvance
MFG #REZ2T42M3BS35M
Werner Part #162433
UPC781087114582
Product Description
Advance Mark 10 Powerline Dimmable Compact Fluorescent Ballast, Electronic, 42 W Lamp, 20 to 96 W Wattage, 120 VAC, 0.82 A, 60 Hz Frequency, Programmed Start, Total Harmonic Distortion: 10 %, Power Factor: 0.98, Yes Dimmable, 2 Lamps, GX24Q 4-Pin Lamp Base, Ballast Factor: 0.05 to 1, NEMA 36 Enclosure, 70 deg C, Metal, 6.28 in L x 3 in W x 1.29 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Ballast Factor0.05 to 1
Country of OriginUS

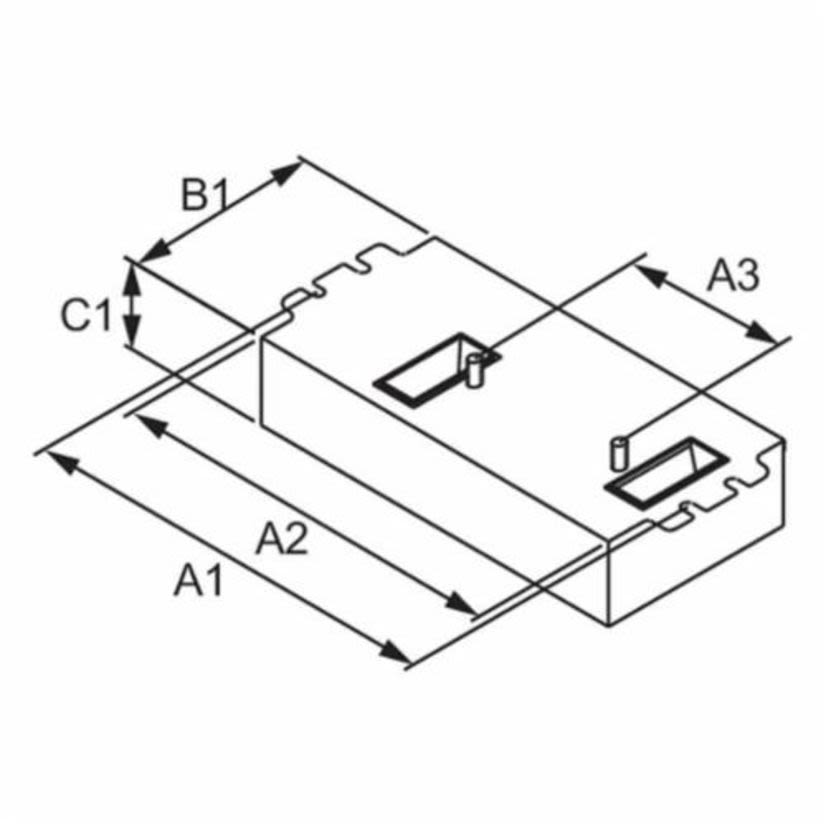

Dimensions6.28 in L x 3 in W x 1.29 in H
DimmableYes
Enclosure TypeNEMA 36
Frequency Rating60 Hz
Lamp Base TypeGX24Q 4-Pin
Lamp Type4-Pin CFL
Lamp Wattage42 W
ManufacturerSignify
MaterialMetal
Number of Lamps2
Package TypeEACH
Power Factor0.98
Start TypeProgrammed
Temperature Range70 deg C
Total Harmonic Distortion10 %
TypeElectronic
Type / StyleElectronic
Voltage Rating120 V AC
Wattage20 to 96 W
Applications
Conference Rooms, Private Offices, Auditoriums, Architectural Cove, Auditoriums, Educational Facilities, Hotels, Restaurants and Department Stores Applications
Features
- Triple CFL series lamp connection
- 112 to 127 VAC applied voltage limits
- Yellow color label identification
- 20 to 24 dB average ambient noise level
- High power factor
- Bottom mounting studs with single entry color coded connectors
- Available in linear fluorescent and 4-pin compact fluorescent models
- Full range continuous dimming (100% light output down to 5% - T5HO to 1%)
- Compatible with controls from numerous manufacturers without using separate control leads - Powerline dimming interface
- Ideal for frequent switching applications such as occupancy sensors and daylight harvesting - programmed start operation
