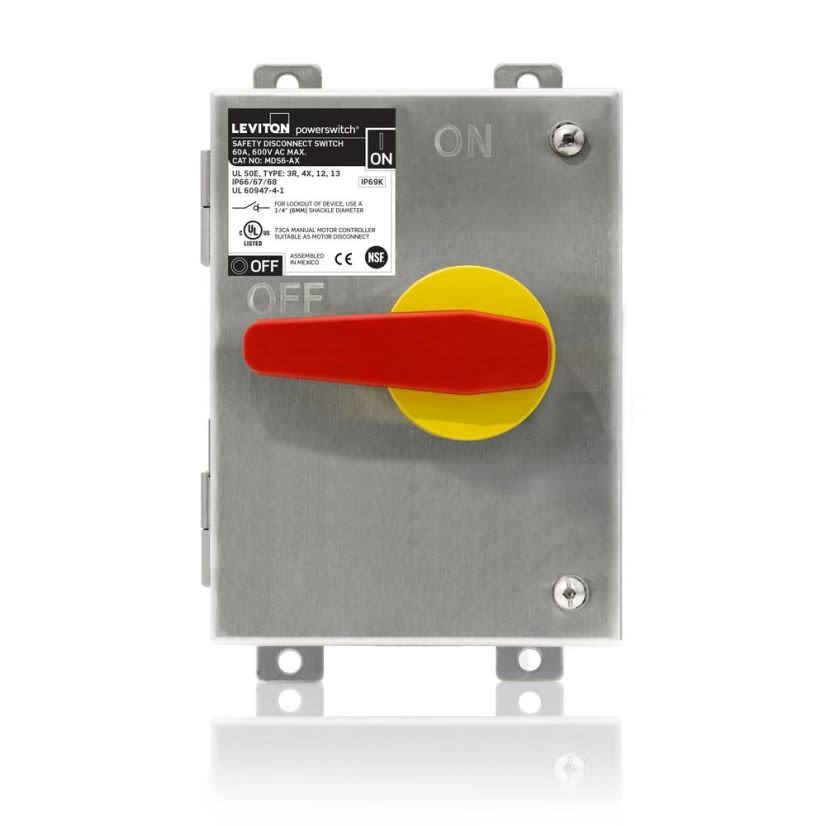

Leviton MDS6-AC
Leviton Powerswitch MDS6-AC Metallic Non-Fused Safety Disconnect Switch With Factory Installed Auxiliary Contact, 600 V AC, 60 A, 20 hp, 40 hp
Leviton MDS6-AC
Leviton Powerswitch MDS6-AC Metallic Non-Fused Safety Disconnect Switch With Factory Installed Auxiliary Contact, 600 V AC, 60 A, 20 hp, 40 hpOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Leviton Powerswitch Safety Disconnect Switch, Metallic Non-Fused, 600 V AC, 60 A, 20 hp, 40 hp, 1/3 Phase, 100 kA Short Circuit, NEMA 3R/4X/12/13/250/IP66/IP67/IP68/IP69K Enclosure, -40 to 75 deg C, 10.75 in H x 6.74 in W x 6.11 in D Dimensions, 304 Stainless Steel
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Country of OriginMX
Dimensions10.75 in H x 6.74 in W x 6.11 in D
Enclosure TypeNEMA 3R/4X/12/13/250/IP66/IP67/IP68/IP69K
Horsepower20 hp, 40 hp
ManufacturerLeviton
Material304 Stainless Steel
Phase1/3
Short Circuit Current Rating100 kA
Temperature Rating-40 to 75 deg C
TypeMetallic Non-Fused
Documents
Applications
For superior performance in food and beverage processing, manufacturing, marinas and shipyards and OEM applications
Features
- Type 304 stainless steel resists heat, corrosion and abuse
- Watertight, dust tight, submersible and suitable for high pressure and high temperature washdown
- NSF certified for hygiene requirements in food and beverage processing
- Overmold handle provides firm grip, durability and withstands washdown
- Handle accommodates 3-padlocks for OSHA compliant lockout/tagout
- Removable cover door makes installation and servicing simple and quick
- 3/4 in standoff from mounting surface allows for easy cleaning
Specifications
- cULus Listed
- UL 60947-4-1
- UL 508
- CSA C22.2 File No. 60947-4-1
- CE Certified
- IEC 60529
- NOM-ANCE Certified
- UL 50E
- NSF Certified
- OSHA Compliant
Warranty
3 years Limited
