Leviton 430MF5WLEV

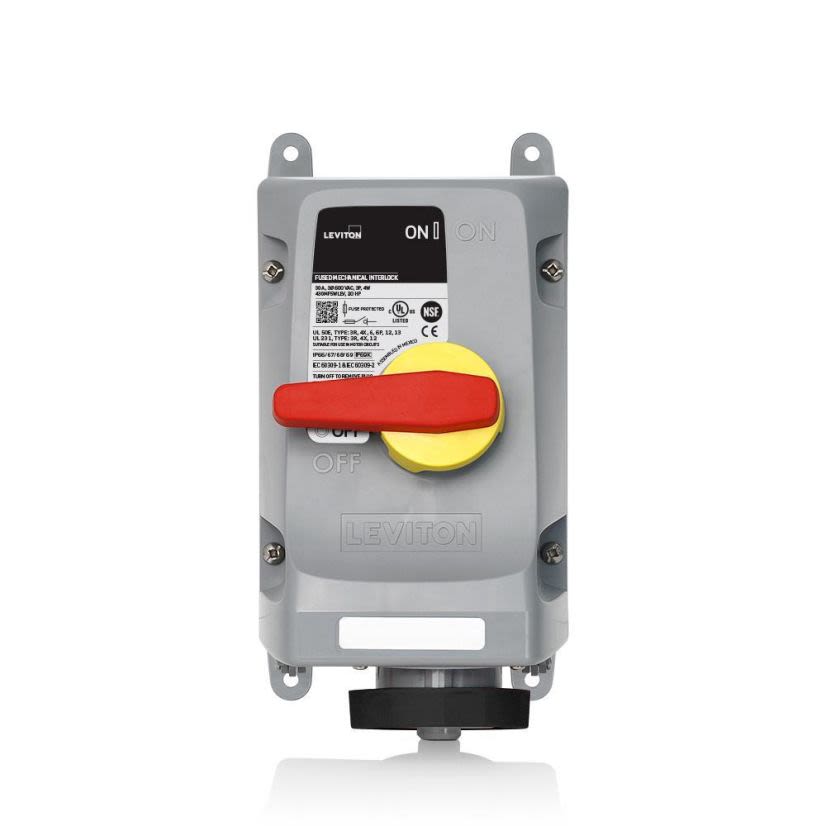

Leviton 430MF5WLEV Fused Watertight Pin and Sleeve Mechanical Interlock, 600 V AC, 30 A, 3 Poles, 4 Wires
Leviton 430MF5WLEV
Leviton 430MF5WLEV Fused Watertight Pin and Sleeve Mechanical Interlock, 600 V AC, 30 A, 3 Poles, 4 WiresNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #430MF5WLEV
Werner Part #4390944
UPC078477251409
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #430MF5WLEV
Werner Part #4390944
UPC078477251409
Product Description
Leviton Pin and Sleeve Mechanical Interlock, Fused Watertight, Series: LEV, 600 V AC, 30 A, 20 hp Power, 3 Pole, 4 Wires, NEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K Enclosure, Threaded Mounting, PBT/Polycarbonate, Black, 12.16 in H x 8.86 in W x 8.29 in D Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorBlack
Country of OriginMX
Dimensions12.16 in H x 8.86 in W x 8.29 in D
Horsepower10 hp
ManufacturerLeviton
MaterialPBT/Polycarbonate
Mounting TypeThreaded
Number of Poles3
Number of Wires4
Package Height8.88 in
Package Length12.75 in
Package TypeEACH
Package Weight7 lbs
Package Width7.5 in
Phase3-Phase
SeriesLEV
TypeFused Watertight
Voltage Rating600 V AC
Applications
Food and Beverage Facilities, Washdown and Outdoor Applications
Features
- Designed to simplify your installation, endure the harshest environments and improve safety and productivity
- Bottom hinged cover design makes installation and maintenance quicker and easier
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
- NSF certified sanitary design trusted for use in food and beverage facilities
Specifications
- CE Certified
- CSA C22.2 No. 94.1-07
- IEC 60309-1
- IEC 60309-2
- IEC 60309-4
- UL 231
- UL 1682
- UL 1686
- UL 50
- UL 50E
- UL 60947-4-1
- UL 60947-1
- UL 746
- UL 94 V-0 Flammability Rating
Warranty
5 years Limited
