Cutler-Hammer Series TRNP24AD

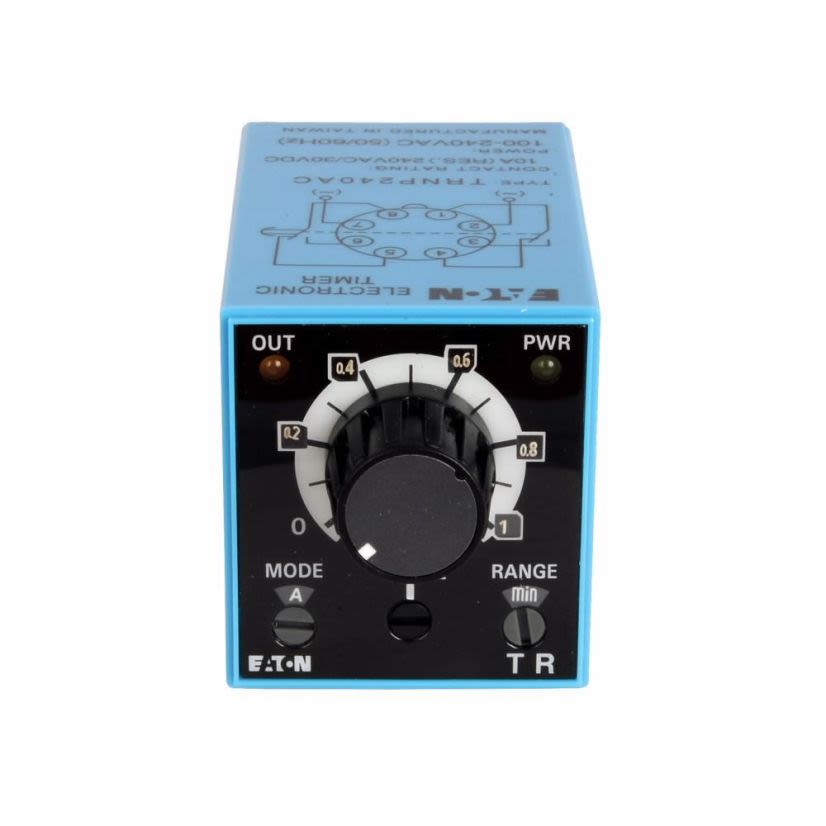

EATON TRNP24AD Timing Relay, 0.1 s to 600 hr Setting, 240 V AC/30 V DC, 8 Pin, 2 Form C DPDT Contact, 2 Poles
Cutler-Hammer Series TRNP24AD
EATON TRNP24AD Timing Relay, 0.1 s to 600 hr Setting, 240 V AC/30 V DC, 8 Pin, 2 Form C DPDT Contact, 2 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #TRNP24AD
Werner Part #2372770
UPC782116149865
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #TRNP24AD
Werner Part #2372770
UPC782116149865
Product Description
EATON Timing Relay, Series: TR Series, Operation Mode: Power Triggered, 240 V AC/30 V DC, 10 A, 1/3 hp, 2 Pole, 8 Pins, 2 Form C DPDT, 0.1 s to 600 hr, 24 V AC/DC Coil, Octal/Pin, Plug-In Mount, 3.07 in L x 1.42 in W x 1.58 in H
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Coil Voltage24 V AC/DC
Contact Form2 Form C DPDT
Country of OriginUS
Dimensions3.07 in L x 1.42 in W x 1.58 in H
Horsepower1/3 hp
ManufacturerEaton
Mounting TypePlug-In
Number of Poles2
Package TypeEACH
SeriesTR Series
Applications
Automation and Logic Control Equipment Applications
Features
- 20 time ranges and 10 timing functions
- Time delays from 0.1 s to 600 hr
- High repeat accuracy of +/-0.2%
- Standard 8 or 11-pin and 11-blade termination
- On delay control signal start, leading edge OFF, flasher-control signal start, pause or on first, signal on/OFF delay, single shot leading edge with control input
- 50/60 Hz frequency rating
- Delayed output
Specifications
- CE Marked
- CSA Certified
- TUV Certified
- UL Listed
- cULus Listed
Warranty
18 months
