Cutler-Hammer Series TMR6X00120

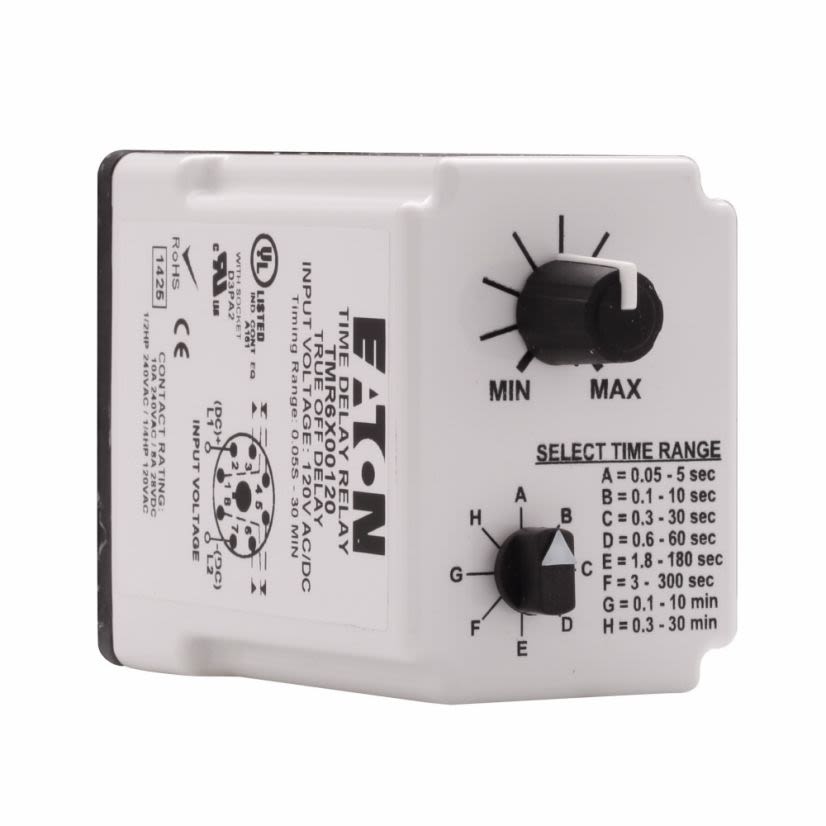

EATON TMR6X00120 Programmable Timing Relay With Trip Unit, 0.05 s to 30 min Setting, 120 V AC/DC, 8 Pin, 2 Form C DPDT Contact, 2 Poles
Cutler-Hammer Series TMR6X00120
EATON TMR6X00120 Programmable Timing Relay With Trip Unit, 0.05 s to 30 min Setting, 120 V AC/DC, 8 Pin, 2 Form C DPDT Contact, 2 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #TMR6X00120
Werner Part #3890388
UPC786685359274
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #TMR6X00120
Werner Part #3890388
UPC786685359274
Product Description
EATON Timing Relay, Programmable, Series: TMR6, Operation Mode: True OFF Delay, 120 V AC/DC, 2 Pole, 8 Pins, 2 Form C DPDT Contact Form, 0.05 s to 30 min Time Setting, Octal Electrical Connections, -18 to 150 deg F, 3.5 in L x 1.7 in W x 2.4 in H Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Contact Form2 Form C DPDT
Country of OriginUS
Dimensions3.5 in L x 1.7 in W x 2.4 in H
ManufacturerEaton
Number of Poles2
Operation ModeTrue OFF Delay
Operator TypeMode: True OFF Delay
Package TypeEACH
SeriesTMR6
Setting Time0.05 s to 30 min
Temperature Rating-18 to 150 deg F
Type / StyleProgrammable
Applications
Automation, Logic Control Equipment, Commercial, Institutional Buildings, Structures, Controls and Power Distribution Applications
Included
Frame, Standard Terminals and Mounting Hardware
Warranty
18 Months
Features
- Provides off delay function without requiring input voltage during off time delay
- Duplicates operation of pneumatic off delay timers
- Each unit has eight timing ranges built-in, covering 0.05 s to 30 min
- Selecting a range is easy using a rotary switch (no math is required or DIP switches to set)
- Uses industry standard 8 pin octal socket
- 2000 VAC between poles dielectric strength
