Cutler-Hammer Series 10250T15113

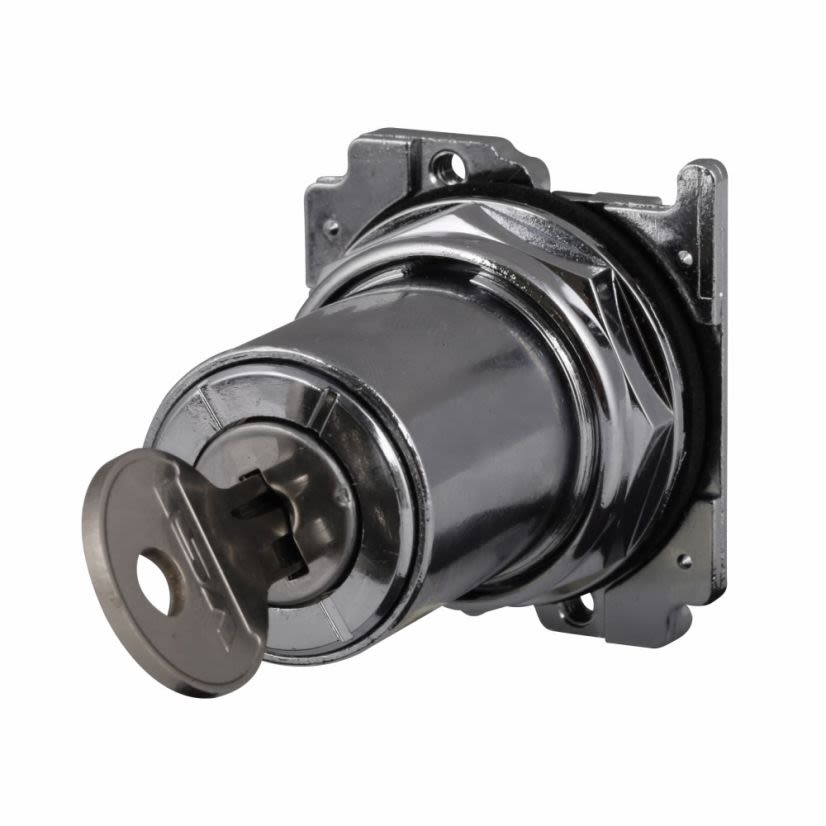

EATON 10250T15113 Heavy Duty Oiltight/Watertight Non-Illuminated Selector Switch Operator With Cam Code 1, 30.5 mm, 2 Positions
Cutler-Hammer Series 10250T15113
EATON 10250T15113 Heavy Duty Oiltight/Watertight Non-Illuminated Selector Switch Operator With Cam Code 1, 30.5 mm, 2 PositionsIn Stock: 11more info
|
BrandCutler-Hammer Series
MFG #10250T15113
Werner Part #2370521
UPC782113227498
In Stock: 11more info
|
BrandCutler-Hammer Series
MFG #10250T15113
Werner Part #2370521
UPC782113227498
Product Description
EATON Selector Switch Operator, Heavy Duty Oiltight/Watertight Non-Illuminated, Series: 10250T, 30.5 mm Size, Maintained Contact Mode, 2 Positions, Key/Right/Left Operator, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Surface Mounting, Bezel/Housing: Polished Chrome, Die Cast Zinc
Attributes
Documents
Applications
Features
Specifications
Attributes
Bezel/HousingPolished Chrome
Contact ModeMaintained
Country of OriginDO
Enclosure TypeNEMA 3/3R/4/4X/12/13/IP65
GTIN00782113227498
ManufacturerEaton
MaterialDie Cast Zinc
Mounting TypeSurface
NEMA RatingNEMA 3/3R/4/4X/12/13/IP65
Operator TypeKey/Right/Left
Package TypeEACH
Series10250T
Size30.5 mm
Type / StyleSelector Switch
Documents
Applications
Automation and Logic Control Equipment Applications
Features
- EATON contact blocks feature enclosed silver contacts with pointed reliability nibs
- To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
- Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs bit through paint and other coatings to provide secure ground
- Earth terminal provides additional grounding point and allows for daisy chain grounding
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Right and left key removal position
- 60 deg throw
- Front of panel drainage holes
Specifications
Standard/Approvals: ARRA Compliant|BAA Compliant|CE Certified|CSA C22.2 No. 14 File No. LR68551/213-M1987/LR20713|RoHS Compliant|UL 508|UL 1604 File No. E131568/E10323
