Cutler-Hammer Series D3RF2A

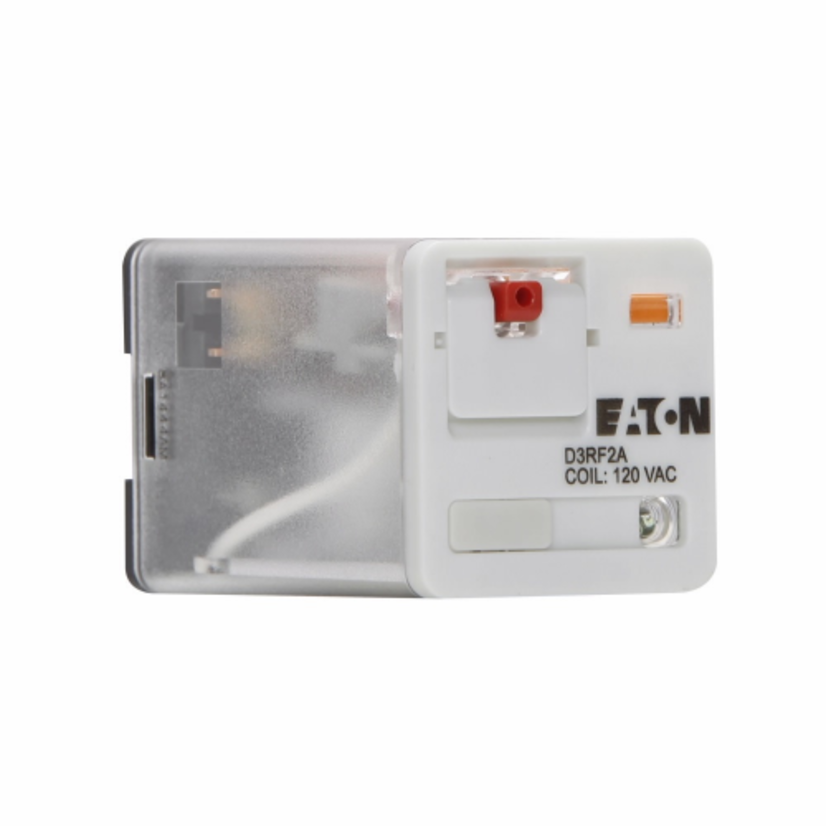

EATON D3RF2A Ice Cube Full Featured General Purpose Relay, 10 A, 8 Pin, 2 Form C DPDT Contact, 120 V AC V Coil
Cutler-Hammer Series D3RF2A
EATON D3RF2A Ice Cube Full Featured General Purpose Relay, 10 A, 8 Pin, 2 Form C DPDT Contact, 120 V AC V CoilIn Stock: 2more info
|
In Stock: 2more info
|
Product Description
EATON General Purpose Relay, Ice Cube Full Featured, Series: D3, 10 A, 120 V AC Coil, 2 Form C DPDT, 10 A Contact, 8 Pins, Octal Base, 2 Pole, Socket Mount, Plug-In Terminal, LED, IP40, -40 to 131 deg F, 2.2 in L x 1.37 in W x 1.39 in H
Attributes
Documents
Applications
Features
Attributes
Coil Voltage120 V AC
Contact Form2 Form C DPDT
Contact Rating10 A
Country of OriginCN
Dimensions2.2 in L x 1.37 in W x 1.39 in H
Display TypeLED
Enclosure TypeIP40
ManufacturerEaton
Mounting TypeSocket
Number of Poles2
Package TypeEACH
SeriesD3
Temperature Rating-40 to 131 deg F
Terminal TypePlug-In
Type / StyleIce Cube Full Featured
Applications
Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
Features
- The contact operation can be easily checked by push to-test button
- Flag indicator shows relay status in manual or powered condition
- LED status lamp shows coil ON or OFF status ideal for use in low light applications
- Push-to-test button allows for manual operation of relay without the need for coil power
- Lock-down door holds pushbutton and contacts in the operate position when activated
- Finger grip cover allows operator to remove relays from sockets easily
- ID tag/write label to identify relays in multiple relay circuits
- Bipolar LED allows for reverse polarity applications
