Cutler-Hammer Series XRU1D24UG

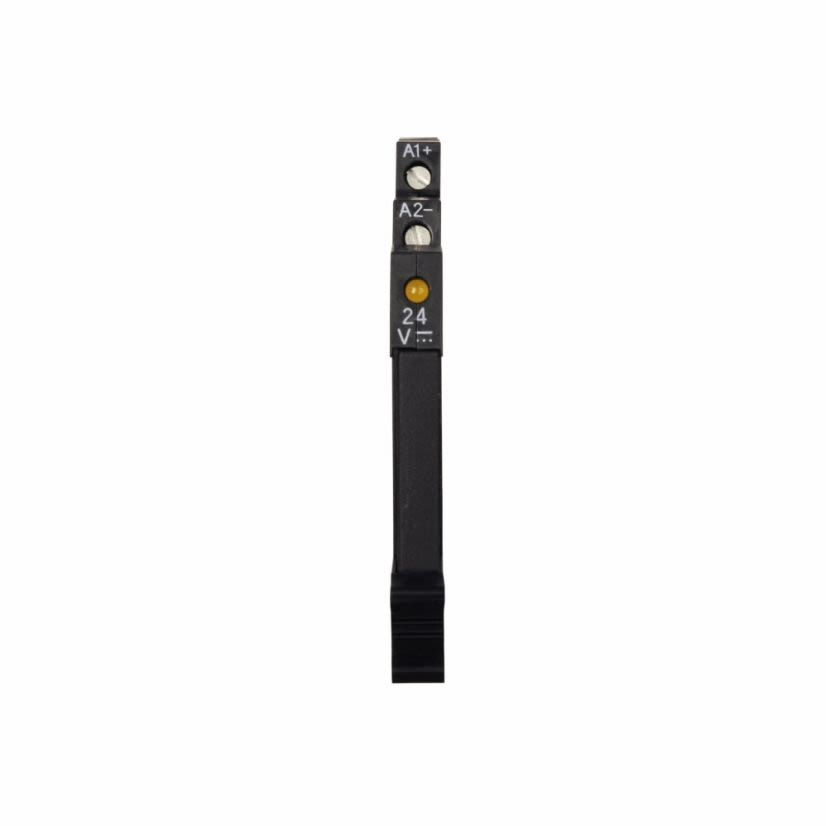

EATON XRU1D24UG Fixed Standard Terminal Block Relay, 6 A, 1 Form C SPDT Contact, 24 V DC V Coil
Cutler-Hammer Series XRU1D24UG
EATON XRU1D24UG Fixed Standard Terminal Block Relay, 6 A, 1 Form C SPDT Contact, 24 V DC V CoilOut of Stockmore info
|
BrandCutler-Hammer Series
MFG #XRU1D24UG
Werner Part #3904225
UPC782116940400
Out of Stockmore info
|
BrandCutler-Hammer Series
MFG #XRU1D24UG
Werner Part #3904225
UPC782116940400
Product Description
EATON Terminal Block Relay, Fixed Standard, Series: XR Series, 6 A, 100 mW Power, 24 V DC Coil, 1 Form C SPDT Contact Form, 1 Pole, DIN Rail Mounting, Screw Terminal, IP67 Enclosure, -4 to 140 deg F, 0.24 in L x 3.15 in W x 3.7 in H Dimensions
Attributes
Applications
Features
Warranty
Attributes
Coil Voltage24 V DC
Contact Form1 Form C SPDT
Country of OriginDE
Dimensions0.24 in L x 3.15 in W x 3.7 in H
Enclosure TypeIP67
ManufacturerEaton
Mounting TypeDIN Rail
Number of Poles1
Package TypeEACH
Power Rating100 mW
SeriesXR Series
Temperature Rating-4 to 140 deg F
Terminal TypeScrew
Applications
Automation Systems, Electromechanical Relays Guarantee a Safe Connection Between Process I/O and Electronic Controls Applications
Features
- Pluggable relay allows for field replacement
- Functional plug in bridges
- LED status indication
- Only 6.2 mm wide for 1-pole versions, 14 mm wide for 2-pole
- All common input voltages between 12 VDC to 120 VAC
- Equipped with a robust, miniature relay
- Environmentally friendly, cadmium-free contact material
- Easy, cost effective installation and replacement using the engagement lever
- Gold plated contacts
Warranty
1 year
