Cutler-Hammer Series XRU1D24U

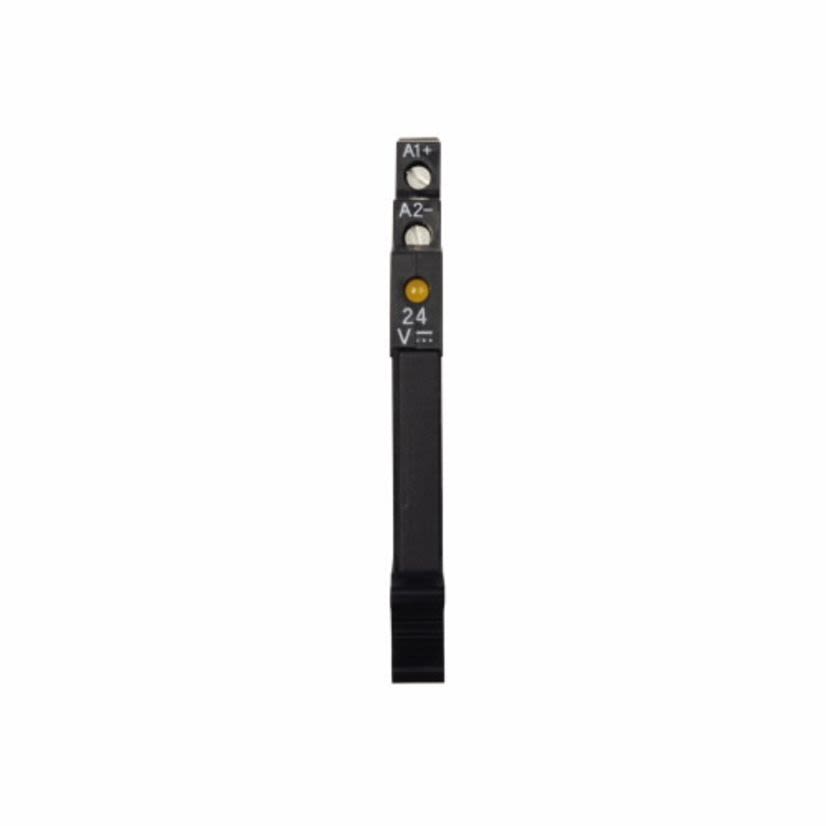

EATON XRU1D24U XR Series Standard Terminal Block Relay, 6 A, 1 Form C SPDT Contact, 24 V AC/DC V Coil
Cutler-Hammer Series XRU1D24U
EATON XRU1D24U XR Series Standard Terminal Block Relay, 6 A, 1 Form C SPDT Contact, 24 V AC/DC V CoilNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Terminal Block Relay, Standard, Series: XR Series, 6 A, 120 MW, 24 V AC/DC Coil, 1 Form C SPDT, 1 Pole, DIN Rail Mount, Screw Terminal, LED, IP67, -20 to 60 deg C
Attributes
Applications
Warranty
Features
Attributes
Coil Voltage24 V AC/DC
Contact Form1 Form C SPDT
Country of OriginDE
Display TypeLED
Enclosure TypeIP67
ManufacturerEaton
Mounting TypeDIN Rail
Number of Poles1
Package TypeEACH
Power Rating120 MW
SeriesXR Series
Temperature Rating-20 to 60 deg C
Terminal TypeScrew
Type / StyleSTANDARD
Applications
Automation and Logic Control Equipment Applications
Warranty
1 year
Features
- Electrical isolation between the input and output circuits
- Independence of the type of switching current (AC and DC)
- High short-term overload resistance in the event of short circuits or voltage peaks
- Low switching losses
- Ease of operation
- Pluggable relay allows for field replacement
- Functional plug-in bridges
- Easy, cost-effective installations and replacement using the engagement lever
- Environmentally friendly, AgSnO contact material
- 11 mA (24 VAC), 8.5 mA (24 VDC) input current
- 26 to 14 AWG rigid solid connection
- 20000000 cycles mechanical service life
- 6 ms typical response time, 15 ms typical release time
