Cutler-Hammer Series XRU1D120U

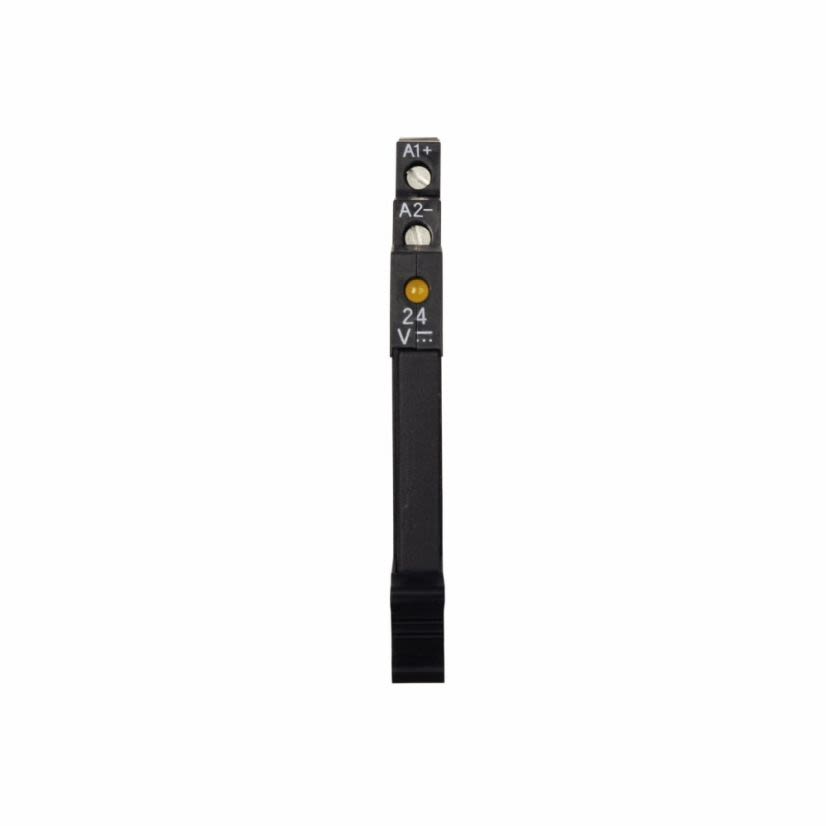

EATON XRU1D120U Standard Terminal Block Relay, 6 A, 1 Form C SPDT Contact, 120 V AC, 110 V DC V Coil
Cutler-Hammer Series XRU1D120U
EATON XRU1D120U Standard Terminal Block Relay, 6 A, 1 Form C SPDT Contact, 120 V AC, 110 V DC V CoilNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Terminal Block Relay, Standard, Series: XR Series, 6 A, 120 V AC, 110 V DC Coil, 1 Form C SPDT Contact Form, 1 Pole, DIN Rail Mounting, Screw Terminal, LED Display, IP67 Enclosure, -4 to 140 deg F, 3.15 in L x 0.24 in W x 3.7 in H Dimensions
Attributes
Documents
Features
Applications
Attributes
Coil Voltage120 V AC, 110 V DC
Contact Form1 Form C SPDT
Country of OriginDE
Dimensions3.15 in L x 0.24 in W x 3.7 in H
Display TypeLED
Enclosure TypeIP67
ManufacturerEaton
Mounting TypeDIN Rail
Number of Poles1
Package TypeEACH
SeriesXR Series
Temperature Rating-4 to 140 deg F
Terminal TypeScrew
Type / StyleStandard Terminal Block Relays
Features
- Pluggable relay allows for field replacement, 6 A rated current
- Functional plug-in bridges
- Choice of screw connections or spring cage connection
- LED status indication
- Only 6.2 mm W for 1-pole versions, 14 mm W for double pole
- Environmentally friendly, cadmium-free contact material
- For electrical isolation between the input and output circuits, independence of the type of switching current (AC and DC), high short term overload resistance in the event of short circuits or voltage peaks, low switching losses, ease of operation
- AgSnO contact material, bridge rectifier input protection, 10 mA minimum switching current, 120 mW minimum switching power, 100% operating factor rated operating mode
- 12 VDC voltage, 26 to 14 AWG solid rigid and stranded flexible connection, 3.5/3 mA typical input current, 6 ms typical response time, 15 ms typical release time, 250 VAC/VDC maximum switching voltage, 12 VAC/VDC minimum switching voltage
Applications
Automation and Logic Control Equipment Applications
