Cutler-Hammer Series BF22F

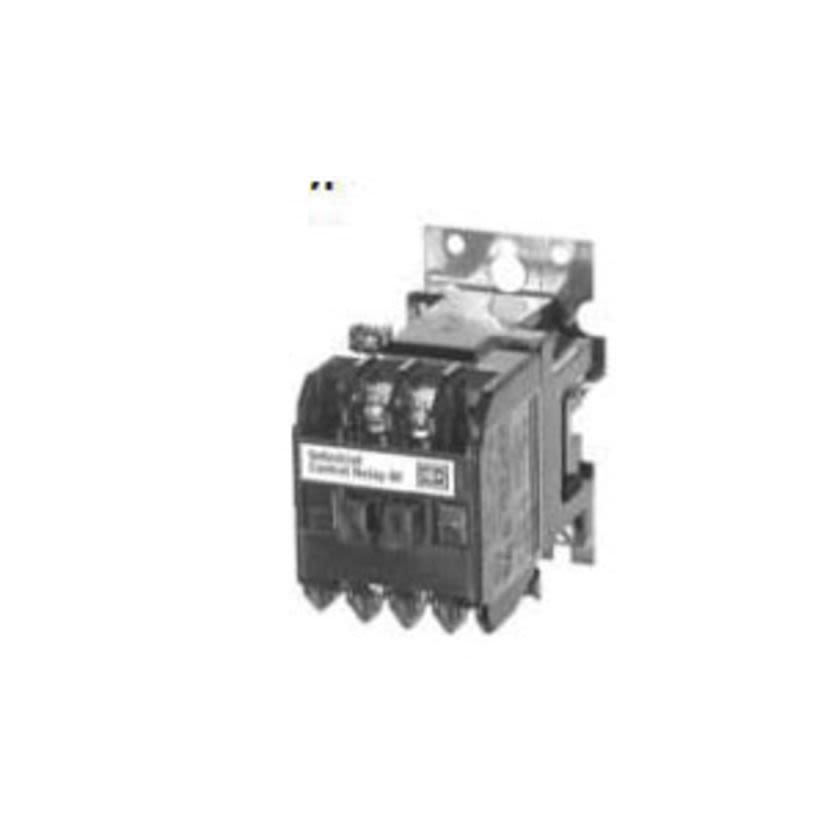

EATON BF22F Basic Fixed Contact Industrial AC Control Relay, 10 A, 2NO-2NC 2 Form C Contact, 110/120 V AC V Coil
Cutler-Hammer Series BF22F
EATON BF22F Basic Fixed Contact Industrial AC Control Relay, 10 A, 2NO-2NC 2 Form C Contact, 110/120 V AC V CoilNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #BF22F
Werner Part #2374767
UPC786678173030
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #BF22F
Werner Part #2374767
UPC786678173030
Product Description
EATON AC Control Relay, Basic Fixed Contact Industrial, Series: BF Series, 10 A, 50/60 Hz Frequency, 110/120 V AC Coil, 2NO-2NC 2 Form C Contact Form, 4 Pole, Panel Mounting, Clamp Terminal, NEMA 1 Enclosure, 3.13 in L x 1.97 in W x 3.22 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Coil Voltage110/120 V AC
Contact Form2NO-2NC 2 Form C
Country of OriginUS
Dimensions3.13 in L x 1.97 in W x 3.22 in H
Enclosure TypeNEMA 1
Frequency Rating50/60 Hz
ManufacturerEaton
Mounting TypePanel
Number of Poles4
Package TypeEACH
SeriesBF Series
Terminal TypeClamp
Type / StyleBasic Fixed Contact Industrial
Documents
Applications
Electrical Assemblies, Panels and EOEMs Applications
Warranty
1 year
Features
- Contact pole terminals have captive, backed-out, self-lifting pressure plates for reduced wiring time
- Terminals are shrouded or finger proofed to reduce possibility of electrical shock
- Wide spacing of contacts simplifies installation, contact testing and maintenance
- Contacts are electrically and mechanically isolated from each other for added safety
- Surge suppressors mount in contact cavity, limiting high transient voltages resulting from de-energizing relay coil for protection of sensitive instruments and solid state devices
- Latch coil continuously rated
- Latch plunger adjustable for optimum performance
