Cutler-Hammer Series M22-PV-K01

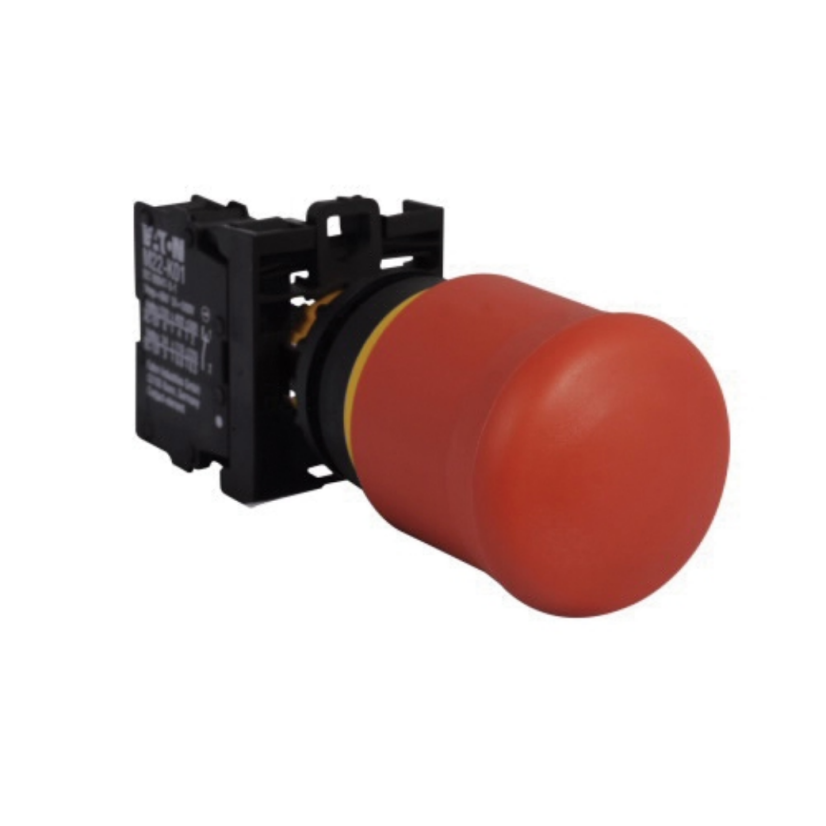

EATON RMQ-Titan M22-PV-K01 Modular Non-Illuminated Emergency Stop, 22.5 mm, 1NC Contact, Red
Cutler-Hammer Series M22-PV-K01
EATON RMQ-Titan M22-PV-K01 Modular Non-Illuminated Emergency Stop, 22.5 mm, 1NC Contact, RedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON RMQ-Titan Non-Illuminated Emergency Stop, Modular, Series: M22, 22.5 mm Size, 1NC Contact Configuration, Maintained Contact Mode, 6 A at 240 V AC, 3 A at 24 V DC Contact, Legend: EMERGENCY STOP, Bezel/Housing: Silver Bezel, Knob Actuator, Screw Terminal, NEMA 4X/13/IP67/IP69K Enclosure, Plastic, Red
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeKnob
Bezel/HousingSilver Bezel
ColorRed
Contact Configuration1NC
Contact ModeMaintained
Contact Rating6 A at 240 V AC, 3 A at 24 V DC
Country of OriginDE
Enclosure TypeNEMA 4X/13/IP67/IP69K
ManufacturerEaton
MaterialPlastic
Operator TypePush/Pull
SeriesM22
Size22.5 mm
Terminal TypeScrew
Type / StyleEmergency Stop
Documents
Applications
Stationary Machinery, Equipment Outside Factory and Other Applications
Warranty
1 year
Features
- EATON M22 emergency stops are a durable and reliable solution to a variety of e-stop applications, with standard push-pull, as well as twist to release and key release, illuminated options and red or black operators
- The M22 e-stop is a robust solution as with all operators, they can be ordered as a ready to install complete device or as modular components for the perfect fit
- Push-pull and twist to release options available as well as illuminated and keyed release
- LED offering only for improved brightness quality and up to 100000 hours of operation
- More than 100000 mechanical operations
- Capable of communicating via ASi protocol with ASi adapter modules
