Cutler-Hammer Series M22-DL-W-K10-W

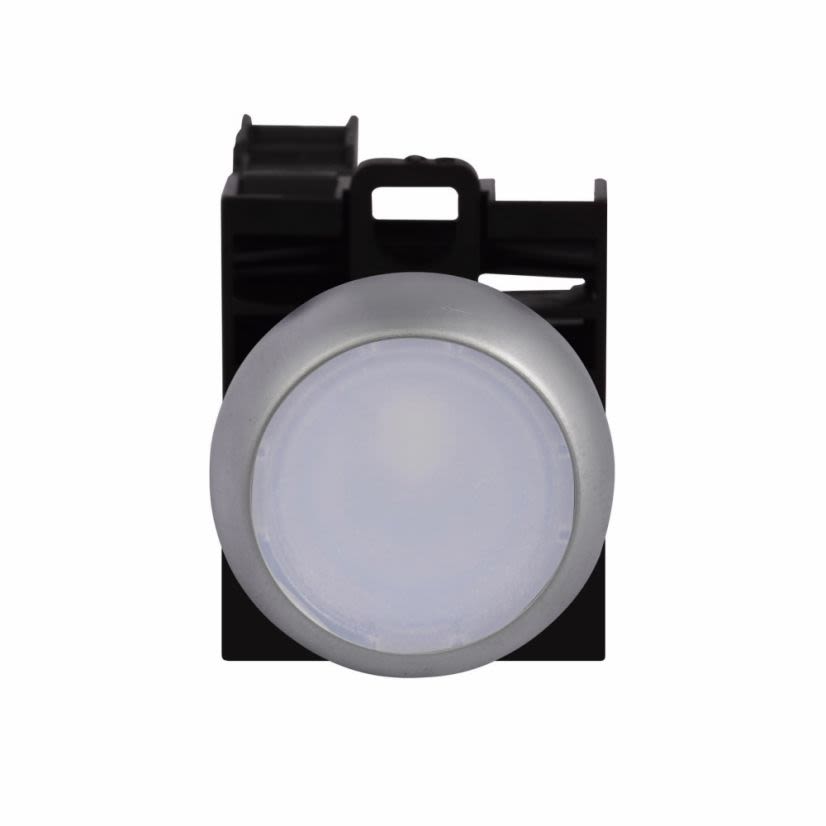

EATON RMQ-Titan M22-DL-W-K10-W Modular Illuminated Pushbutton, 22.5 mm, 1NO Contact, White
Cutler-Hammer Series M22-DL-W-K10-W
EATON RMQ-Titan M22-DL-W-K10-W Modular Illuminated Pushbutton, 22.5 mm, 1NO Contact, WhiteNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #M22-DL-W-K10-W
Werner Part #3859269
UPC786685274744
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #M22-DL-W-K10-W
Werner Part #3859269
UPC786685274744
Product Description
EATON RMQ-Titan Illuminated Pushbutton, Modular, Series: M22, 22.5 mm Size, 1NO Contact Configuration, Momentary Contact Mode, LED Lamp, Bezel/Housing: Silver Bezel, Flush Button Actuator, Screw Terminal, NEMA 4X/13/IP67/IP69K Enclosure, White, Environmental Conditions: -13 to 158 deg F Operating Temperature
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeFlush Button
Bezel/HousingSilver Bezel
ColorWhite
Contact Configuration1NO
Contact ModeMomentary
Contact Rating12 to 30 VAC/VDC
Country of OriginDE
Enclosure TypeNEMA 4X/13/IP67/IP69K
Lamp TypeLED
ManufacturerEaton
Package TypeEACH
SeriesM22
Size22.5 mm
Terminal TypeScrew
Type / StyleRMQ-Titan Modular
Applications
Electrical Assemblies, Panels and EOEMs Applications
Warranty
1 year
Features
- Field convertible from maintained to momentary
- Customizable laser engraving on all buttons
- LED offering only for improved brightness quality and up to 100000 hours of operation
- More than 5 million mechanical operations on momentary and 1 million on maintained pushbuttons
- Modular construction makes assembly fast and simplifies stocking of components and complete devices
- Capable of communicating via ASi protocol with ASi adapter modules
- 12 to 30 VAC/VDC LED light unit
