Cutler-Hammer Series 10250T397LGD24-1

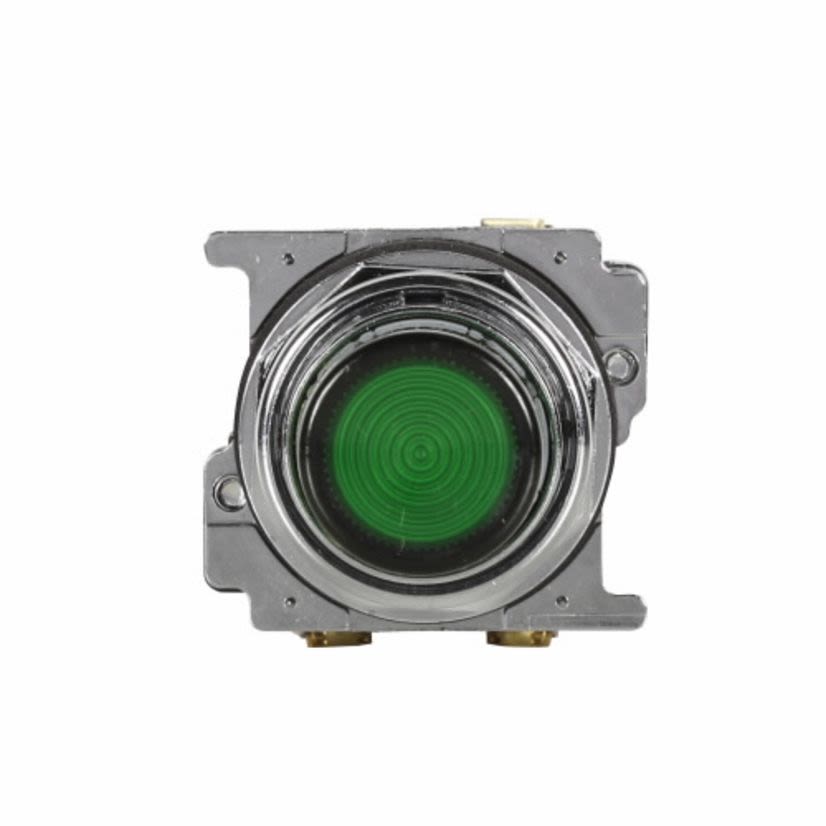

EATON 10250T397LGD24-1 Heavy Duty Oil/Watertight Illuminated Pushbutton, 30.5 mm, 1NO-1NC Contact, Green
EATON 10250T397LGD24-1 Heavy Duty Oil/Watertight Illuminated Pushbutton, 30.5 mm, 1NO-1NC Contact, Green

Cutler-Hammer Series 10250T397LGD24-1

EATON 10250T397LGD24-1 Heavy Duty Oil/Watertight Illuminated Pushbutton, 30.5 mm, 1NO-1NC Contact, Green
Out of Stockmore info

BrandCutler-Hammer Series

MFG #10250T397LGD24-1

Werner Part #572043

UPC782114753828

Out of Stockmore info

BrandCutler-Hammer Series

MFG #10250T397LGD24-1

Werner Part #572043

UPC782114753828

Product Description

EATON Illuminated Pushbutton, Heavy Duty Oil/Watertight, Series: 10250T, 30.5 mm Size, 1NO-1NC Contact Configuration, Momentary Contact Mode, 10 A at 600 V AC Contact, LED Lamp, Bezel/Housing: Polished Chrome Bezel, Extended Button Actuator, Screw Terminal, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Die-Cast Zinc, Polished Chrome, Green, Environmental Conditions: 1 to 150 deg F Operating Temperature, 95% Relative Humidity at 60 deg C
Attributes
Actuator TypeExtended Button
Bezel/HousingPolished Chrome Bezel
ColorGreen
Contact Configuration1NO-1NC
Contact ModeMomentary
Contact Rating10 A at 600 V AC
Country of OriginUS
Enclosure TypeNEMA 3/3R/4/4X/12/13/IP65
FinishPolished Chrome
Lamp TypeLED
ManufacturerEaton
MaterialDie-cast Zinc
Package TypeEACH
Series10250T
Size30.5 mm
Terminal TypeScrew
Type / StyleAssembled Full Voltage Heavy Duty Oiltight/Watertight
