Cutler-Hammer Series 10250T471

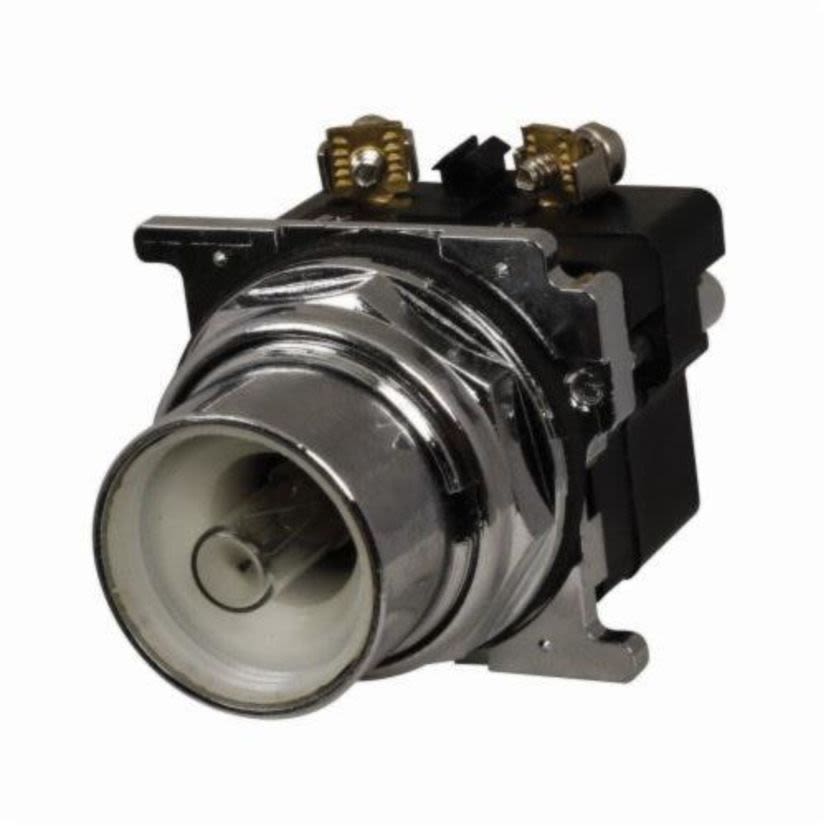

EATON 10250T471 3-Position Heavy Duty Oiltight/Watertight Illuminated Push-Pull Operator, 30.5 mm, Maintained/Momentary Contact
Cutler-Hammer Series 10250T471
EATON 10250T471 3-Position Heavy Duty Oiltight/Watertight Illuminated Push-Pull Operator, 30.5 mm, Maintained/Momentary ContactIn Stock: 1more info
|
BrandCutler-Hammer Series
MFG #10250T471
Werner Part #2383566
UPC782113226026
In Stock: 1more info
|
BrandCutler-Hammer Series
MFG #10250T471
Werner Part #2383566
UPC782113226026
Product Description
EATON Illuminated Push-Pull Operator, 3-Position Heavy Duty Oiltight/Watertight, Series: 10250T, 30.5 mm Size, Maintained/Momentary Contact Mode, 120 V AC, Incandescent Lamp, Bezel/Housing: Polished Chrome, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Die Cast Zinc
Attributes
Documents
Applications
Features
Attributes
Bezel/HousingPolished Chrome
Contact ModeMaintained/Momentary
Country of OriginDO
Enclosure TypeNEMA 3/3R/4/4X/12/13/IP65
Lamp TypeIncandescent
ManufacturerEaton
MaterialDie Cast Zinc
Operator TypePush-Pull
Package TypeEACH
Series10250T
Size30.5 mm
Documents
Applications
Automation and Logic Control Equipment
Features
- EATON contact blocks feature enclosed silver contacts with pointed reliability nibs
- To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
- Diaphragm seals with drainage holes
- Grounding nibs on the operator casing
- Drainage holes prevent build-up of liquid inside the operator which can prevent operation in-freezing environments
- Grounding nibs bite through paint and other coatings to provide secure ground
- Slow make and break contact operation positive opening NC contacts for improved safety
- Resistor units are not available for use with LEDs, choose either transformer or full voltage LED style
- Resistor type light unit
