Appleton SPBBU1Q

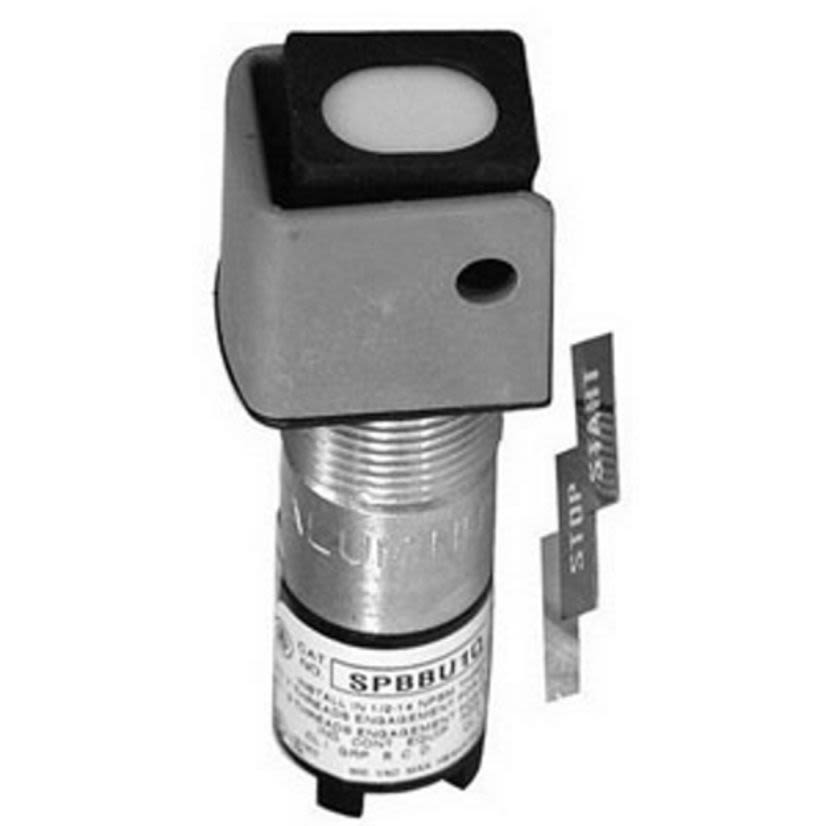

Appleton SPBBU1Q Heavy Duty Factory Sealed Universal Non-Illuminated Pushbutton With 1/2 in to 3/4 in Enlarger, 1NO-1NC Contact, Momentary Contact
Appleton SPBBU1Q
Appleton SPBBU1Q Heavy Duty Factory Sealed Universal Non-Illuminated Pushbutton With 1/2 in to 3/4 in Enlarger, 1NO-1NC Contact, Momentary ContactNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Appleton, SPBBU1Q, Non-Illuminated Pushbutton With 1/2 in to 3/4 in Enlarger, Heavy Duty Factory Sealed Universal, 1NO-1NC Contact Configuration, Momentary Contact, 10 A at 600 V AC Contact, NPSM Connection, NEMA 3/7B/7C/7D/9E/9F/9G Enclosure, Surface Mounting, Aluminum, Natural, Environmental Conditions: -40 to 55 deg C Temperature
Attributes
Documents
Applications
Warranty
Features
Attributes
Connection TypeNPSM
Contact Configuration1NO-1NC
Contact FormMomentary
Contact Rating10 A at 600 V AC
Country of OriginMX
Enclosure TypeNEMA 3/7B/7C/7D/9E/9F/9G
FinishNatural
ManufacturerEmerson Electric
MaterialAluminum
Mounting TypeSurface
Package TypeEACH
Type / StyleHeavy Duty Factory Sealed Universal
Documents
Applications
Hazardous Location Applications
Warranty
1 Year
Features
- Finish is epoxy powder coat for enhanced corrosion resistance
- Large back box for ample wiring room
- Ground screw installed in bodies for ground continuity
- Corrosion resistant stainless steel hex head captive screws hold covers to body
- Factory sealed enclosure eliminates need for adding sealing fittings and compound at each conduit entrance
- Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Pushbutton and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements
- Enclosed stainless steel helper spring prevents accidental operation of pushbutton in severe vibration installations
