Cutler-Hammer Series ECSNOASC

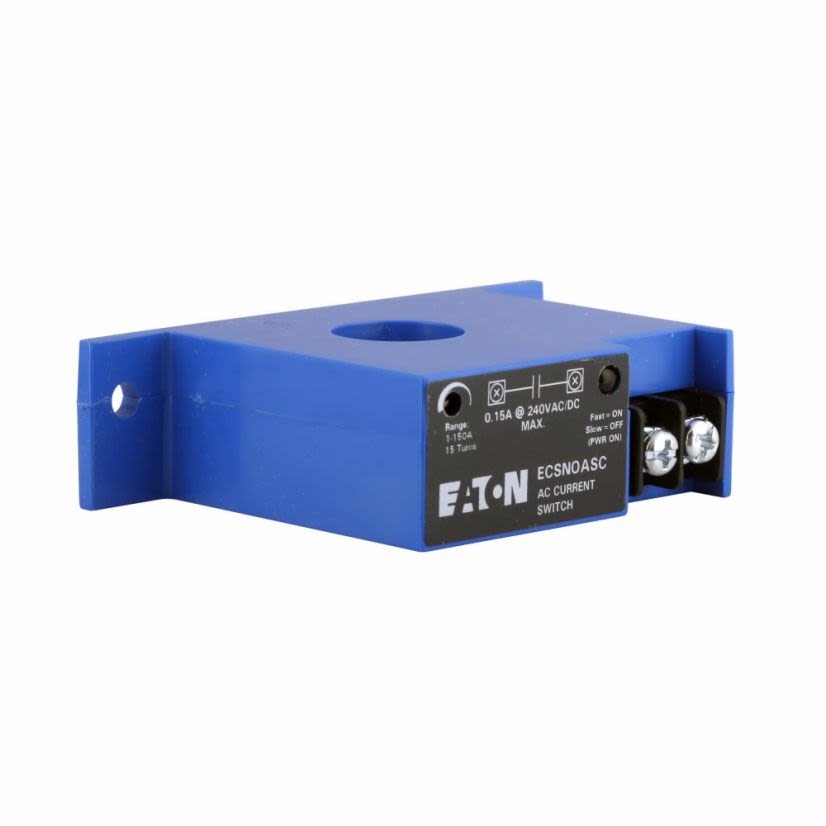

EATON CurrentWatch ECSNOASC Top Terminal Current Switch, 120 ms Response, 1NO Contact Output, 240 V AC/DC
Cutler-Hammer Series ECSNOASC
EATON CurrentWatch ECSNOASC Top Terminal Current Switch, 120 ms Response, 1NO Contact Output, 240 V AC/DCNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #ECSNOASC
Werner Part #3776522
UPC786685120911
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #ECSNOASC
Werner Part #3776522
UPC786685120911
Product Description
EATON CurrentWatch Current Switch, Top Terminal, Series: ECS, 120 ms Response, 10 Output, 240 V AC/DC, 150 A, 6 to 100 Hz, Screw, LED Indicator Light Source, 3.5 in L x 0.93 in W x 2.18 in H, Solid Core Housing, -58 to 122 deg F Operating, Panel Mount, Environmental Conditions: 0 to 95% Relative Humidity
Attributes
Documents
Applications
Warranty
Features
Attributes
Connection TypeScrew
Country of OriginUS
Enclosure TypeSolid Core Housing
Frequency Rating6 to 100 Hz
ManufacturerEaton
Mounting TypePanel
Operating Temperature-58 to 122 deg F
Package TypeEACH
SeriesECS
Size3.5 in L x 0.93 in W x 2.18 in H
Type / StyleTop Terminal
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Warranty
1 year
Features
- Universal outputs NO or NC solid state switch for control circuits up to 240 VAC/VDC, compatible with most automation systems
- Self-powered cuts installation and operating costs
- Easily adjustable set point increases application flexibly and speeds start-up
- Solid or split core housings versions tailored for each type of installation
- LED indication provides quick visual indication of output contact status
- Built-in mounting feet simple, 2-screw panel mount or attach with optional DIN-rail mounting kit accessory
- Adjustable 1 to 150 A set point with LED
- Isolated solid state relay contact configuration
- UL 94V-0 flammability rated plastic enclosure
- 0.74 in aperture
- Non-condensing
