Cutler-Hammer Series ECSJ404SC

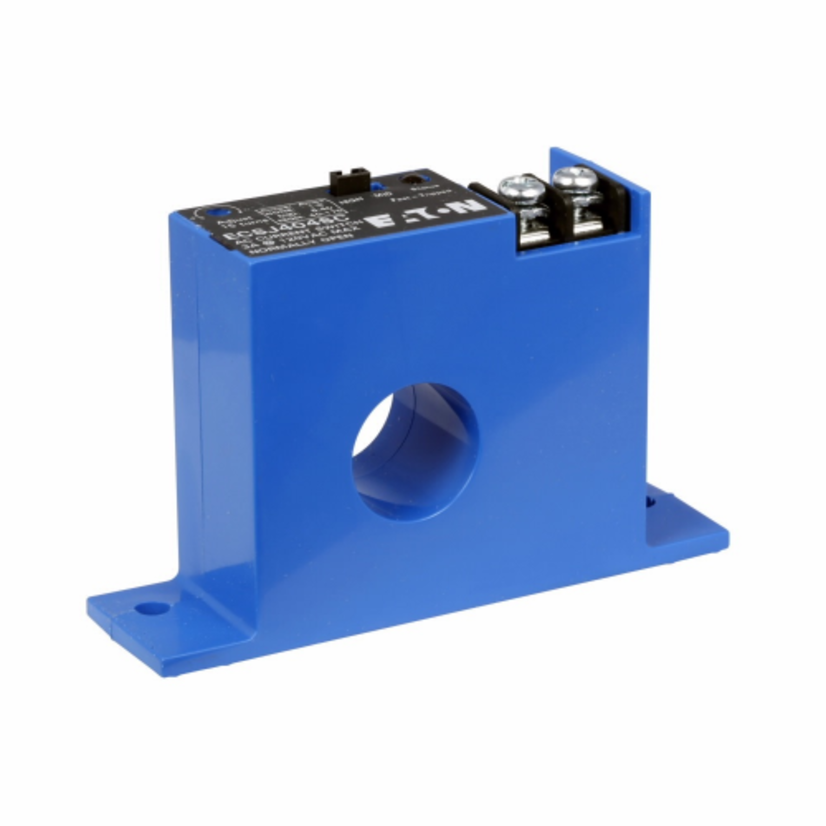

EATON CurrentWatch ECSJ404SC Front Top Terminal Current Switch, 40 to 120 ms Response, 1NO Contact Output, 120 V AC
Cutler-Hammer Series ECSJ404SC
EATON CurrentWatch ECSJ404SC Front Top Terminal Current Switch, 40 to 120 ms Response, 1NO Contact Output, 120 V ACNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #ECSJ404SC
Werner Part #3776518
UPC786685121048
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #ECSJ404SC
Werner Part #3776518
UPC786685121048
Product Description
EATON CurrentWatch Current Switch, Front Top Terminal, Series: ECSJ, 40 to 120 ms Response, 10 Output, 120 V AC, 175 A, 6 to 100 Hz, Screw, LED Indicator Light Source, 3.5 in L x 0.93 in W x 2.18 in H, Solid Core Housing, -58 to 122 deg F Operating, Panel Mount, Environmental Conditions: 0 to 95% Relative Humidity
Attributes
Documents
Applications
Warranty
Features
Attributes
Connection TypeScrew
Country of OriginUS
Enclosure TypeSolid Core Housing
Frequency Rating6 to 100 Hz
ManufacturerEaton
Mounting TypePanel
Operating Temperature-58 to 122 deg F
Package TypeEACH
SeriesECSJ
Size3.5 in L x 0.93 in W x 2.18 in H
Type / StyleFront Top Terminal
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Warranty
1 year
Features
- Self-powered cuts installation and operating costs
- Easily adjustable set point speeds start-up and reduces inventory
- Solid or split core housings choose the appropriate version for your application
- LED indication provides quick visual indication of output contact status
- Built-in mounting feet provide for a secure installation
- Adjustable 1 to 6/6 to 40/40 to 175 A set point with LED
- Isolated solid state relay contact configuration
- UL94 V-0 flammability rated plastic enclosure
- 0.74 in aperture
- Non-condensing
