Cutler-Hammer Series EAC1420SC

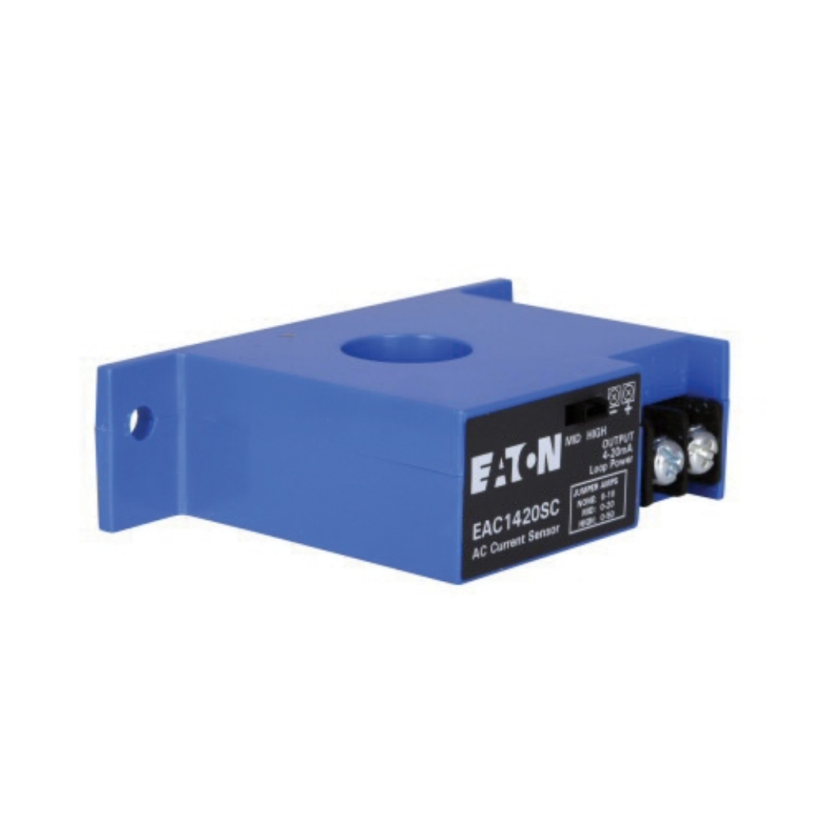

EATON CurrentWatch EAC1420SC CurrentWatch EAC Top Terminal Current Sensor, 300 ms Response, Analog Output, 24 V DC
Cutler-Hammer Series EAC1420SC
EATON CurrentWatch EAC1420SC CurrentWatch EAC Top Terminal Current Sensor, 300 ms Response, Analog Output, 24 V DCNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #EAC1420SC
Werner Part #3776508
UPC786685120560
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #EAC1420SC
Werner Part #3776508
UPC786685120560
Product Description
EATON CurrentWatch Current Sensor, Top Terminal, Series: CurrentWatch EAC, 300 ms Response, Analog Output, 24 V DC, 10/20/50 A, 20 to 100 Hz, Screw, 3.5 in L x 1.2 in W x 2.75 in H, Solid Core Housing, -4 to 122 deg F Operating, Panel Mount, Environmental Conditions: 0 to 95% Relative Humidity
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Connection TypeScrew
Country of OriginUS
Enclosure TypeSolid Core Housing
Frequency Rating20 to 100 Hz
ManufacturerEaton
Mounting TypePanel
Operating Temperature-4 to 122 deg F
Package TypeEACH
SeriesCurrentWatch EAC
Size3.5 in L x 1.2 in W x 2.75 in H
Type / StyleTop Terminal
Documents
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs, Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory
Included
Bolt and Nut
Warranty
1 year
Features
- Highly accurate factory matched and calibrated one-piece sensor is more accurate than traditional two-piece, field installed solutions
- Average responding algorithm gives an RMS output on pure sine waves, perfect for constant speed (linear) loads
- Jumper selectable ranges the ability to change input ranges reduces inventory and eliminates zero and span
- Isolation output is magnetically isolated from the input for safety and elimination of insertion loss (voltage drop)
- 24 VDC loop powered
- 4 to 20 mA analog output
- UL 94V-0 flammability rated plastic enclosure
- 1% FS accuracy
- Non-condensing
