Cutler-Hammer Series E58-30TD250-GLP

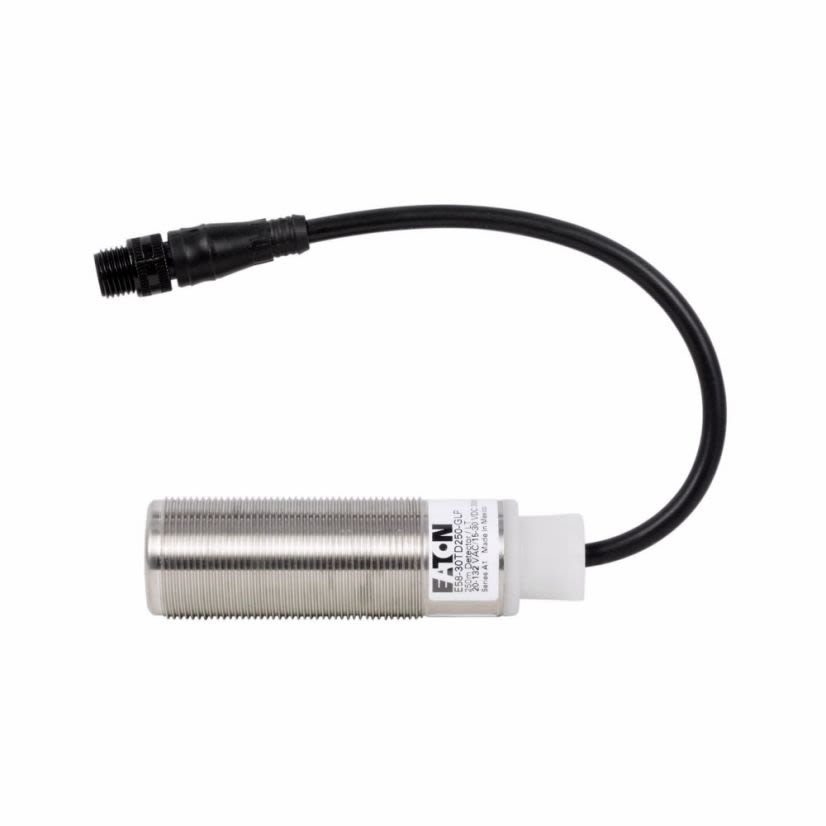

EATON Perfect Prox E58-30TD250-GLP Straight Harsh Duty Photoelectric Sensor, Tubular Shape, 800 ft, Visible Red Sensing Beam, 10/2 ms Response, AC L1 Switch/DC NPN Open Collector Output
Cutler-Hammer Series E58-30TD250-GLP
EATON Perfect Prox E58-30TD250-GLP Straight Harsh Duty Photoelectric Sensor, Tubular Shape, 800 ft, Visible Red Sensing Beam, 10/2 ms Response, AC L1 Switch/DC NPN Open Collector OutputNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Perfect Prox Photoelectric Sensor, Straight Harsh Duty, Series: E58, Tubular Shape, Thru-Beam Sensing Method, 800 ft Sensing, Visible Red Sensing Beam, 10/2 ms Response, 10 Output, 20 to 132 VAC, 15 to 30 VDC, 300 mA, 3 W Wattage, 50/60 Hz Frequency, 4-Pin Dual Key Micro AC Connection, Power LED Indicator Light Source, 30 g Vibration, 4.36 in L x 1.18 in W x 1.18 in H Size, NEMA 1/2/3/3R/3S/4/4X/6/6P/12/12K/13/IP69K Enclosure, -40 to 131 deg F Operating
Attributes
Documents
Applications
Warranty
Features
Attributes
Connection Type4-Pin Dual Key Micro AC
Country of OriginMX
Enclosure TypeNEMA 1/2/3/3R/3S/4/4X/6/6P/12/12K/13/IP69K
Frequency Rating50/60 Hz
ManufacturerEaton
Operating Temperature-40 to 131 deg F
Package TypeEACH
SeriesE58
ShapeTubular
Size4.36 in L x 1.18 in W x 1.18 in H
Type / StyleStraight
Wattage3 W
Documents
Applications
Automation and Logic Control Equipment, Vehicles On-Road PickUp and Delivery Food Applications
Warranty
3 years
Features
- Highly refined optics for long sensing ranges and to see through high levels of contamination unmatched optical performance
- Perfect Prox technology provides exceptional background rejection and extremely high excess gain
- Resistant to the wide range of chemicals used in the automotive, food processing and forest products industries
- Suitable for high temperature, high pressure wash-down (1200 psi)
- Mechanical FKM seals hold up to extreme temperature variations
- Visible sensing beam on all models lets you see where the beam is aimed for quick-setup and alignment
- The industry's only background rejection sensors with a 2-wire circuit design
- 4-wire DC sensors offer dual NPN and PNP outputs
- Models available with both AC and DC operation in a single unit
- Output status indicator is the brightest available and is visible from any angle and in any lighting condition
- 303 stainless steel enclosure
- Light operating mode
- Latching short circuit protection
