Cutler-Hammer Series 12155AD10

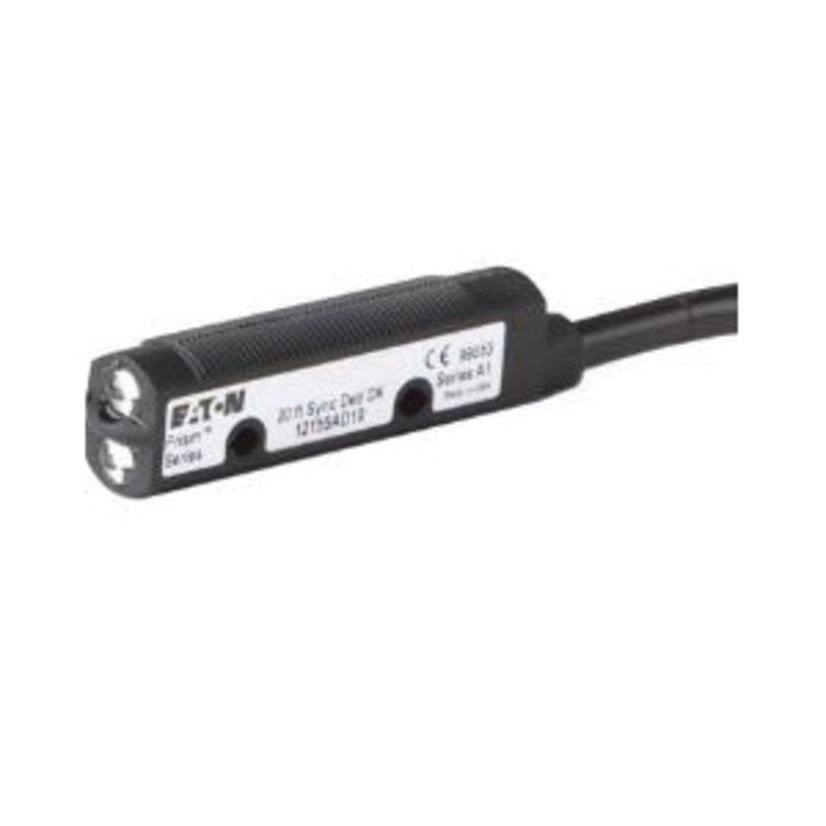

EATON Prism 12155AD10 Forward Viewing Photoelectric Sensor, Tubular Shape, 20 ft, Visible Red Sensing Beam, 3 ms Response
Cutler-Hammer Series 12155AD10
EATON Prism 12155AD10 Forward Viewing Photoelectric Sensor, Tubular Shape, 20 ft, Visible Red Sensing Beam, 3 ms ResponseNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #12155AD10
Werner Part #4017683
UPC782113056579
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #12155AD10
Werner Part #4017683
UPC782113056579
Product Description
EATON Prism Photoelectric Sensor, Forward Viewing, Tubular Shape, Thru-Beam Sensing Method, 20 ft Sensing, Visible Red Sensing Beam, 3 ms Response, 20 to 132 VAC, 15 to 30 VDC, 80/110 mA, 2 W Wattage, 50/60 Hz Frequency, 6.6 ft Cable Connection, Red Output Status LED Indicator Light Source, 30 g Vibration, 0.47 x 0.71 x 1.5 in Size, NEMA 1/3/4/4X/6/6P/12/13 Enclosure, -13 to 131 deg F Operating, Surface Mounting
Attributes
Documents
Applications
Warranty
Features
Attributes
Connection Type6.6 ft Cable
Country of OriginMX
Enclosure TypeNEMA 1/3/4/4X/6/6P/12/13
Frequency Rating50/60 Hz
ManufacturerEaton
Mounting TypeSurface
Operating Temperature-13 to 131 deg F
Package TypeEACH
ShapeTubular
Size0.47 x 0.71 x 1.5 in
Type / StyleForward Viewing
Wattage2 W
Applications
Electrical Assemblies, Panels and EOEMs Applications
Warranty
3 years
Features
- Small size for use in a wide variety of applications and locations
- High sensing power for longer ranges and resistance to dust and dirt
- Adjustable gain control to ensure peak optical performance
- High noise immunity which greatly reduces problems associated with electrical noise
- DC only models which offer lower cost options in all sensing modes
- Isolated outputs for wiring flexibility
- Short circuit protection is provided by an adjustable instantaneous only
- Built-in cable models allow for lowest cost wiring
- Micro-connector models provide for quick installation or replacement
- Quick 3 ms response time on all models
- Highly visible output status LED
- Custom cable length options
- Polycarbonate cable lens, PVC jacket, structural polyurethane foam body enclosure material
- Current limited for loads less than 32 VAC/VDC
- Isolated solid state relay contact configuration
