Cutler-Hammer Series E58CAL18T111D2

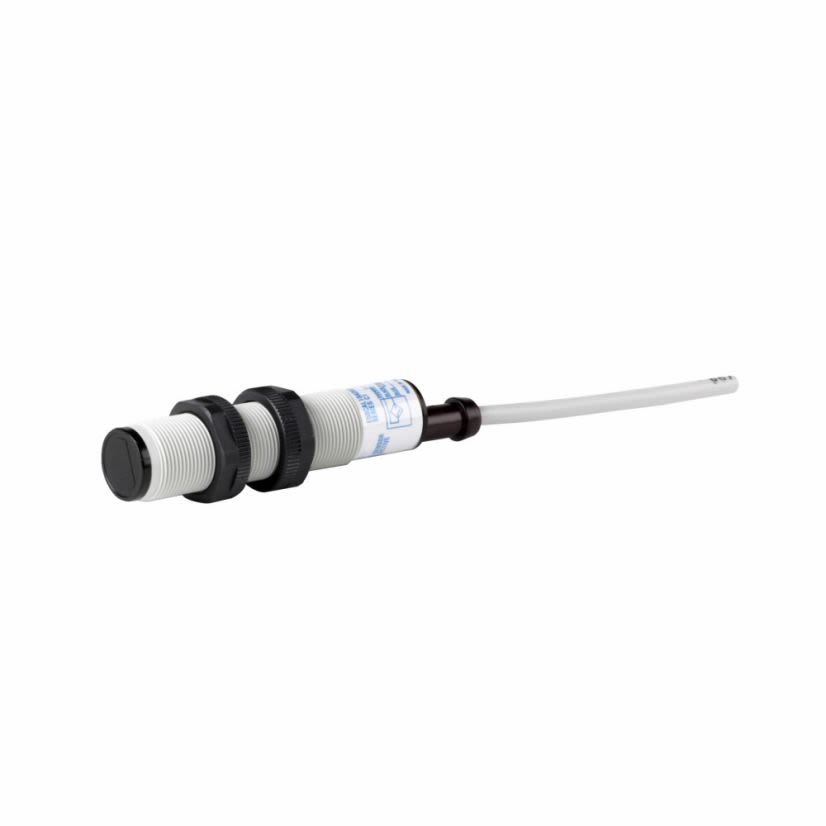

EATON Perfect Prox E58CAL18T111D2 3/4-Wire Straight Harsh Duty Photoelectric Sensor, Tubular Shape, 8 in, 1 ms Response, NPN/PNP Output
Cutler-Hammer Series E58CAL18T111D2
EATON Perfect Prox E58CAL18T111D2 3/4-Wire Straight Harsh Duty Photoelectric Sensor, Tubular Shape, 8 in, 1 ms Response, NPN/PNP OutputNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #E58CAL18T111D2
Werner Part #2370236
UPC782113109671
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #E58CAL18T111D2
Werner Part #2370236
UPC782113109671
Product Description
EATON Perfect Prox Photoelectric Sensor, 3/4-Wire Straight Harsh Duty, Series: E58, Tubular Shape, Diffuse Reflective Sensing Method, 8 in Sensing, 1 ms Response, NPN/PNP Output, 10 to 30 V DC, 100 mA, 2 W Wattage, 50/60 Hz Frequency, Cable Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 2.2 in L x 0.47 in W x 0.71 in H Size, NEMA 1/3/4/4X/6/12/13/IP69K Enclosure, -40 to 158 deg F Operating, Surface Mounting
Attributes
Documents
Applications
Warranty
Features
Attributes
Connection TypeCable
Country of OriginMX
Enclosure TypeNEMA 1/3/4/4X/6/12/13/IP69K
Frequency Rating50/60 Hz
ManufacturerEaton
Mounting TypeSurface
Operating Temperature-40 to 158 deg F
Package TypeEACH
SeriesE58
ShapeTubular
Size2.2 in L x 0.47 in W x 0.71 in H
Type / Style3/4-Wire Straight
Wattage2 W
Applications
Automation and Logic Control Equipment, Vehicles On-Road PickUp and Delivery Food Applications
Warranty
3 years
Features
- The industry's only background rejection sensors with a 2-wire circuit design
- Perfect Prox technology provides exceptional background rejection and extremely high excess gain
- Resistant to the wide range of chemicals used in the automotive, food processing and forest products industries
- Suitable for high temperature, high pressure wash-down (1200 psi)
- Mechanical FKM seals hold up to extreme temperature variations
- Visible sensing beam on all models lets you see where the beam is aimed for quick-setup and alignment
- Highly refined optics for long sensing ranges and to see through high levels of contamination unmatched optical performance
- Output status indicator is the brightest available and is visible from any angle and in any lighting condition
- 100 mA maximum DC current
- PVC cable type
- Polyurethane foam (rim) enclosure
- Output on LED indicators
- Auto-reset short circuit protection
