Cutler-Hammer Series 1451E-6547

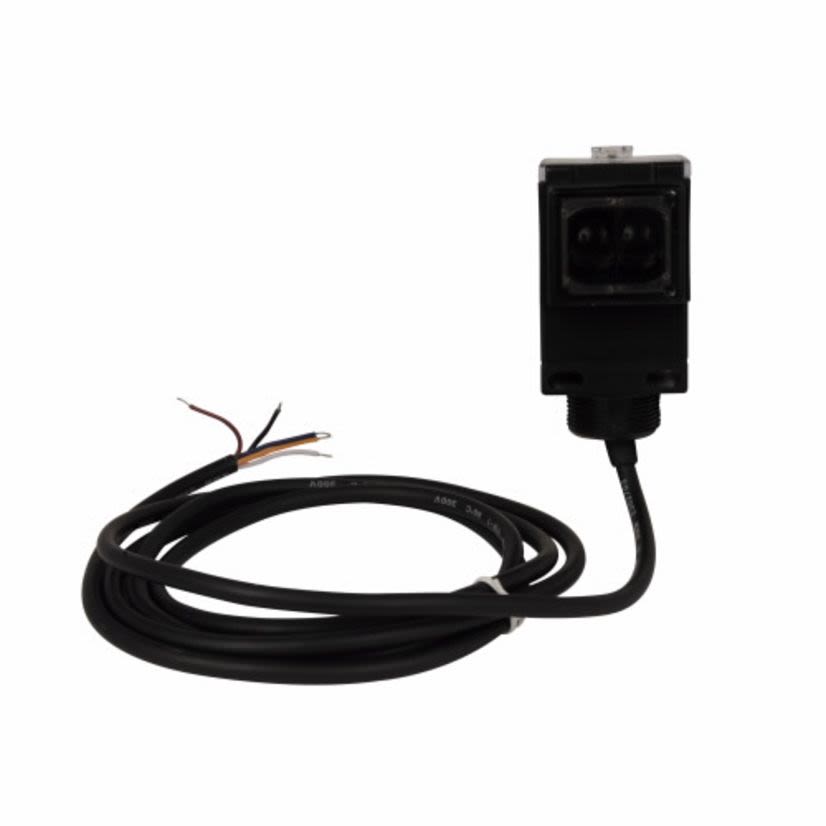

EATON 1451E-6547 Enhanced 50 Forward Viewing Fully Potted High Performance Photoelectric Sensor, Rectangle Shape, 16 ft, Red Laser Sensing Beam, 2 to 18 ms Response, NPN/PNP Output
Cutler-Hammer Series 1451E-6547
EATON 1451E-6547 Enhanced 50 Forward Viewing Fully Potted High Performance Photoelectric Sensor, Rectangle Shape, 16 ft, Red Laser Sensing Beam, 2 to 18 ms Response, NPN/PNP OutputNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #1451E-6547
Werner Part #1507124
UPC782116111275
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #1451E-6547
Werner Part #1507124
UPC782116111275
Product Description
EATON Photoelectric Sensor, Forward Viewing Fully Potted High Performance, Series: Enhanced 50, Rectangle Shape, Polarized Retroreflective Sensing Method, 16 ft Sensing, Red Laser Sensing Beam, 2 to 18 ms Response, NPN/PNP Output, 10 to 40 V DC, 250 mA, 60 Hz Frequency, 4-Pin M12 Connection, LED Light Source, 4.01 in L x 1.91 in W x 1.81 in H Size, NEMA IP67/IP69K Enclosure, -13 to 131 deg F Operating, Environmental Conditions: 95% Non-Condensing Relative Humidity
Attributes
Documents
Applications
Warranty
Features
Attributes
Connection Type4-Pin M12
Country of OriginCN
Enclosure TypeNEMA IP67/IP69K
Frequency Rating60 Hz
ManufacturerEaton
Operating Temperature-13 to 131 deg F
Package TypeEACH
SeriesEnhanced 50
ShapeRectangle
Size4.01 in L x 1.91 in W x 1.81 in H
Type / StyleForward Viewing Fully Potted High Performance
Documents
Applications
Automation and Logic Control Equipment, Electrical Assemblies, Panels and EOEMs - Other Applications
Warranty
3 years
Features
- All units offer light/dark selection
- Fiberglass reinforced plastic case and acrylic lens
- Fully potted construction for use in areas subject to wash-down, high shock and/or vibration
- 4 output options including a 2 A SPDT relay
- These high performance sensors feature interchangeable outputs and logic functions in a fully sealed, self-contained package
- NPN/PNP open collector output contact configuration
- Fiberglass reinforced plastic enclosure
- 250 mA maximum DC current
- Output (green), power (yellow), alignment (red) LED indicator
- Output short circuit, over current and reverse polarity protection
- 250 mA at 10 to 40 VDC contact rating
