Cutler-Hammer Series 13104A6517

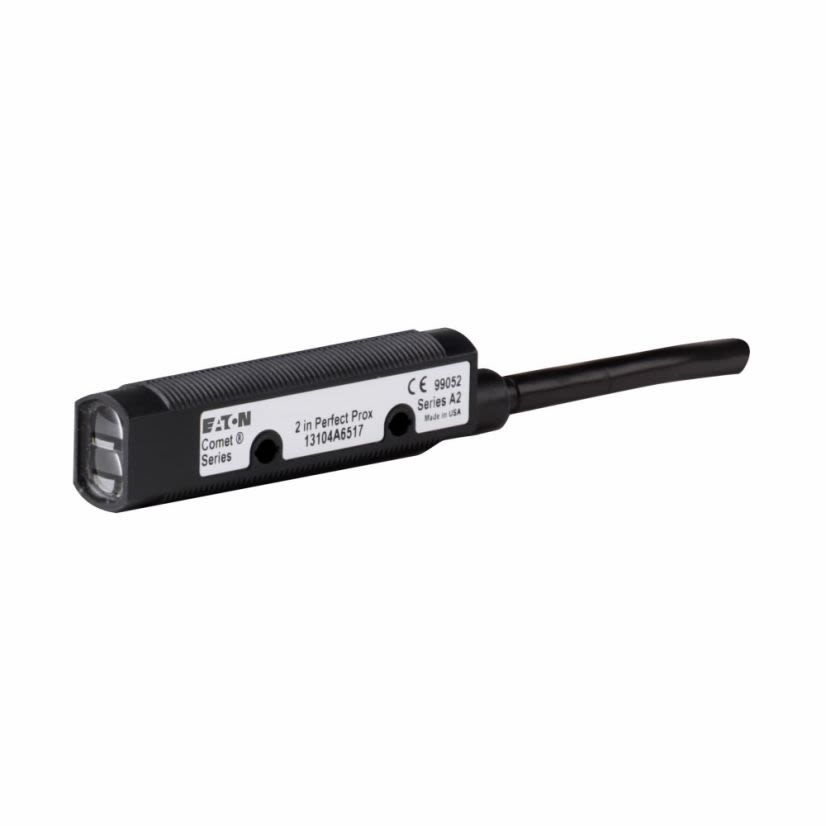

EATON Perfect Prox 13104A6517 Comet 3/4-Wire Forward Viewing Photoelectric Sensor, Tubular Shape, 2 in, Red Laser Sensing Beam, 1/3.5 ms Response, NPN/PNP Open Collector Output
Cutler-Hammer Series 13104A6517
EATON Perfect Prox 13104A6517 Comet 3/4-Wire Forward Viewing Photoelectric Sensor, Tubular Shape, 2 in, Red Laser Sensing Beam, 1/3.5 ms Response, NPN/PNP Open Collector OutputOut of Stockmore info
|
BrandCutler-Hammer Series
MFG #13104A6517
Werner Part #510406
UPC782113823362
Out of Stockmore info
|
BrandCutler-Hammer Series
MFG #13104A6517
Werner Part #510406
UPC782113823362
Product Description
EATON Perfect Prox Photoelectric Sensor, 3/4-Wire Forward Viewing, Series: Comet, Tubular Shape, Background Suppression Sensing Method, 2 in Sensing, Red Laser Sensing Beam, 1/3.5 ms Response, NPN/PNP Open Collector Output, 10 to 30 V DC, 100/250 mA, 1 W Wattage, 50/60 Hz Frequency, 6 ft Cable Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 2.6 in L x 0.47 in W x 0.71 in H Size, NEMA 1/3/4/4X/6/12/13/IP69K Enclosure, -40 to 158 deg F Operating, Surface Mounting
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Connection Type6 ft Cable
Country of OriginMX
Enclosure TypeNEMA 1/3/4/4X/6/12/13/IP69K
Frequency Rating50/60 Hz
ManufacturerEaton
Mounting TypeSurface
Operating Temperature-40 to 158 deg F
Package TypeEACH
SeriesComet
ShapeTubular
Size2.6 in L x 0.47 in W x 0.71 in H
Type / Style3/4-Wire Forward Viewing
Wattage1 W
Documents
Applications
Automation and Logic Control Equipment, Vehicles On-Road PickUp and Delivery Food Applications
Included
1/2-13 Hex Nut and J-Bolt
Warranty
3 years
Features
- Industry standard 18 mm Dia threaded body has flat sides allowing it to be mounted like a tubular sensor or against any flat surface
- Right angle viewing models mount in a depth of only 6/10th of an inch
- Solid polyurethane housing completely encapsulates internal circuits for high resistance to shock and vibration
- Adaptable modulation circuit provides immunity to crosstalk from other closely mounted sensors
- The industry's only background rejection sensors with a 2-wire circuit design
- 4-wire DC sensors offer both NPN and PNP outputs
- Output status indicator visible from a wide 270 deg angle
- PVC cable jacket, structural polyurethane foam housing, polycarbonate lens
- Switch selectable light dark operation
- Lights steady when output is on flashes when short circuit protection is in latch condition
- 100 mA maximum at PNP, 250 mA maximum at NPN output
