Cutler-Hammer Series E49S71EP7

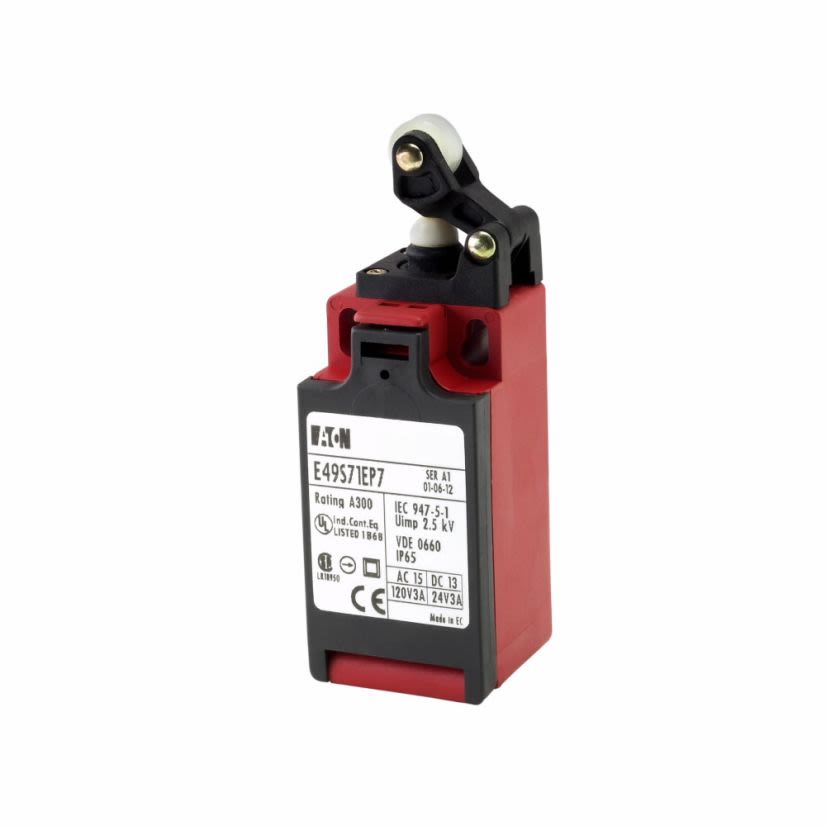

EATON E49S71EP7 Miniature Limit Switch, 600 V AC/24 V DC, 1.5/10 A, Offset Roller Lever Actuator, 1NO-1NC Contact, 1 Poles
Cutler-Hammer Series E49S71EP7
EATON E49S71EP7 Miniature Limit Switch, 600 V AC/24 V DC, 1.5/10 A, Offset Roller Lever Actuator, 1NO-1NC Contact, 1 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #E49S71EP7
Werner Part #2383040
UPC782113742182
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #E49S71EP7
Werner Part #2383040
UPC782113742182
Product Description
EATON Miniature Limit Switch, Series: E49, 600 V AC/24 V DC, 1.5/10 A, 1NO-1NC Contact Configuration, 10 A at 600 V AC, 1.5 A at 24 V DC Contact, 1 Pole, Spring Return Action, Offset Roller Lever Actuator, Screw Connection, NEMA 4/4X/6P/13/IP65 Enclosure, DIN Rail Mounting, 1.22 in L x 1.2 in W x 3.54 in H Size, -22 to 176 deg F Operating, Polyamide
Attributes
Documents
Applications
Warranty
Features
Attributes
ActionSpring Return
Actuator TypeRoller Lever
Connection TypeScrew
Contact Configuration1NO-1NC
Contact Rating10 A at 600 V AC, 1.5 A at 24 V DC
Country of OriginDE
Enclosure TypeNEMA 4/4X/6P/13/IP65
ManufacturerEaton
MaterialPolyamide
Mounting TypeDIN Rail
Number of Poles1
Operating Temperature-22 to 176 deg F
Package TypeEACH
SeriesE49
Size1.22 in L x 1.2 in W x 3.54 in H
Applications
Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other, Commercial / Institutional Buildings / Structures - Power Distribution and Controls, Stationary Machinery and Equipment Outside Factory - Stationary Machinery and Equipment Outside Factory - Other
Warranty
1 year
Features
- Self-extinguishing PA-6 (glass-reinforced, polyamide) enclosure material
- Offset Roller Lever
