Woodhead 120114-0086

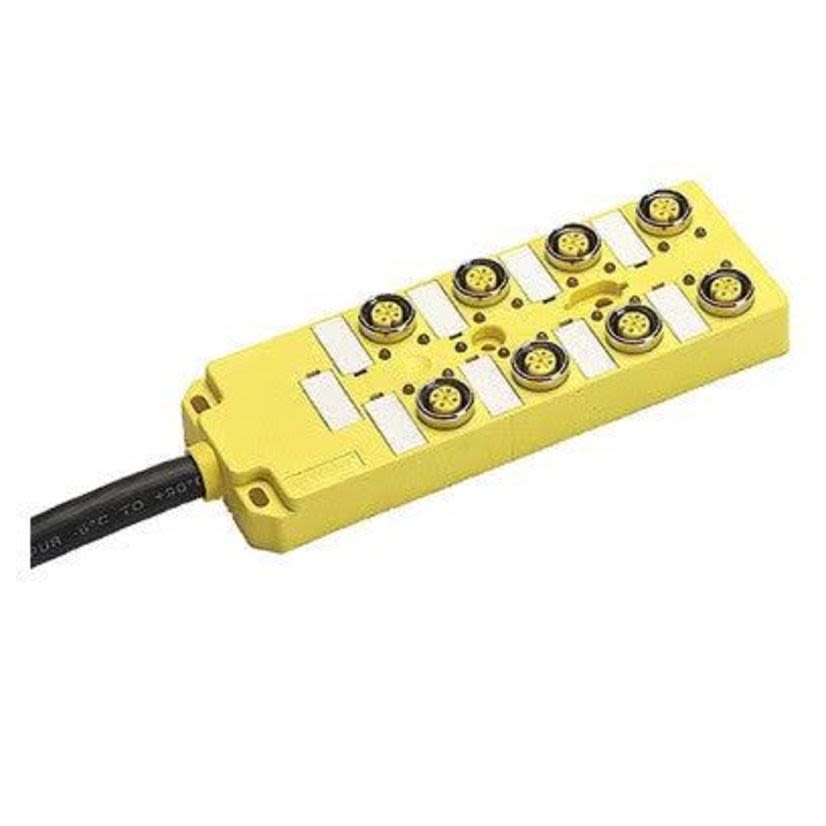

Woodhead Micro-Change 120114-0086 Molded Junction Box, 10 to 30 V DC, 12 A, 5 Poles, 5 Wires
Woodhead 120114-0086
Woodhead Micro-Change 120114-0086 Molded Junction Box, 10 to 30 V DC, 12 A, 5 Poles, 5 WiresNon-stock product. Available to order - lead time may vary.
BrandWoodhead
MFG #120114-0086
Werner Part #3919389
UPC786788489106
Non-stock product. Available to order - lead time may vary.
BrandWoodhead
MFG #120114-0086
Werner Part #3919389
UPC786788489106
Product Description
Woodhead Micro-Change Molded Junction Box, Series: 120114, 10 to 30 V DC, 12 A, 5 Poles, 5 Wires, IP67, Top Mount, NEMA 6, PBT, 161 mm Width, 54 mm Depth
Attributes
Documents
Features
Attributes
Depth54 mm
Enclosure TypeIP67
ManufacturerMolex
MaterialPBT
Mounting TypeTop
NEMA RatingNEMA 6
Number of Poles5
Return & Cancellation PolicyNonreturnable/Noncancellable
Series120114
Width161 mm
Features
- Single keyway
- Copper alloy metal, gold over nickel plating mating
- 8 port
- -25 to 90 deg C temperature rating
- 90 deg orientation, terminal strip home run interface
- M12 bus input/output
- Dual I/O per port
- Parallel functional wiring
- Field wireable home run connection
