Brad 114020A01F120

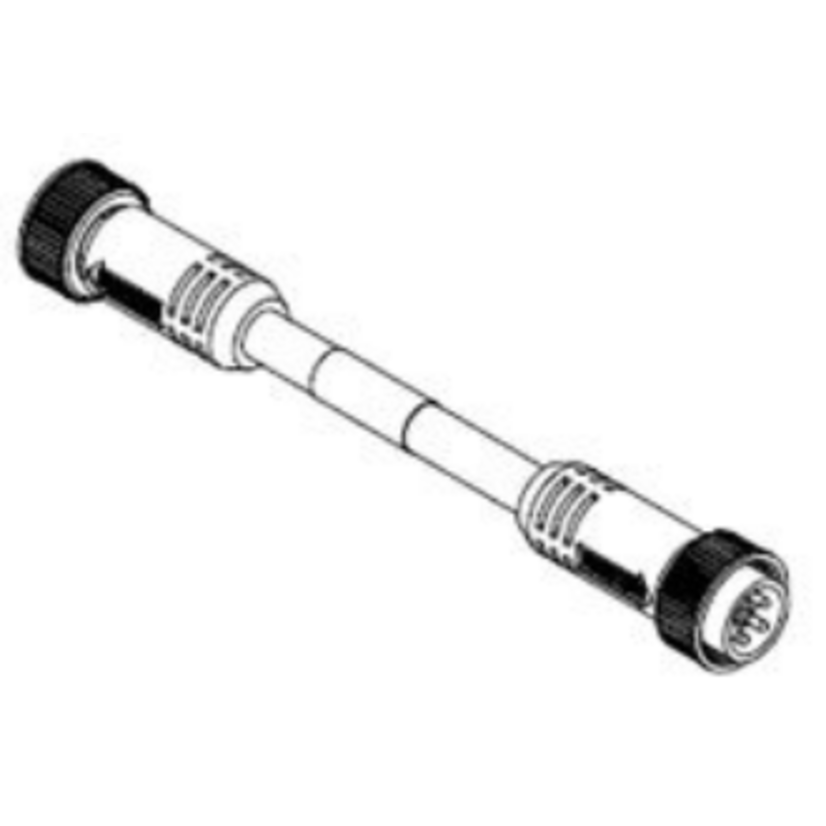

Brad Mini-Change Woodhead 114020A01F120 130010 A-Size Double Ended Cordset, Straight Male x Straight Female Connector, 3.66 m L Cable, 4 Poles, Single Keyway
Brad 114020A01F120
Brad Mini-Change Woodhead 114020A01F120 130010 A-Size Double Ended Cordset, Straight Male x Straight Female Connector, 3.66 m L Cable, 4 Poles, Single KeywayIn Stock: 22more info
|
BrandBrad
MFG #114020A01F120
Werner Part #222179
UPC786788438104
In Stock: 22more info
|
BrandBrad
MFG #114020A01F120
Werner Part #222179
UPC786788438104
Product Description
Brad Mini-Change Woodhead Cordset, A-Size Double Ended, Series: 130010, Straight Male x Straight Female Connector, PVC Connector, 16 AWG STOOW Cable, 3.66 m Cable Length, PVC Cable, 4 Pole, Single Keyway, 600 V AC, 10 A, Black/White/Red/Green Wire Pin
Attributes
Documents
Features
Attributes
Cable Length3.66 m
Cable MaterialPVC
Connector MaterialPVC
Connector TypeStraight Male x Straight Female
Country of OriginMX
KeywaySingle
LengthCable: 3.66 m
ManufacturerMolex
Number of Poles4
Package TypePIECE
Series130010
Type / StyleA-Size Double Ended Straight
Type of Cable16 AWG STOOW
Wire Pin ColorsBlack/White/Red/Green
Documents
Features
- This sensor cable comes with a yellow PVC jacket, gold plated over nickel copper alloy contacts and black epoxy coated zinc coupling nut
- IP67 prevents the entry of water during temporary submersion at a limited depth
- Patented Quad-Beam socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity
- Maintains consistent pressure on the male pin to ensure optimum conductivity
- High performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
- Molded key indicator
- Easier alignment and mating of connector
- Provides 100 lb minimum cable strain relief radiates stress in side-loaded conditions
