Woodhead 120103-0001

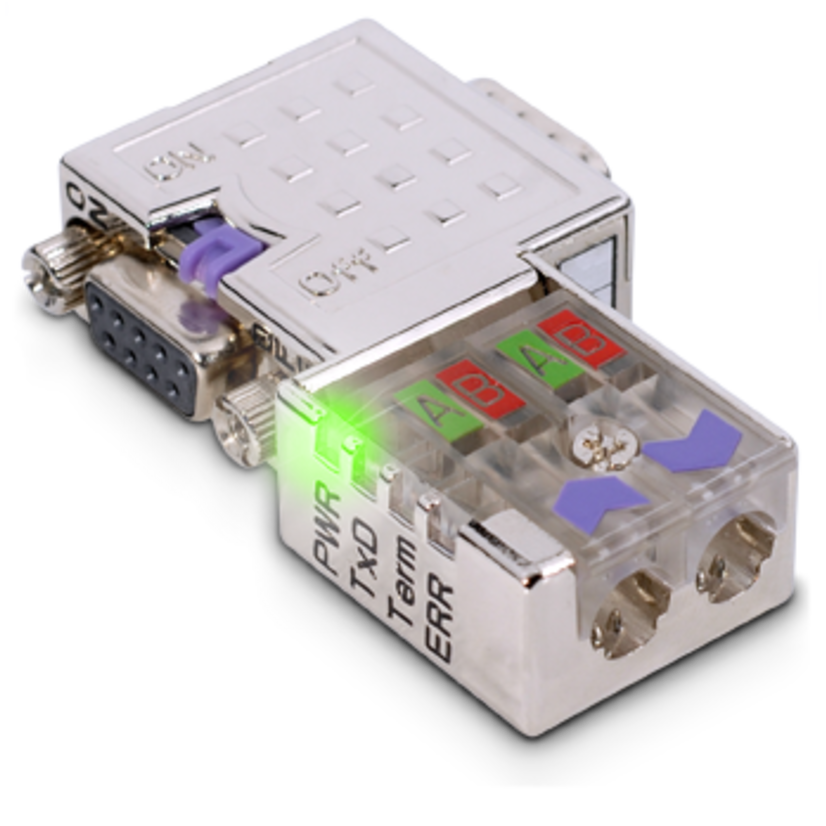

Woodhead 120103-0001 Field Attachable D-Sub Connector With Diagnostics LEDs, Programming Port, 30 V AC, 4 A
Woodhead 120103-0001
Woodhead 120103-0001 Field Attachable D-Sub Connector With Diagnostics LEDs, Programming Port, 30 V AC, 4 AOut of Stockmore info
|
BrandWoodhead
MFG #120103-0001
Werner Part #1825699
UPC786788535308
Out of Stockmore info
|
BrandWoodhead
MFG #120103-0001
Werner Part #1825699
UPC786788535308
Product Description
Woodhead Field Attachable D-Sub Connector, Series: 120103, 30 V AC, 4 A, Environmental Conditions: IP67
Attributes
Documents
Features
Attributes
ManufacturerMolex
Series120103
Type / StyleField Attachable Connector
Weight0.20 lbs
Features
- All metal construction for harsh environments
- Fully shielded for high noise immunity
- IDC connections for fast and reliable installations
- Captive single-screw mechanism - no loose parts
- High transfer rate - 12 MBaud
- 4 LEDs for fast diagnostics and health status of the bus and device (diagnostic versions only)
- Terminator monitor indicates if terminator is missing (diagnostics versions only)
- Integrated switchable terminators
- Transparent cable slots and covers for high visibility
- Integrated programming/diagnostic port (on 90 deg/45 deg formats)
- 8 mm cable diameter
- Solid core Profibus type a, EN50170 cable
- 4-40 UNC/0.4Nm screw/tightening torque
- 17 mm outer sheath
- 11 mm shield
- Die-cast zinc connector body
- -20 to 75 deg C temperature
- 90 deg orientation
