Appleton EFS150-F1

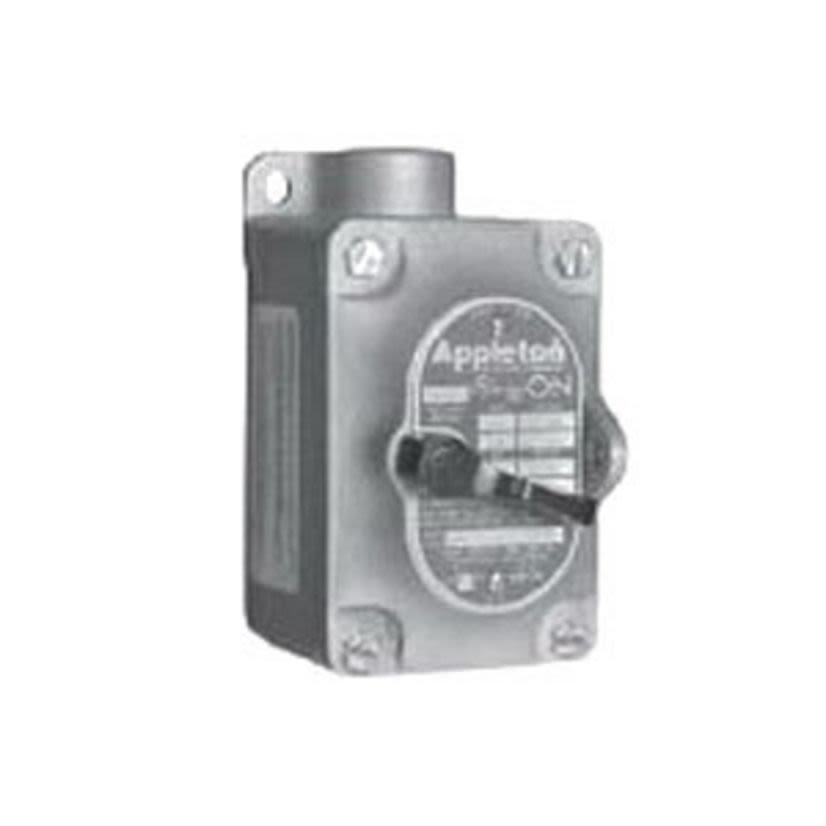

Appleton EFS150-F1 1-Gang Dead End Non-Sealed Tumbler Switch Control Station, 120/277 V AC, 20 A, NEMA 7CD/9EFG NEMA Rating
Appleton EFS150-F1
Appleton EFS150-F1 1-Gang Dead End Non-Sealed Tumbler Switch Control Station, 120/277 V AC, 20 A, NEMA 7CD/9EFG NEMA RatingNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EFS150-F1
Werner Part #1113677
UPC781381278751
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EFS150-F1
Werner Part #1113677
UPC781381278751
Product Description
Appleton Tumbler Switch Control Station, 1-Gang Dead End Non-Sealed, Series: EFS, 120/277 V AC, 20 A, 1 Pole, Front Operated Lever Actuator, NEMA 7CD/9EFG, Surface Mounting, Malleable Iron, Triple Coated, 6.13 in H x 3 in W x 4.53 in D Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Actuator TypeFront Operated Lever
Country of OriginMX
Dimensions6.13 in H x 3 in W x 4.53 in D
FinishTriple Coated
ManufacturerEmerson Electric
MaterialMalleable Iron
Mounting TypeSurface
NEMA RatingNEMA 7CD/9EFG
Number of Poles1
Package TypeEACH
SeriesEFS
Type / Style1-Gang Dead End Non-Sealed
Applications
Used in classified areas where ignitable vapors, gases or highly combustible dusts are present, installation in chemical plants, petrochemical plants, refineries and other process industries
Included
Internal Ground Screw
Warranty
5 Years
Features
- Enclosures have external mounting lugs for ease of mounting
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Enclosures furnished with internal ground screw
- Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure
- Stainless steel hex head cap screws for attaching cover to mounting enclosure
- Choice of front operating or side rocker arm handle-each may be locked in ON or OFF position
- Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements
- For use in classified areas where ignitable vapors, gases or highly combustible dusts are present
- Explosion proof dust-ignitionproof
