Killark XCS-0S2A1

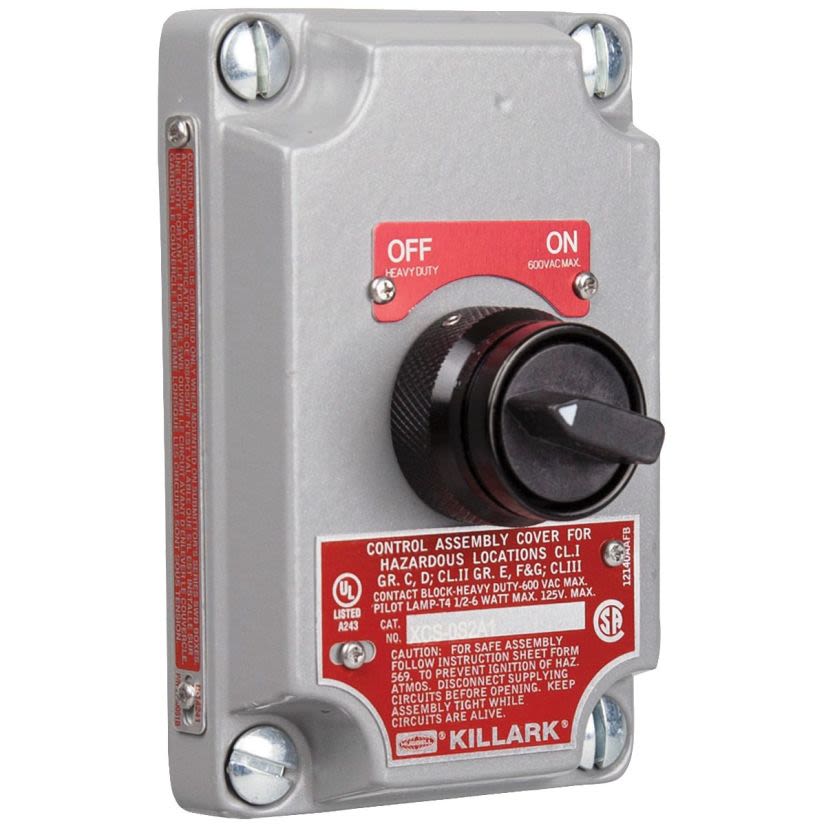

Killark XCS-0S2A1 XCS Series 2-Position Selector Switch Cover Assembly, 600 V AC, 10 A, 1NO-NC Contact, 1 Operators, NEMA 7CD/9EFG NEMA Rating
Killark XCS-0S2A1
Killark XCS-0S2A1 XCS Series 2-Position Selector Switch Cover Assembly, 600 V AC, 10 A, 1NO-NC Contact, 1 Operators, NEMA 7CD/9EFG NEMA RatingInventory Not Available
Inventory Not Available
Product Description
Killark, XCS-0S2A1, Selector Switch Cover Assembly, 2-Position, Series: XCS Series, 600 V AC, 10 A, 1 Pole, 1 Operators, 1NO-NC Contact Configuration, Maintained Contact Mode, 12 A at 600 V AC Contact, Legend: OFF/ON, 2-Position Selector Switch Actuator, LED Indicator, NEMA 7CD/9EFG NEMA Rating, Cast Aluminum, Black, 4-5/8 in H x 3 in W x 1-1/16 in D Dimensions
Attributes
Documents
Applications
Features
Attributes
Actuator Type2-Position Selector Switch
ColorBlack
Contact Configuration1NO-NC
Contact ModeMaintained
Contact Rating12 A at 600 V AC
Country of OriginUS
Dimensions4-5/8 in H x 3 in W x 1-1/16 in D
ManufacturerHubbell
MaterialCast Aluminum
NEMA RatingNEMA 7CD/9EFG
Number of Poles1
Package TypeEACH
SeriesXCS Series
Type / Style2-Position
Documents
Applications
For hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fiber or flyings, installations at petroleum refineries, chemical and petrochemical plants and other processing or storage facilities
Features
- Operating shaft in selector switches is stainless steel
- 0.55 A at 125 VDC, 0.275 A at 250 VDC inrush and breaking, 2.5 A at 125 VDC, 2.5 A at 250 VDC carrying
- Push button, selector switches and pilot light operator bodies are copper-free aluminum
- Contact blocks are rated heavy duty, 600 VAC max
- Covers are cast copper free aluminum alloy
- 60 A at 120 VAC, 30 A at 240 VAC, 15 A at 480 VAC, 12 A at 600 VAC inrush, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC breaking, 10 A at 120/240/480 VAC carrying contact
- Internal ground screw
- 2-position
- Ground flange joint between bolted cover and box provide required flame path
