Appleton EFDCB175102

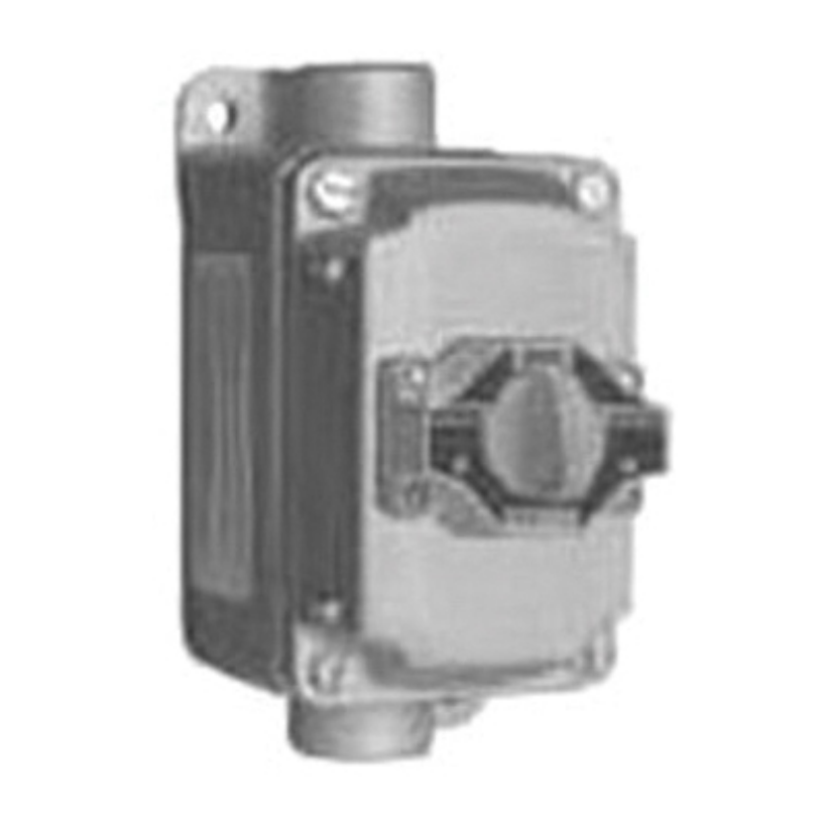

Appleton Contender EFDCB175102 EFDB 1-Gang 2-Circuit Selector Switch, NEMA 3/7B/7C/7D/9E/9F/9G NEMA Rating
Appleton EFDCB175102
Appleton Contender EFDCB175102 EFDB 1-Gang 2-Circuit Selector Switch, NEMA 3/7B/7C/7D/9E/9F/9G NEMA RatingNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EFDCB175102
Werner Part #3979916
UPC781381700917
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EFDCB175102
Werner Part #3979916
UPC781381700917
Product Description
Appleton Contender Selector Switch, 1-Gang 2-Circuit, Series: EFDB, Maintained Contact Mode, 10 A at 600 V AC Contact, Legend: Auto/Hand/Off, Screw Terminal Connection, NEMA 3/7B/7C/7D/9E/9F/9G NEMA Rating, Surface Mounting, Malleable Iron, Triple Coated, 3/4 in Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Connection TypeScrew Terminal
Contact ModeMaintained
Contact Rating10 A at 600 V AC
Country of OriginMX
Dimensions3/4 in
FinishTriple Coated
ManufacturerEmerson Electric
MaterialMalleable Iron
Mounting TypeSurface
NEMA RatingNEMA 3/7B/7C/7D/9E/9F/9G
Package TypeEACH
SeriesEFDB
Type / Style1-Gang 2-Circuit
Documents
Applications
For used to conjunction with contactors or magnetic starters for remote control of motors
Included
Internal Ground Screw
Warranty
1 Year
Features
- Eliminate need for adding sealing fittings and compound at each conduit entrance
- Selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements
- Assures positive contact and long, trouble free operation
- Provide circuit control and/or selection
- EFD/EFDB and EDS factory sealed control stations confine arcing of device within the enclosure, preventing ignition of ignitable atmospheres during control operation of motors and other equipment
