Crouse-Hinds series EFS215

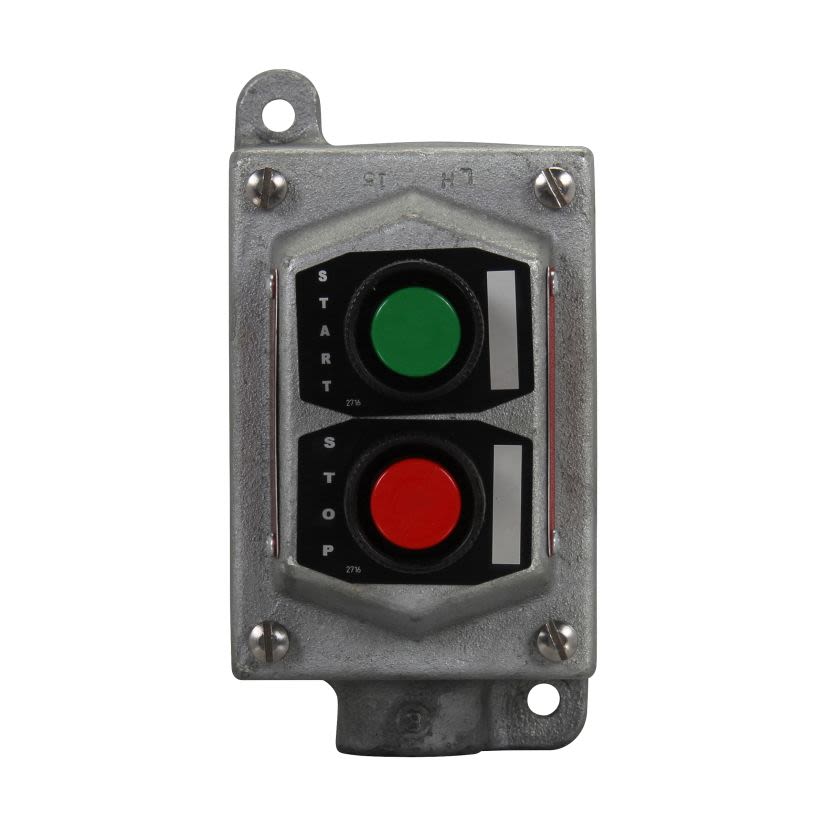

Crouse-Hinds FlexStation EFS215 1-Gang Dead End Factory Sealed Heavy Duty Pushbutton Control Station, 600 VAC, 1NO-1NC Contact, 1 Operator, 3/7B/7C/7D/9E/9F/9G NEMA Rating
Crouse-Hinds series EFS215
Crouse-Hinds FlexStation EFS215 1-Gang Dead End Factory Sealed Heavy Duty Pushbutton Control Station, 600 VAC, 1NO-1NC Contact, 1 Operator, 3/7B/7C/7D/9E/9F/9G NEMA RatingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Crouse-Hinds FlexStation Pushbutton Control Station, 1-Gang Dead End Factory Sealed Heavy Duty, Series: EFS, 600 VAC, 1 Operator, 1NO-1NC Contact Configuration, Front Operated Button Operator, Legend: STOP/START, Thread Connection, 3/7B/7C/7D/9E/9F/9G NEMA Rating, Surface Mounting, Feraloy Iron Alloy, Electro-Galvanized/Aluminum Acrylic Painted, 5-7/8 in L x 3-1/2 in W x 2-1/2 in H Dimensions
Attributes
Documents
Warranty
Applications
Features
Attributes
Connection TypeThread
Contact Configuration1NO-1NC
Country of OriginMX
Dimensions5-7/8 in L x 3-1/2 in W x 2-1/2 in H
Enclosure TypeWith pushbuttons
FinishElectro-Galvanized/Aluminum Acrylic Painted
GTIN782274000000
Height5.25 inch
Length5.9 inch
ManufacturerEaton
MaterialFeraloy Iron Alloy
Mounting TypeSurface
NEMA Rating3/7B/7C/7D/9E/9F/9G
Operator TypeFront Operated Button
SeriesEFS
Type / StyleDead End
Weight8.39 lbs
Width3.5 inch
Documents
Warranty
Limited
Applications
Industrial Facilities and Factories, Facility, Power Distribution and Control, Chemical Plants, Oil and Gas Refineries, Paint and Varnish Manufacturing Plants, Gasoline Bulk Loading, Terminals, Grain Elevators, Grain Processing and Wet Location Applications
Features
- Reduce installation problem
- Eliminate external seals
- Lower installation cost
- Improve safety
- Are used with general purpose snap and pushbutton type switches
- Standard neoprene covers for front operated pushbuttons prevents accumulation of dirt and entrance of water around operating shafts
- Mounting lugs and taper tapped hubs with integral bushing
- Large machine screws for fastening covers to bodies
- Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and all selector switch covers
- Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
- Close tolerances in machining of wide, mating flanges and journaled shafts and bearings for front button operation, produces flame tightness of enclosure joints
- On enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flame tightness
- When stop is indicated, button is automatically red, when start is indicated, button is automatically green, otherwise, black buttons are standard
- Two circuit start-stop
- 3/4 in hub
- Explosionproof, Dust ignitionproof and rain tight
