Crouse-Hinds series DSD918 S769

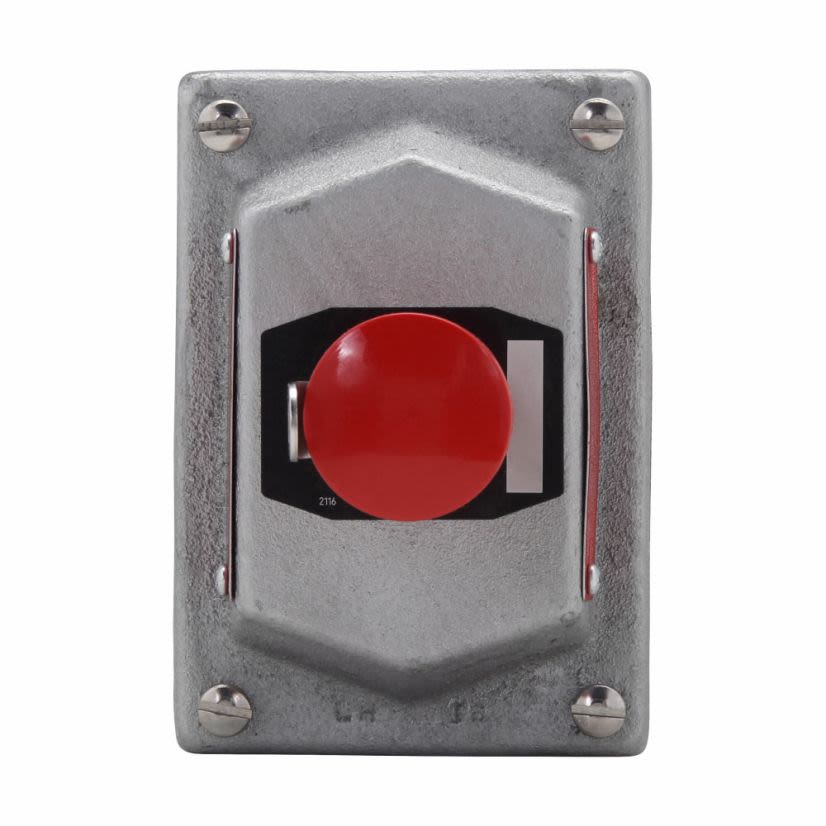

Crouse-Hinds Crouse-Hinds DSD918 S769 Factory Sealed Heavy Duty Pushbutton Cover and Sub-Assembly Device, 600 VAC, 10 A, 1NO-1NC Contact, 3/7B/7C/7D/9E/9F/9G NEMA Rating
Crouse-Hinds series DSD918 S769
Crouse-Hinds Crouse-Hinds DSD918 S769 Factory Sealed Heavy Duty Pushbutton Cover and Sub-Assembly Device, 600 VAC, 10 A, 1NO-1NC Contact, 3/7B/7C/7D/9E/9F/9G NEMA RatingNon-stock product. Available to order - lead time may vary.
BrandCrouse-Hinds series
MFG #DSD918 S769
Werner Part #3853778
UPC782274020976
Non-stock product. Available to order - lead time may vary.
BrandCrouse-Hinds series
MFG #DSD918 S769
Werner Part #3853778
UPC782274020976
Product Description
Crouse-Hinds Crouse-Hinds Pushbutton Cover and Sub-Assembly Device, Factory Sealed Heavy Duty, Series: DSD, 600 VAC, 10 A, 1NO-1NC Contact Configuration, Maintained Contact Mode, Front Operator, 3/7B/7C/7D/9E/9F/9G NEMA Rating, Feraloy Iron Alloy, Electro-Galvanized/Aluminum Acrylic Painted
Attributes
Documents
Applications
Features
Attributes
Contact Configuration1NO-1NC
Contact ModeMaintained
Country of OriginSri Lanka
FinishElectro-Galvanized/Aluminum Acrylic Painted
ManufacturerEaton
MaterialFeraloy Iron Alloy
NEMA Rating3/7B/7C/7D/9E/9F/9G
Operator TypeFront
Package TypeEACH
SeriesDSD
Type / StyleFactory Sealed Heavy Duty
Documents
Applications
Industrial Facilities and Factories, Facility, Power Distribution and Control, Industrial Facilities and Factories Facility, Power Distribution and Control Application
Features
- Large machine screws for fastening covers to bodies
- Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
- Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and all selector switch covers
- For covers with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flametightness
- Accurately ground flange for flame tight joint when mated with ground flange on backbox
- Used on EDS/EFS series back box
- 1-circuit universal
- 1-cover button
- Maintained contact mushroom head with lockout and guard
