Killark FXCS-0A15

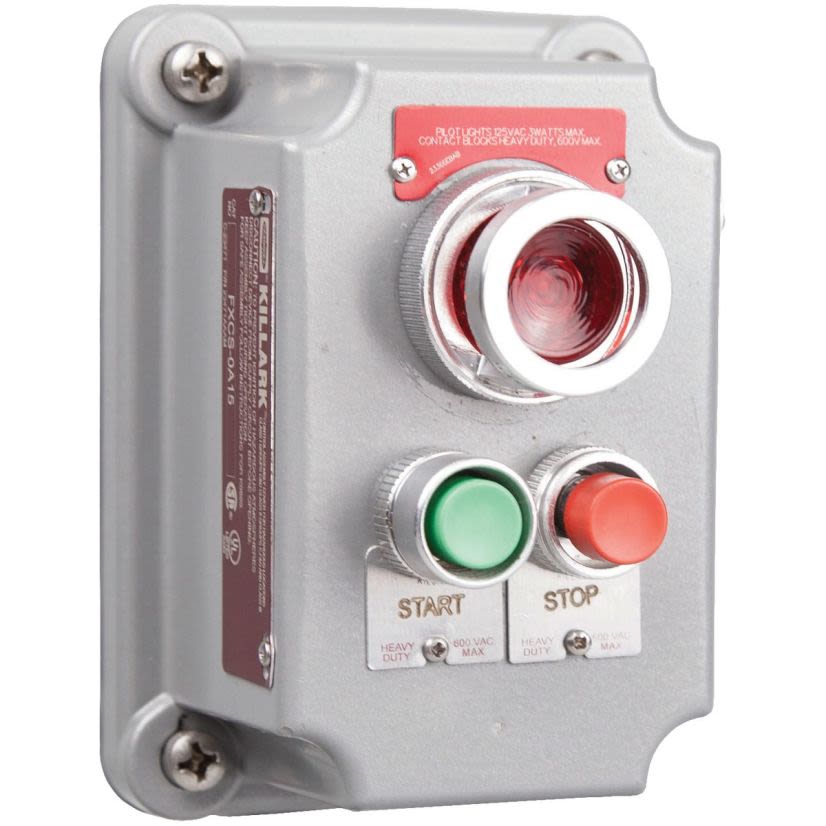

Killark FXCS-0A15 FXCS Factory Sealed Control Station, 120/600 V AC, 10 A, 1NO-1NC Contact, 3 Operators, NEMA 3/7/9 NEMA Rating
Killark FXCS-0A15
Killark FXCS-0A15 FXCS Factory Sealed Control Station, 120/600 V AC, 10 A, 1NO-1NC Contact, 3 Operators, NEMA 3/7/9 NEMA RatingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Killark, FXCS-0A15, Control Station, Factory Sealed, Series: FXCS, 120/600 V AC, 10 A, 3 W Wattage, 2 Pole, 3 Operators, 1NO-1NC Contact Configuration, Momentary Contact Mode, Legend: START, STOP, Dual Pushbutton Actuator, LED Pilot Light Indicator, NEMA 3/7/9 NEMA Rating, -4 to 104 deg F Operating, Aluminum, Green/Red, 5.3125 in H x 3.6875 in W x 2.59 in D Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Actuator TypeDual Pushbutton
ColorGreen/Red
Contact Configuration1NO-1NC
Contact ModeMomentary
Country of OriginUS
Dimensions5.3125 in H x 3.6875 in W x 2.59 in D
ManufacturerHubbell
MaterialAluminum
NEMA RatingNEMA 3/7/9
Number of Poles2
Operating Temperature-4 to 104 deg F
Package TypeEACH
SeriesFXCS
Type / StyleFactory Sealed
Wattage3 W
Documents
Applications
Used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices, indoor and outdoor applications
Included
Pilot Light
Warranty
1 Year
Features
- Eliminates external sealing requirements
- NEMA 3 weatherproof
- Color coded wiring with more wiring space for easier field installation
- Stainless steel captive screws for cover assembly
- Lockout accessory available must be factory installed
- Ground boss for grounding in the splice box
- Operating shaft in both push buttons and selector switches are stainless steel
