Crouse-Hinds series EDSCM21

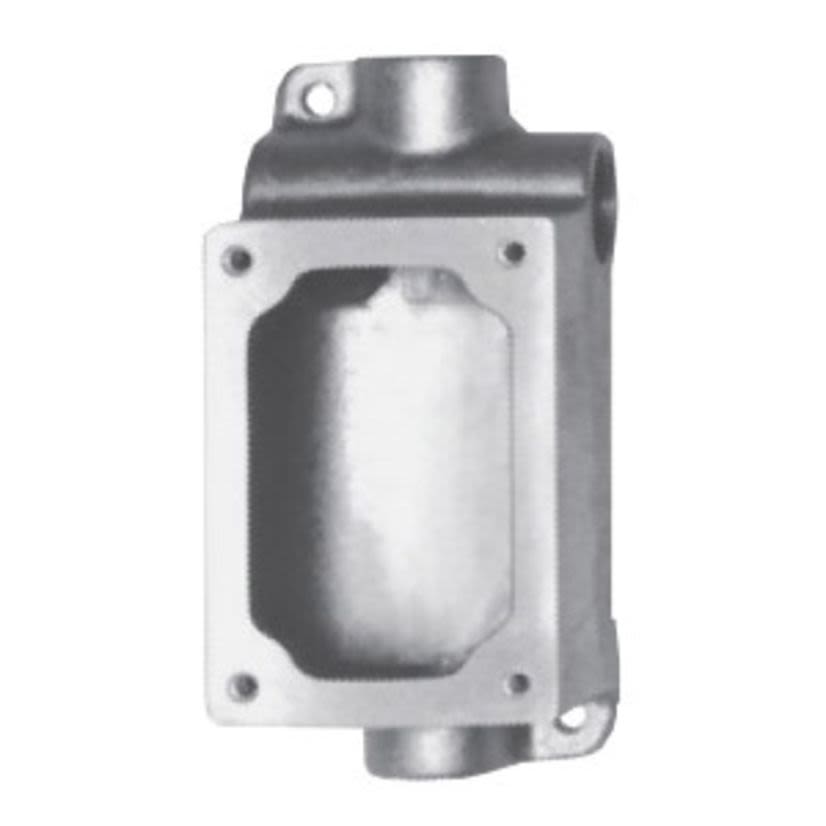

Crouse-Hinds FlexStation EDSCM21 1-Gang Feed-Through Modular Control Device Box, For Use With DSD Device Cover, NEMA 3/7BCD/9EFG NEMA Rating, Aluminum
Crouse-Hinds series EDSCM21
Crouse-Hinds FlexStation EDSCM21 1-Gang Feed-Through Modular Control Device Box, For Use With DSD Device Cover, NEMA 3/7BCD/9EFG NEMA Rating, AluminumInventory Not Available
Inventory Not Available
Product Description
Crouse-Hinds FlexStation Modular Control Device Box, 1-Gang Feed-Through, Series: EDSCM, For Use With: DSD Device Cover, NEMA 3/7BCD/9EFG NEMA Rating, Aluminum, Natural, 3-1/2 in W x 3-5/16 in D x 7-9/16 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Country of OriginSri Lanka
Dimensions3-1/2 in W x 3-5/16 in D x 7-9/16 in H
FinishNatural
ManufacturerEaton
MaterialAluminum
NEMA RatingNEMA 3/7BCD/9EFG
Package TypeEACH
SeriesEDSCM
Suitable For Use WithDSD Device Cover
Type / Style1-Gang through Feed
Documents
Applications
Industrial Facilities and Factories, Facility, Power Distribution and Control, For use with EDS series control station Applications
Features
- Conjunction with magnetic starters or contactors for remote control and monitoring motors
- Manual starting and stopping of small AC or DC motors
- Controlling and supplying energy to portable electrical devices such as motor-generator sets, compressors, conveyors, portable tools and more
- Reduce installation costs, a multi-gang device assembly can be installed in less time than several single gang units
- Seals not required between gangs
- Improved appearance, no exposed conduit runs between devices
- Lightweight, fifteen-gang aluminum device body can be installed by one person
- Mounting feet are provided on the top and bottom of every gang to facilitate installation
- Two and three gang tandem bodies have 1-1/4 in through feed inward horizontal hubs and 1 in or 2 in vertical through feed hubs, pipe plugs are installed in one horizontal hub and both vertical hubs
- Single gang device bodies have 1 in through feed inward horizontal hubs and 3/4 in through feed vertical hubs, pipe plugs are installed in one horizontal hub and both vertical hubs
- All hubs are taper tapped and have integral bushings
- Close nipples, which are used to join two or more device bodies together, are furnished with EDSCM 21, 32, 33, 62 and 63 units
- Any combination of bodies can be joined together horizontally
- Explosionproof, dust-ignitionproof and raintight
- 3/4 in through feed hub
