Cutler-Hammer Series V211K4CJ

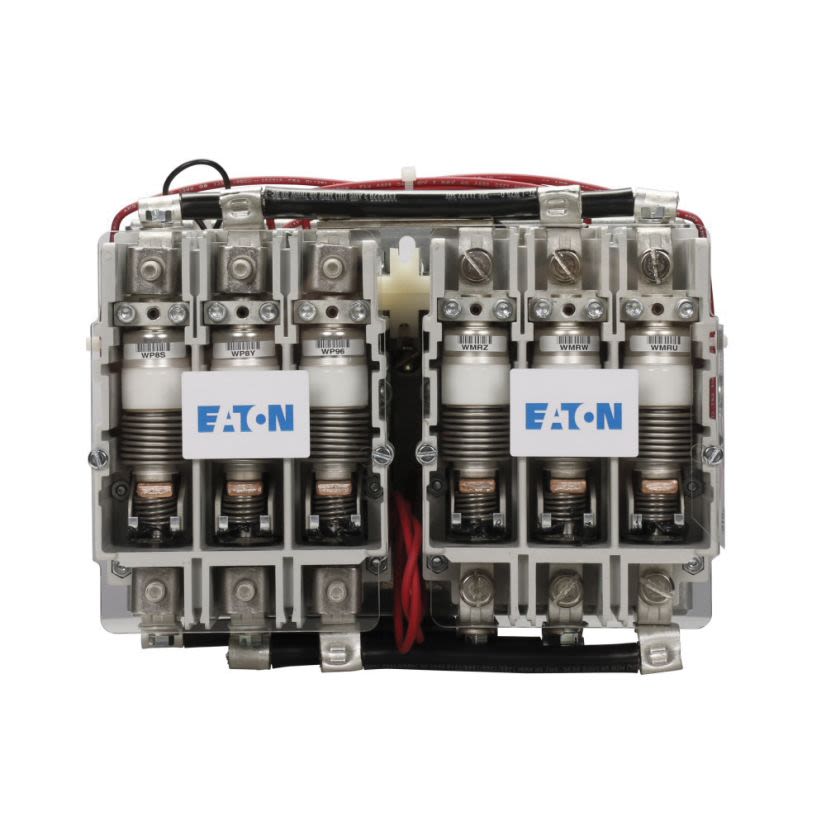

EATON V211K4CJ Reversing Vacuum Contactor, 110/120 V AC V Coil, 135 A, 1NC Contact, 3 Poles
Cutler-Hammer Series V211K4CJ
EATON V211K4CJ Reversing Vacuum Contactor, 110/120 V AC V Coil, 135 A, 1NC Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Vacuum Contactor, Reversing, 110/120 V AC Coil, 135 A Maximum Load Current, 40 hp Coil, 3 Pole, 50/60 Hz Frequency, 1NC Contact Configuration, SZ 4 Size, 4.83 in W x 5.96 in D x 6.63 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Coil Power Rating40 hp
Coil Voltage110/120 V AC
Contact Configuration1NC
Contact FormReversing
Country of OriginUS
Dimensions4.83 in W x 5.96 in D x 6.63 in H
Enclosure TypeNEMA 4
Frequency Rating50/60 Hz
Full Load CurrentMax: 135 A
ManufacturerEaton
Maximum Load Current135 A
Number of Poles3
Package TypeEACH
SizeSZ 4
Documents
Applications
For full voltage control of 3-ph squirrel cage motors, motor, power control equipment applications
Warranty
1 year
Features
- Rugged, compact and lightweight
- Quiet operation
- Long service life
- 40 hp at 200 VAC, 50 hp at 230 VAC, 75 hp at 380 VAC, 100 hp at 460 VAC, 100 hp at 575 VAC power rating
