Cutler-Hammer Series XTCE018C10A

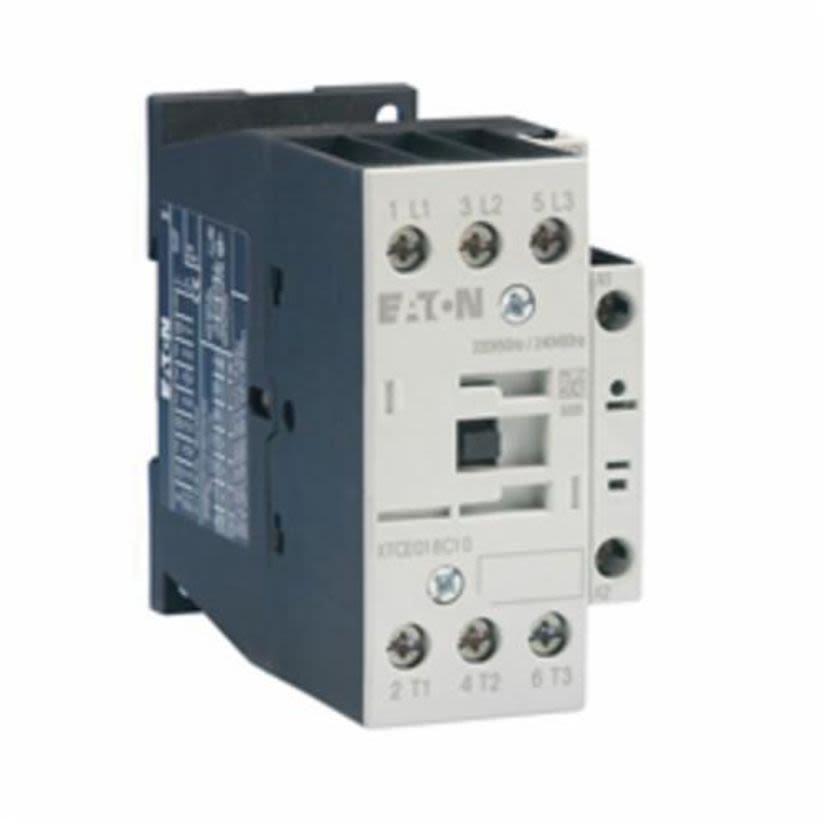

EATON XTCE018C10A Full Voltage Non-Reversing IEC Contactor, 110/120 V AC V Coil, 18 A, 1NO Contact, 3 Poles
Cutler-Hammer Series XTCE018C10A
EATON XTCE018C10A Full Voltage Non-Reversing IEC Contactor, 110/120 V AC V Coil, 18 A, 1NO Contact, 3 PolesIn Stock: 5more info
|
BrandCutler-Hammer Series
MFG #XTCE018C10A
Werner Part #3963343
UPC782116351350
In Stock: 5more info
|
BrandCutler-Hammer Series
MFG #XTCE018C10A
Werner Part #3963343
UPC782116351350
Product Description
EATON IEC Contactor, Full Voltage Non-Reversing, Series: XT Series, 110/120 V AC Coil, 18 A Maximum Load Current, 2 hp at 115/200 VAC 1 ph, 3 hp at 230 VAC 1 ph, 5 hp at 200/230 VAC 3 ph, 10 hp at 460 VAC 3 ph, 15 hp at 575 VAC 3 ph Coil, 3 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 45 mm Size, Screw Terminal, -13 to 122 deg F Operating, 4 x 3-1/2 x 2 in Dimensions
Attributes
Documents
Applications
Features
Attributes
Coil Power Rating2 hp at 115/200 VAC 1 ph, 3 hp at 230 VAC 1 ph, 5 hp at 200/230 VAC 3 ph, 10 hp at 460 VAC 3 ph, 15 hp at 575 VAC 3 ph
Coil Voltage110/120 V AC
Contact Configuration1NO
Country of OriginRO
Dimensions4 x 3-1/2 x 2 in
Frequency Rating50/60 Hz
Full Load CurrentMax: 18 A
ManufacturerEaton
Maximum Load Current18 A
Number of Poles3
Operating Temperature-13 to 122 deg F
Package Height2 in
Package Length4 in
Package TypeEACH
Package Weight0.4 lb
Package Width3.5 IN
SeriesXT Series
Size45 mm
Terminal TypeScrew
Type / StyleC-Frame Non-Reversing
Applications
Electrical Assemblies, Panels and EOEMs and Other Applications
Features
- IP20 finger and back of hand proof
