Cutler-Hammer Series XTCS400M22A

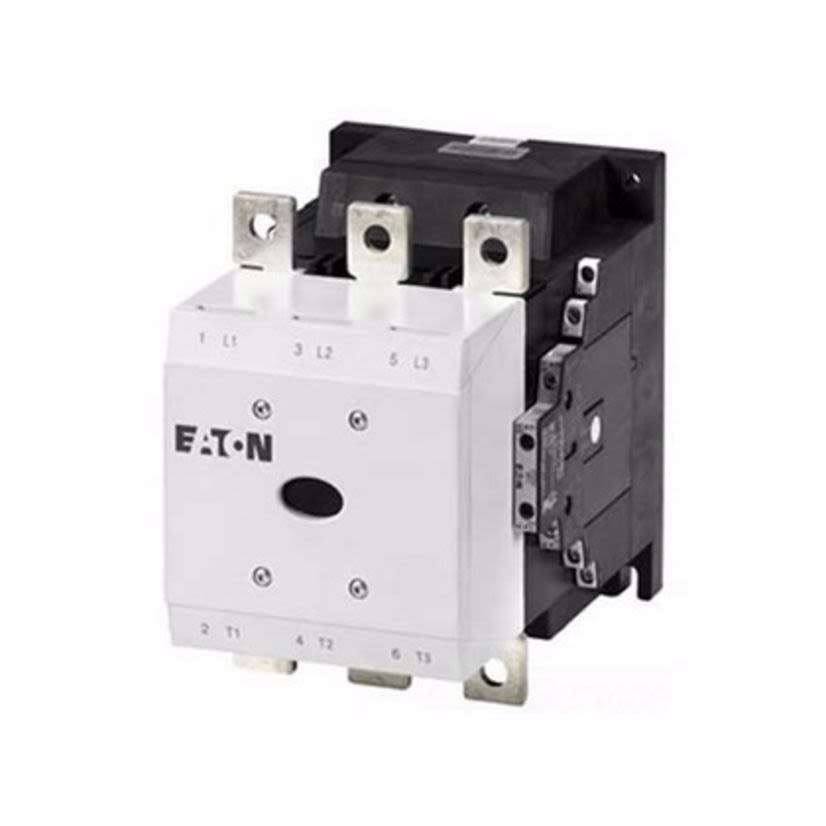

EATON XTCS400M22A XTCS S Series Full Voltage IEC Contactor, 110/120 V AC V Coil, 400 A, 2NO-2NC Contact, 3 Poles
Cutler-Hammer Series XTCS400M22A
EATON XTCS400M22A XTCS S Series Full Voltage IEC Contactor, 110/120 V AC V Coil, 400 A, 2NO-2NC Contact, 3 PolesOut of Stockmore info
|
BrandCutler-Hammer Series
MFG #XTCS400M22A
Werner Part #3970885
UPC4015082741952
Out of Stockmore info
|
BrandCutler-Hammer Series
MFG #XTCS400M22A
Werner Part #3970885
UPC4015082741952
Product Description
EATON IEC Contactor, Full Voltage, Series: XTCS S Series, 110/120 V AC Coil, 400 A Maximum Load Current, 135 kW Coil, 3 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 2NO-2NC Contact Configuration, 160 mm Size, Screw Terminal, DIN Rail/Panel Mounting, 10 x 7-1/2 x 10 in Dimensions
Attributes
Documents
Applications
Features
Attributes
Coil Power Rating135 kW
Coil Voltage110/120 V AC
Contact Configuration2NO-2NC
Country of OriginRO
Dimensions10 x 7-1/2 x 10 in
Frequency Rating50/60 Hz
ManufacturerEaton
Maximum Load Current400 A
Mounting TypeDIN Rail/Panel
Number of Poles3
Package TypeEACH
SeriesXTCS S Series
Size160 mm
Terminal TypeScrew
Applications
Electrical Assemblies, Panels and OEMs Applications
Features
- 125 kW at 125 VAC 3-phase, 200 kW at 380/400 VAC 3-phase, 240 kW at 415 VAC 3-phase, 344 kW at 660/690 VAC 3-phase, 135 kW at 1000 vac 3-phases coil power rating
