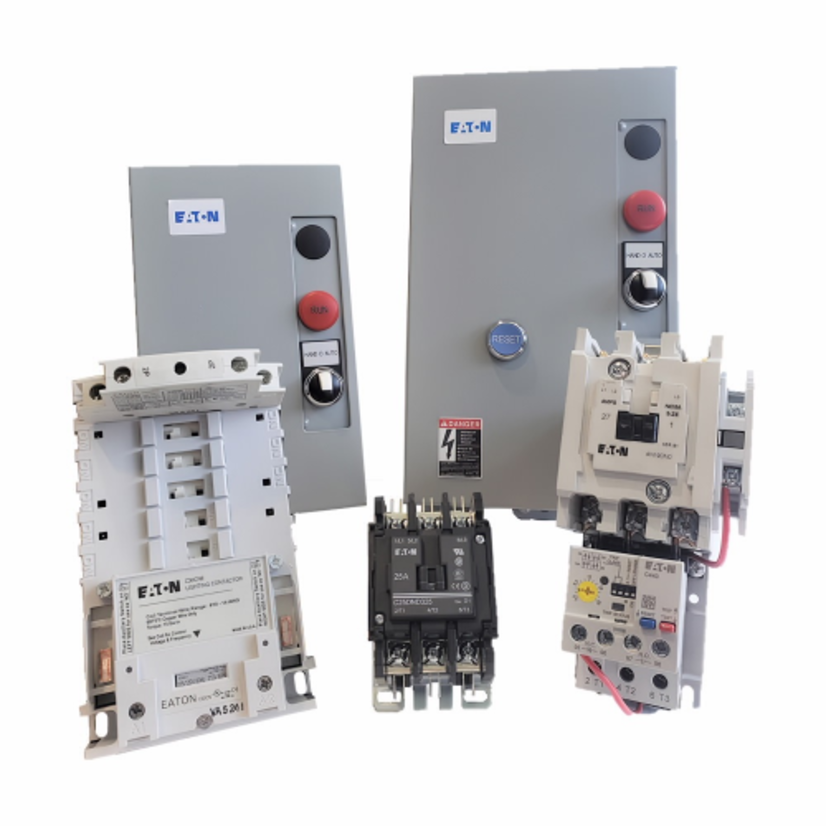

Cutler-Hammer Series ECL03C1A6A
EATON ECL03C1A6A CN35 Non-Combination Electrically Held Lighting Contactor, 110/120 V AC V Coil, 30 A, 1NO Contact, 6 Poles
Cutler-Hammer Series ECL03C1A6A
EATON ECL03C1A6A CN35 Non-Combination Electrically Held Lighting Contactor, 110/120 V AC V Coil, 30 A, 1NO Contact, 6 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Lighting Contactor, Non-Combination Electrically Held, Series: CN35, 110/120 V AC Coil, 30 A Maximum Load Current, 6 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 1 Auxiliary Contacts, 30 A Contact, 45 mm Size, NEMA 1 Enclosure, Steel, Gray, Polyester Urethane Powder Coated/Painted, 7.62 in L x 6 in W x 12.6 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Coil Voltage110/120 V AC
ColorGray
Contact Configuration1NO
Contact FormNon-Combination
Contact Rating30 A
Country of OriginUS
Dimensions7.62 in L x 6 in W x 12.6 in H
Enclosure TypeNEMA 1
FinishPolyester Urethane Powder Coated/Painted
Frequency Rating50/60 Hz
Full Load CurrentMax: 30 A
ManufacturerEaton
MaterialSteel
Maximum Load Current30 A
Number of Auxiliary Contacts1
Number of Poles6
Package TypeEACH
SeriesCN35
Size45 mm
Type / StyleType CN35 A202 Electrically Held Enclosed General Purpose
Documents
Applications
Commercial, Institutional Buildings, Structures, Lighting and Lighting Controls and Others, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factories - Lighting and Lighting Controls Applications
Warranty
1 year
Features
- Control power is applied continuously during operation
- Full line of snap-on accessories top and side mount auxiliary contacts, solid-state and pneumatic timers and so on
- Quiet operation
