Cutler-Hammer Series ECL03B1AAA

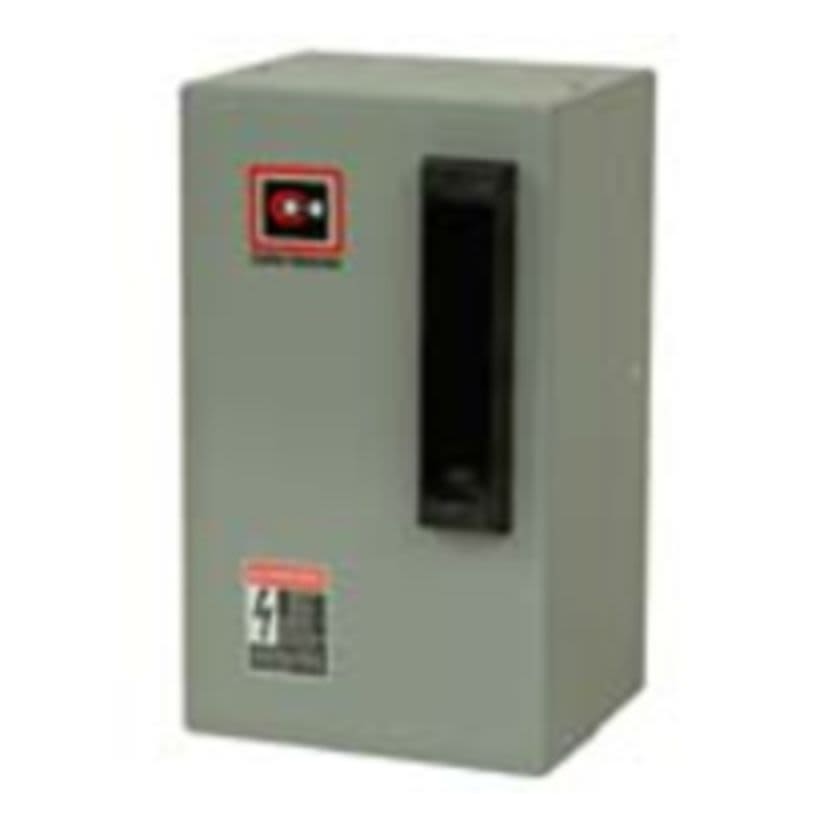

EATON ECL03B1AAA CN35 Non-Combination Electrically Held Lighting Contactor, 110/120 V AC V Coil, 20 A, 1NO Contact, 10 Poles
Cutler-Hammer Series ECL03B1AAA
EATON ECL03B1AAA CN35 Non-Combination Electrically Held Lighting Contactor, 110/120 V AC V Coil, 20 A, 1NO Contact, 10 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #ECL03B1AAA
Werner Part #24667
UPC782116139675
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #ECL03B1AAA
Werner Part #24667
UPC782116139675
Product Description
EATON Lighting Contactor, Non-Combination Electrically Held, Series: CN35, 110/120 V AC Coil, 20 A Maximum Load Current, 10 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 1 Auxiliary Contacts, 45 mm Size, NEMA 1 Enclosure, Gray, Polyester Urethane Powder Coated/Painted, 7.73 in L x 5.84 in W x 12.6 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Coil Voltage110/120 V AC
ColorGray
Contact Configuration1NO
Contact FormNon-Combination
Country of OriginUS
Dimensions7.73 in L x 5.84 in W x 12.6 in H
Enclosure TypeNEMA 1
FinishPolyester Urethane Powder Coated/Painted
Frequency Rating50/60 Hz
Full Load CurrentMax: 20 A
ManufacturerEaton
Maximum Load Current20 A
Number of Auxiliary Contacts1
Number of Poles10
Package TypeEACH
SeriesCN35
Size45 mm
Type / StyleType CN35 A202 Electrically Held Enclosed General Purpose
Documents
Applications
Commercial, Institutional Buildings, Structures, Lighting and Lighting Controls and Others, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factories - Lighting and Lighting Controls Applications
Warranty
1 year
Features
- Control power is applied continuously during operation
- Full line of snap-on accessories top and side mount auxiliary contacts, solid-state and pneumatic timers and so on
- Quiet operation
