Broan NuTone L300KMG

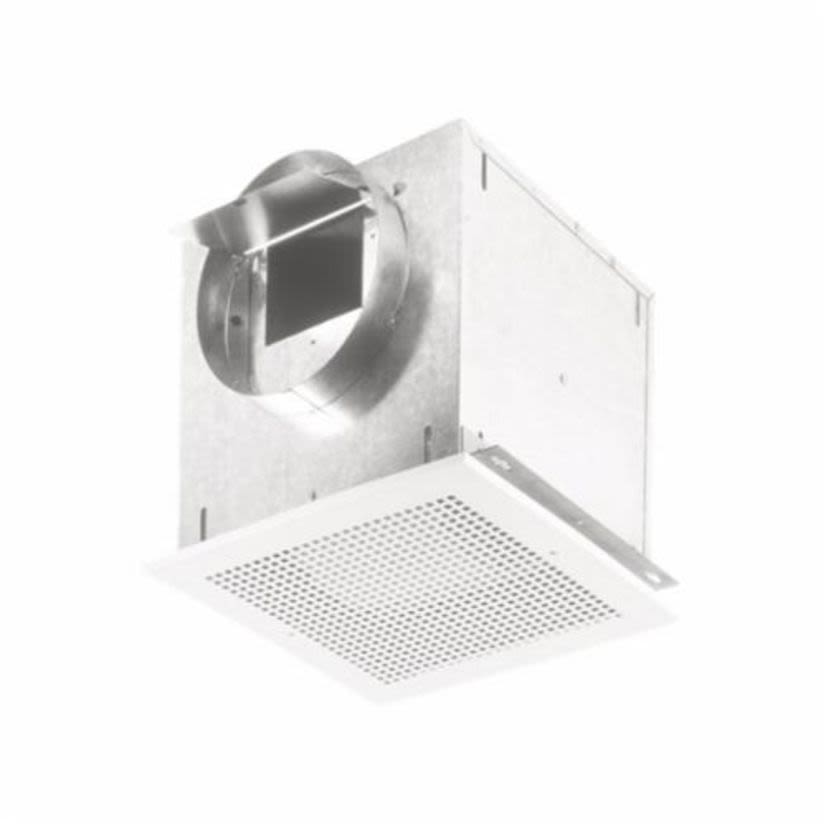

Broan LoSone Select L300KMG Straight Through Ceiling Exhaust Ventilator, 277 cfm Flow Rate, 120 V AC, 2.6 A
Broan NuTone L300KMG
Broan LoSone Select L300KMG Straight Through Ceiling Exhaust Ventilator, 277 cfm Flow Rate, 120 V AC, 2.6 ANon-stock product. Available to order - lead time may vary.
BrandBroan NuTone
MFG #L300KMG
Werner Part #1038488
UPC026715125197
Non-stock product. Available to order - lead time may vary.
BrandBroan NuTone
MFG #L300KMG
Werner Part #1038488
UPC026715125197
Product Description
Broan LoSone Select Ceiling Exhaust Ventilator, Straight Through, 277 cfm, 120 V AC, 2.6 A, 60 Hz Frequency, 12-1/4 in L x 12-1/4 in W x 11-3/4 in H Housing, 14 in L x 14 in W Grille, Metal Grille, Galvanized Steel Housing Material, 3.1/3.7 sones Sound Level, White
Attributes
Documents
Applications
Features
Attributes
Air Flow Rate277 cfm
ColorWhite
Country of OriginUS
Flow Rate277 cfm
Frequency Rating60 Hz
Grille MaterialMetal
Housing MaterialGalvanized Steel
ManufacturerBroan-NuTone
TypeStraight Through
Type / StyleStraight Through
Voltage Rating120 V AC
Documents
Applications
Conference, Commercial Buildings and Public Restroom
Features
- Resilient anti-vibration motor mounts
- Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance
- Low profile styling grille blends with any decor
- Rugged 20 ga galvanized steel housing with 0.5 in acoustic insulation inside
- 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connector
- May be installed as an in-line ventilator with addition of accessory kit model 981L, for controlling use model 57V (ivory)/57W (white) 3 A, electronic variable speed control or model 59V (ivory)/59W (white) 60 min time control or model 61V (ivory)/61W (white) 15 min time control or model 71V (ivory)/71W (white) 12 hr time control
- Suitable for kitchen installation
- Plug-in permanently lubricated thermally protected motor designed for continuous operation
- Low rpm for quiet operation blower
- 279 cfm at 0.1 in SP horizontal, 280 cfm at 0.1 in SP vertical
- 277 cfm at 1/8 in SP horizontal, 3.1 Sones, 277 cfm at 0.1 in SP at 1/8 in SP vertical, 3.7 Sones
- Round duct
- UL listed for use over bathtubs and showers when connected to a GFCI circuit
- Square shape grille
- 790 rpm horizontal, 815 rpm at 0.1 in SP vertical AC motor
- Reliable unbelievably quiet, offering the cfm choices you need at the lowest sound
- Low rpm motor for quiet operation with resilient anti-vibration mounts, dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance
- Permanently lubricated, plug-in, thermally protected motor designed for continuous operation, low profile styling grille conceals interior
- R8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connector
- Can be ducted horizontally or vertically with in-line ducting available with separate adapter
